WhisperKOOL Blow-Through 4000 – Ducted/Ductless (110V or 220V Condenser) Wine Cellar Cooling System
Descripción
Designed for wine walls, custom cabinetry, soffits, and concealed cellar installations, the WhisperKOOL Blow Through 4000 delivers powerful climate control while allowing the cooling equipment to remain discreetly integrated into the architecture. With cooling capacity suitable for properly constructed wine cellars up to approximately 1,000 cubic feet, it provides a flexible solution for residential and commercial wine storage projects where conventional wall mounted equipment may not be ideal.
The Blow Through 4000 can be configured for fully ducted, ductless, or hybrid airflow. A required airflow kit determines the installation configuration, while variable fan speeds, a built in condensate pump, dual side service access, and liquid temperature bottle probe help deliver precise performance and simplified servicing. The system can be paired with either the WhisperKOOL ΩMEGA 110V H.E. condenser or the Advanced 220V H.E. condenser.
Flexible concealed wine cellar cooling with up to 5,351 BTU/h of cooling capacity.
Additional Information

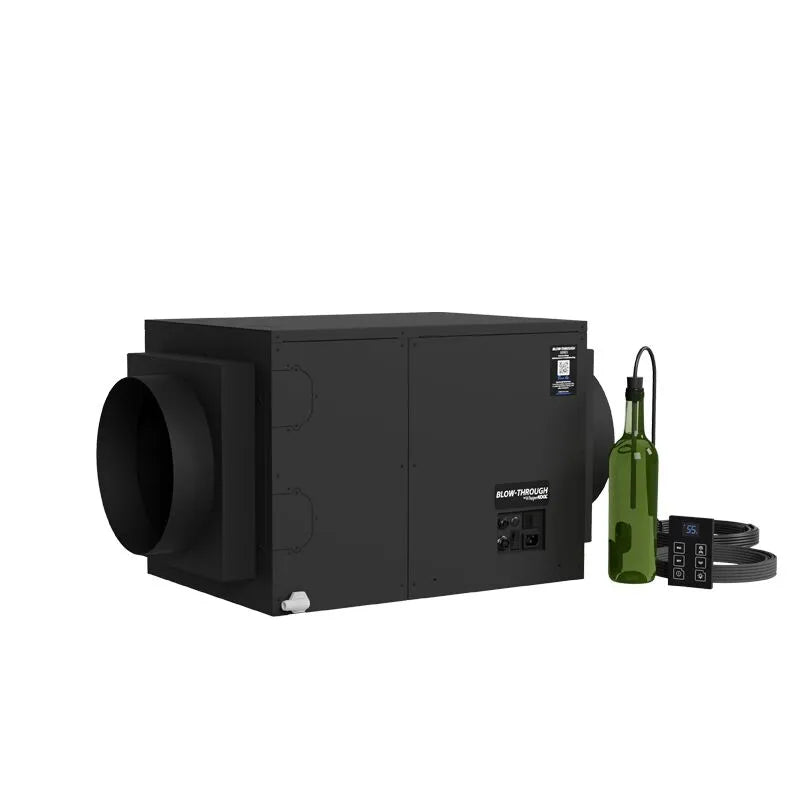

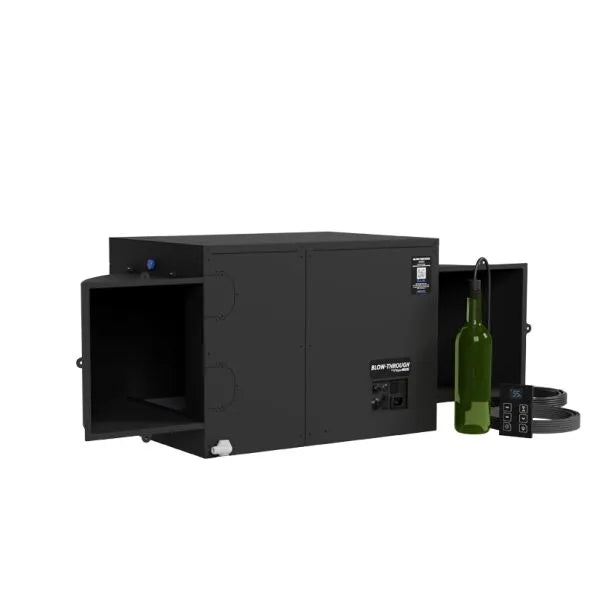

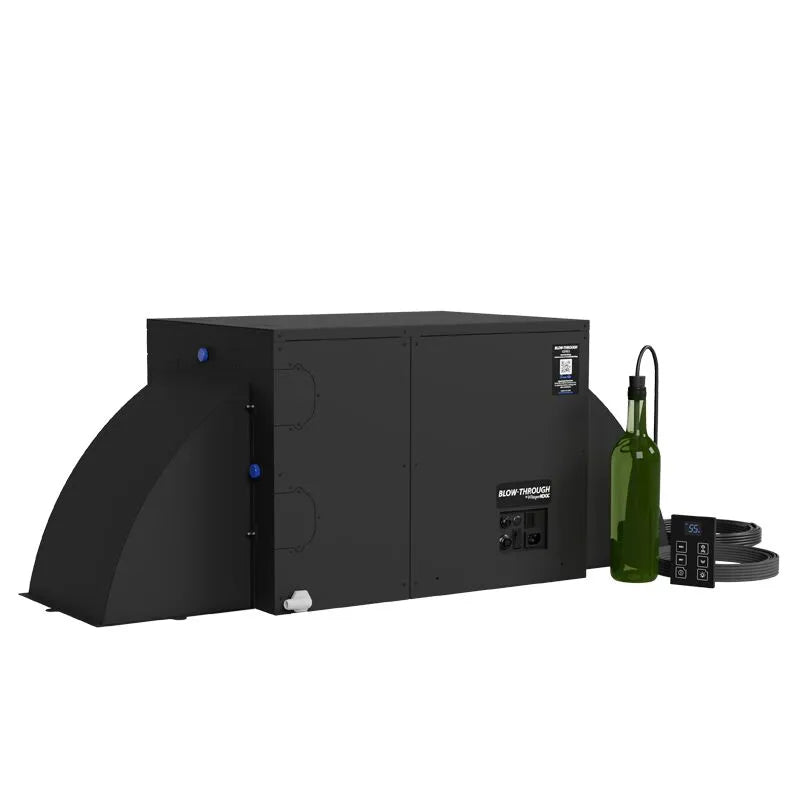

The Blow Through 4000 is engineered to adapt to demanding custom cellar layouts. The ductless configuration uses directional air deflectors to direct airflow left, right, or downward. Fully ducted installations use two 10 inch duct plenums, while the hybrid configuration combines one duct plenum with one air deflector. Duct runs of up to 25 feet are supported, allowing the evaporator to be concealed in soffits, cabinetry, attics, closets, or adjacent mechanical spaces
OMEGA 110 H.E. Condenser
The OMEGA 110 H.E. is the high efficiency condenser option for installations requiring 110V power. Remote placement helps remove compressor heat and operating noise from the cellar while supporting dependable split system cooling.
Advanced H.E. 220V Condenser
The new Advanced H.E. 220V condenser is engineered for improved efficiency, protection, quiet operation, and serviceability. Its wide ambient operating range supports dependable performance in temperatures from minus 20°F to 120°F, making it suitable for demanding indoor and outdoor installation environments.
A high efficiency rotary compressor works with a liquid line injector, cycling switch, compressor heater strap, and suction line accumulator to protect the system during high and low ambient conditions. A hydrophilic coated condenser coil provides added corrosion resistance in humid or challenging environments.
The compressor blanket and vibration isolation mounts help reduce operating noise and vibration. Built in high side and low side pressure gauges include pressure to temperature conversion scales, allowing technicians to quickly review refrigerant pressure and saturation temperature during charging, diagnostics, and system verification.
Flare fittings simplify installation and servicing, while the updated housing provides quick remove top access and a dedicated electrical compartment for more efficient maintenance and troubleshooting.
Advanced H.E. 220V Features
- High efficiency rotary compressor
- Ambient operating range from minus 20°F to 120°F
- Liquid line injector for high ambient protection
- Hydrophilic coil coating for corrosion resistance
- Cycling switch for automatic pressure regulation
- Suction line accumulator for compressor protection
- Compressor heater strap for cold ambient protection
- Compressor blanket for quieter operation
- Vibration isolation mounts
- Flare fittings for simplified installation and servicing
- Quick remove top access
- Dedicated electrical compartment
- High side and low side pressure gauges
- Integrated pressure to temperature conversion scales
TECHNICAL SPECS
- Wine cellar capacity up to approximately 1,000 cu. ft.
- BTU/h range from 3,848 to 5,351
- Ducted, ductless, or hybrid airflow configurations
- Required airflow configuration kit included as a selectable option
- 262 CFM low, 352 CFM medium, and 430 CFM high fan speeds
- Sound levels as low as 46 dBA depending on fan speed
- Built in condensate pump with 1/4 inch drain line
- Advanced digital controller with 50 foot cable
- Liquid temperature bottle probe with 50 foot cable
- Dual side service access

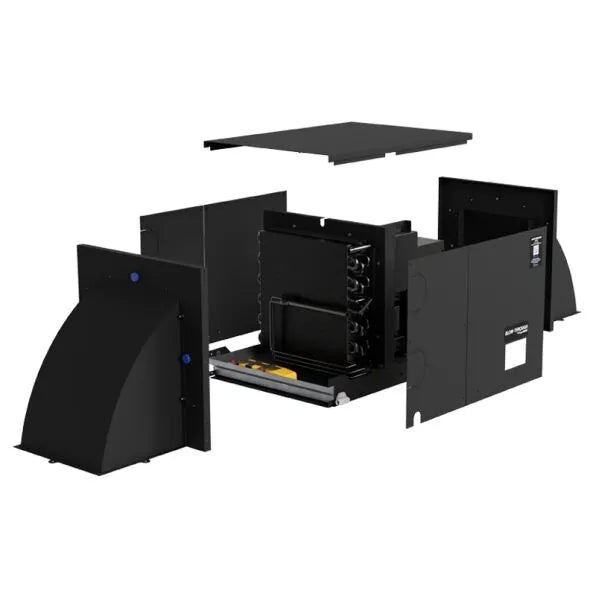

- Removable evaporator coil design
- ΩMEGA 110V H.E. or Advanced 220V H.E. condenser options
- Condenser placement up to 100 feet from the evaporator
- Ducted evaporator dimensions: 30.5 in L x 15.5 in W x 15.5 in H
- Ductless evaporator dimensions: 41.52 in L x 15.5 in W x 15.5 in H
- Hybrid evaporator dimensions: 36.01 in L x 15.5 in W x 15.5 in H
The ΩMEGA 110V H.E. condenser is designed for installations requiring standard voltage service and can operate in ambient temperatures from approximately minus 20°F to 110°F. The Advanced 220V H.E. condenser provides increased efficiency and quieter operation, with an operating range extending from approximately minus 20°F to 120°F
A qualified and licensed HVAC/R technician is required for installation. WhisperKOOL states that installation by an unqualified technician will void the warranty. Split systems include a limited two year product warranty with up to an additional one year grace period for installation, subject to WhisperKOOL warranty registration requirements.
WhisperKOOL specializes in purpose built climate control systems for residential and commercial wine cellars. The Blow Through Series was developed specifically for modern wine rooms where cooling performance needs to integrate discreetly with architectural details, cabinetry, and custom cellar designs.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Product Warranty for Split System Units
A limited 2-year product warranty with up to an additional(1) year grace period for installation is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOl
