WhisperKOOL Blow-Through 8000 – Ducted/Ductless (110V or 220V Condenser) Wine Cellar Cooling System

The WhisperKOOL Blow Through 8000 is a powerful split wine cellar cooling system designed for large custom wine cellars, wine rooms, wine walls, and commercial wine storage applications. Engineered for cellars up to approximately 2,000 cubic feet, it combines high capacity cooling with a compact evaporator that can be concealed within cabinetry, soffits, closets, mechanical spaces, or other architectural features.

Designed for maximum installation flexibility, the Blow Through 8000 supports ducted, ductless, and hybrid airflow configurations, allowing conditioned air to be directed around the specific layout of the wine cellar. The system pairs with either a WhisperKOOL ΩMEGA 110V H.E. condenser or Advanced 220V H.E. condenser, helping create a quiet and discreet wine cellar climate control solution for residential and commercial projects.

High capacity concealed wine cellar cooling for spaces up to approximately 2,000 cu. ft.

The WhisperKOOL Blow Through 8000 is designed for custom wine cellar projects where both cooling performance and aesthetics are important. Unlike a conventional wall mounted wine cellar cooling unit, the Blow Through evaporator can be integrated into soffits, built in cabinetry, wine walls, adjacent mechanical rooms, closets, and custom millwork, helping keep the cooling equipment out of sight while maintaining controlled wine storage conditions.

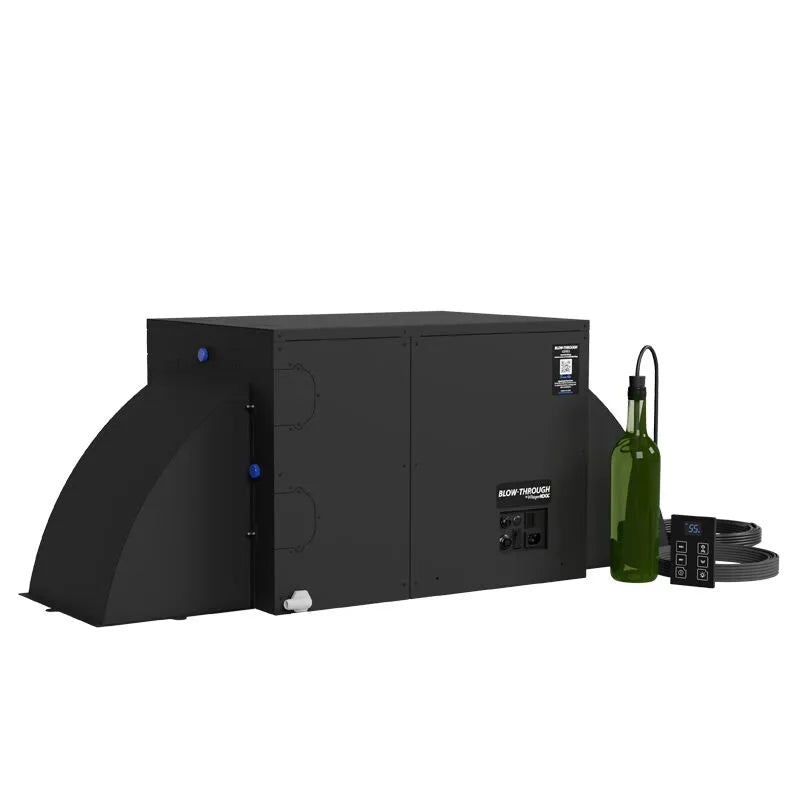

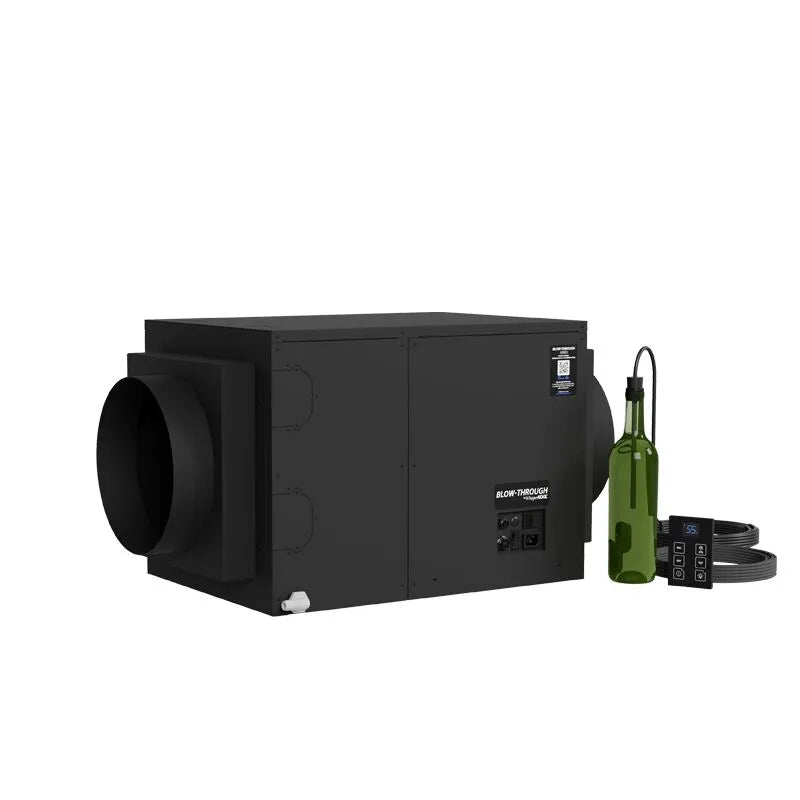

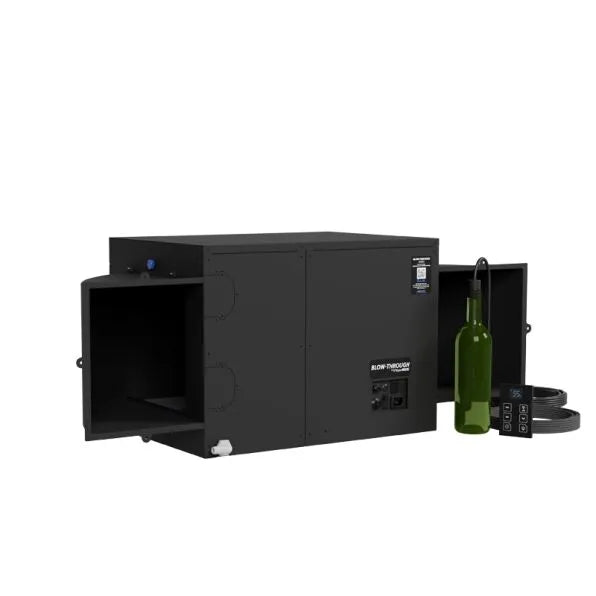

A required airflow configuration kit allows the system to be installed as a fully ducted wine cellar cooling system, a ductless wine cellar cooling system, or a hybrid configuration. Directional airflow deflectors can direct conditioned air left, right, or downward, while ducted applications can support runs up to 25 feet. WhisperKOOL offers multiple airflow configurations to accommodate complex cellar layouts and architectural designs.

OMEGA 110 H.E. Condenser

The OMEGA 110 H.E. is the high efficiency condenser option for installations requiring 110V power. Remote placement helps remove compressor heat and operating noise from the cellar while supporting dependable split system cooling.

Advanced H.E. 220V Condenser

The new Advanced H.E. 220V condenser is engineered for improved efficiency, protection, quiet operation, and serviceability. Its wide ambient operating range supports dependable performance in temperatures from minus 20°F to 120°F, making it suitable for demanding indoor and outdoor installation environments.

A high efficiency rotary compressor works with a liquid line injector, cycling switch, compressor heater strap, and suction line accumulator to protect the system during high and low ambient conditions. A hydrophilic coated condenser coil provides added corrosion resistance in humid or challenging environments.

The compressor blanket and vibration isolation mounts help reduce operating noise and vibration. Built in high side and low side pressure gauges include pressure to temperature conversion scales, allowing technicians to quickly review refrigerant pressure and saturation temperature during charging, diagnostics, and system verification.

Flare fittings simplify installation and servicing, while the updated housing provides quick remove top access and a dedicated electrical compartment for more efficient maintenance and troubleshooting.

Advanced H.E. 220V Features

• High efficiency rotary compressor
• Ambient operating range from minus 20°F to 120°F
• Liquid line injector for high ambient protection
• Hydrophilic coil coating for corrosion resistance
• Cycling switch for automatic pressure regulation
• Suction line accumulator for compressor protection
• Compressor heater strap for cold ambient protection
• Compressor blanket for quieter operation
• Vibration isolation mounts
• Flare fittings for simplified installation and servicing
• Quick remove top access
• Dedicated electrical compartment
• High side and low side pressure gauges
• Integrated pressure to temperature conversion scales

Key Features:

• Designed for properly constructed wine cellars up to approximately 2,000 cu. ft.
• Cooling performance up to 5,544 BTU/h depending on configuration and operating conditions
• Ducted, ductless, or hybrid wine cellar cooling configurations
• Ideal for wine walls, custom wine rooms, built in cabinetry, soffits, closets, and concealed cooling installations
• Compatible with WhisperKOOL ΩMEGA 110V H.E. and Advanced 220V H.E. condensers
• Variable speed airflow control for balancing cooling performance, airflow, and sound levels
• Quiet centrifugal blower operation designed for luxury residential and commercial wine cellar environments
• Built in condensate pump with overflow protection, stainless steel drip tray, antimicrobial condensate strip, and left or right drain connections
• KDT digital touch display with system alerts and alarm notifications
• Liquid temperature bottle probe for precise monitoring of wine storage conditions

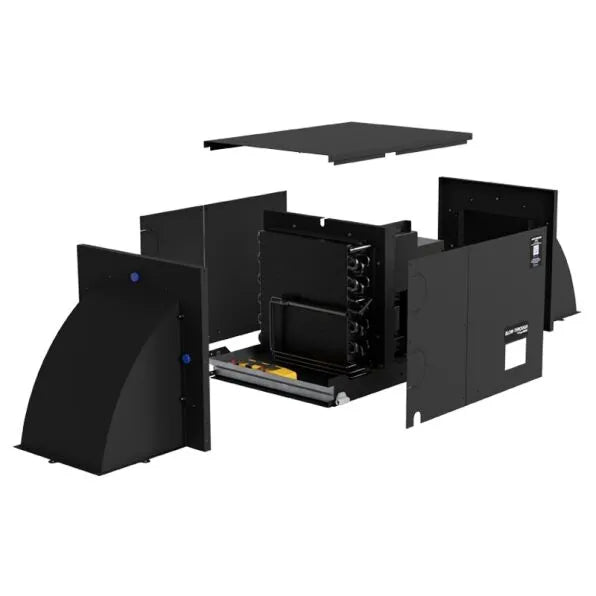

• Dual side service access and removable evaporator coil for easier maintenance
• Upward facing flare fittings help simplify refrigerant line routing and installation
• Condensing unit can be installed up to 100 feet from the evaporator, depending on system configuration and proper installation requirements
• Exterior insulation kit included for improved thermal performance in attic and high temperature installations
• Ducted evaporator dimensions are approximately 30.5 in L x 15.5 in W x 15.5 in H. Ductless and hybrid configurations increase the overall length depending on the selected airflow components.

The ΩMEGA 110V H.E. condenser provides a high efficiency option for projects where 110V service is preferred, while the Advanced 220V H.E. condenser is designed for enhanced efficiency, quieter operation, and demanding ambient conditions. WhisperKOOL lists the Advanced 220V H.E. condenser for operation in ambient temperatures from approximately minus 20°F to 120°F.

The system does not include the refrigerant line set. Proper sizing should always be confirmed through a wine cellar heat load calculation, particularly for glass wine cellars, wine walls, spaces with stone or concrete surfaces, or other applications with increased heat loads.

Installation must be completed by a qualified licensed HVAC/R technician. WhisperKOOL states that installation by an unqualified technician may void the warranty. Split systems are covered by a limited two year product warranty with up to an additional one year grace period for installation, subject to submission and approval of WhisperKOOL's Product Warranty Checklist.

WhisperKOOL specializes in purpose built wine cellar cooling systems engineered to maintain the controlled temperatures required for proper wine storage. The Blow Through Series expands these capabilities for contemporary wine cellar designs, giving homeowners, designers, builders, and cellar professionals greater freedom to conceal cooling equipment without compromising climate control or access for future servicing.
