WhisperKOOL 8000 Wall-Mounted Platinum Split Wine Cellar Cooling System

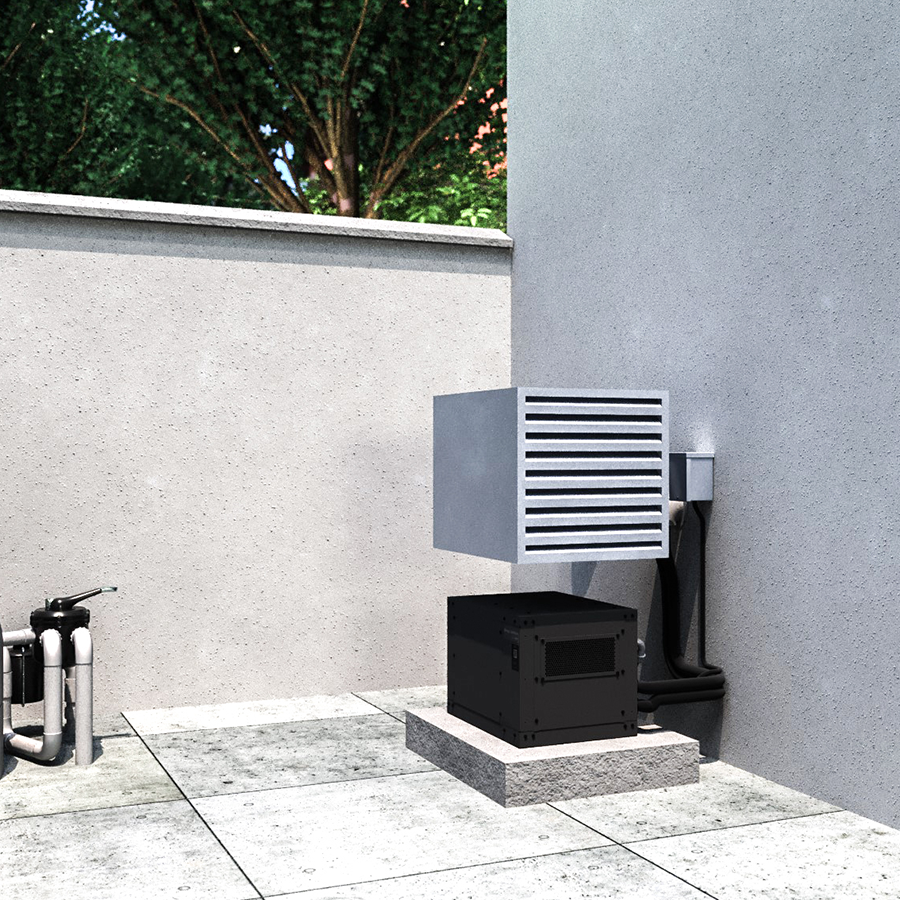

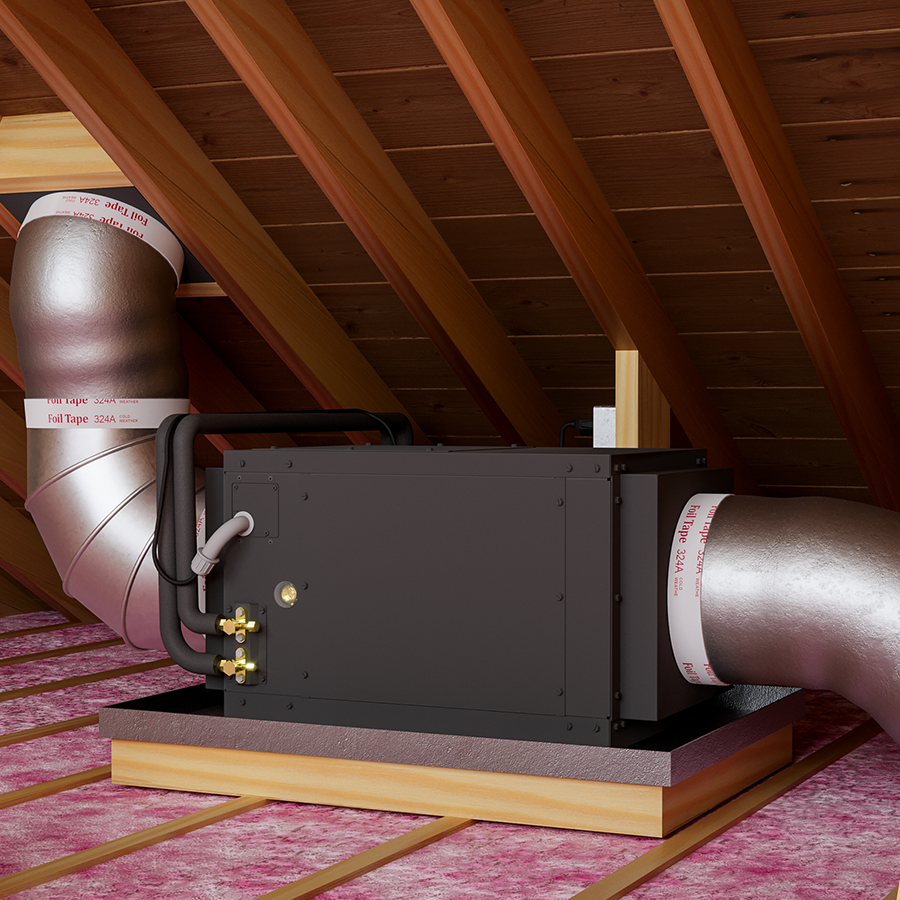

Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.

Designed & Assembled in California

Split Systems “split” the cooling system in two, with the evaporator inside the cellar and the condenser being placed nearby.  Placing the condenser in a remote location keeps the wine cellar quiet and vibration-free.

The Wall Mounted 8000 Platinum Split system can accommodate cellars up to 1750 cubic feet.

• Virtually silent operation
• Liquid bottle probe
• Humidity control
• Alarm options
• 55°F temperature delta

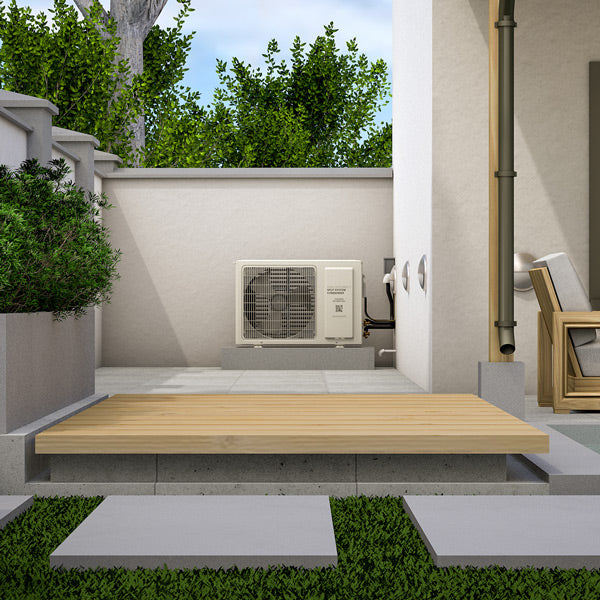

• 220V Condenser can be placed outdoors

Dimensions:

Evaporator: 20.5”W x 15.5”H x 20”D
Condenser: 12”W x 13.5”H x 18”D

Insulated Line Set:

1/2”Suction (5/8" if greater than 50ft)

1/4”Liquid

Drainline: 1/2” ID clear plastic tubing

Cellar Size: Approx. 1750 Cu.ft

The Split System does NOT come with its own line set.

If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.

24Volt

For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

Warranty Check List – R134a Products
Warranty Check List – R404a Products

Warranty Check List
Warranty

Please make sure you complete the warranty check list to ensure your warranty is active.

A limited 2-year product/5-year compressor warranty is offered with all split system cooling units at the date of purchase.
