W Series Wine Rack Frame Elbow (floor-to-ceiling wine rack component)
Description
W Series Wine Rack Post Elbow Bracket provides the finishing touch that lets a Helix Post create a true floating display even when floor-to-wall mounting is preferred over floor-to-ceiling. By forming a clean 90-degree bend and accepting an optional bridge post, the Elbow Bracket allows the column to stand up to 12 inches (30 cm) off the wall, maintaining the sculptural look of the Helix system without relying on a ceiling connection.
Whether you’re situating a wine column in front of tile, glass, or stone—or you simply love the aesthetics of a frame hovering in space—this component delivers the versatility designers demand. Pair it with a cut section of post when you have enough “drop,” or add a separate Bridge Post and Hidden Bracket to reach your desired stand-off distance.
Additional Information
W Series Wine Rack Post Elbow Bracket is sold individually and fabricated from the same high-grade steel as the Helix Post, ensuring a perfect finish and structural continuity. For installations where the remaining post drop is longer than or equal to the desired wall offset, a single Elbow is all that’s required; attach the Elbow to that drop and use its welded plate to secure to the wall. If you need more clearance, choose an Elbow plus a custom Bridge Post and Hidden Bracket to span the full 12 inch (30 cm) stand-off. All hardware ships with the bracket, and detailed instructions make it easy for contractors or DIYers to integrate the component into any Helix Wine Rack Post layout.
Key Features
- Enables floor-to-wall mounting with up to 12″ (30 cm) offset
- Works with existing post drop or optional Bridge Post for exact spacing
- Matches Helix finish and geometry for seamless visual flow
- Ideal for installations in front of glass, tile, or other no-drill surfaces
- Simple bolt-on integration; all mounting hardware included
Specifications
- Dimensions (Elbow): 3.5″ W × 1.5″ H × 3.5″ D (9 cm × 4 cm × 9 cm)
- Material: Powder-coated or plated steel (finishes match Helix Post)
- Compatible System: Helix Wine Rack Post
- Wall Offset Range: 0 – 12″ (0 – 30 cm) depending on Bridge Post length
- Kit Contents: 1 Elbow Bracket, mounting screws/bolts, installation guide
- Warranty: Manufacturer’s lifetime warranty on structural components
In the box

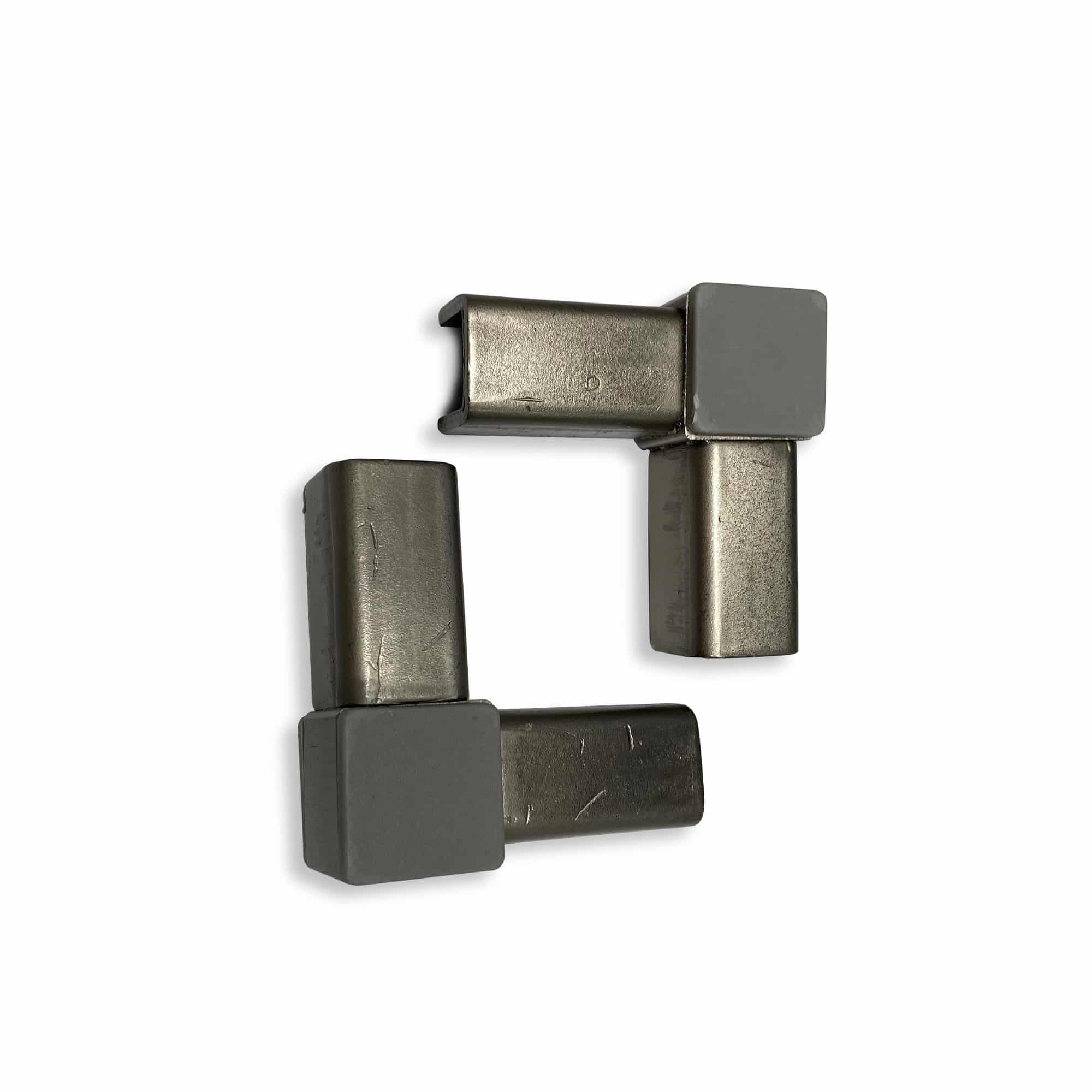

Comes complete with two (2) W Series Frame Elbows, BILT 3D installation instructions, and self-drilling metal screws to assemble to Frame.
floor to...
The innovative accessory opens up the possibilities for floor-to-wall, ceiling, and even wall-to-wall installations.
sleek finish

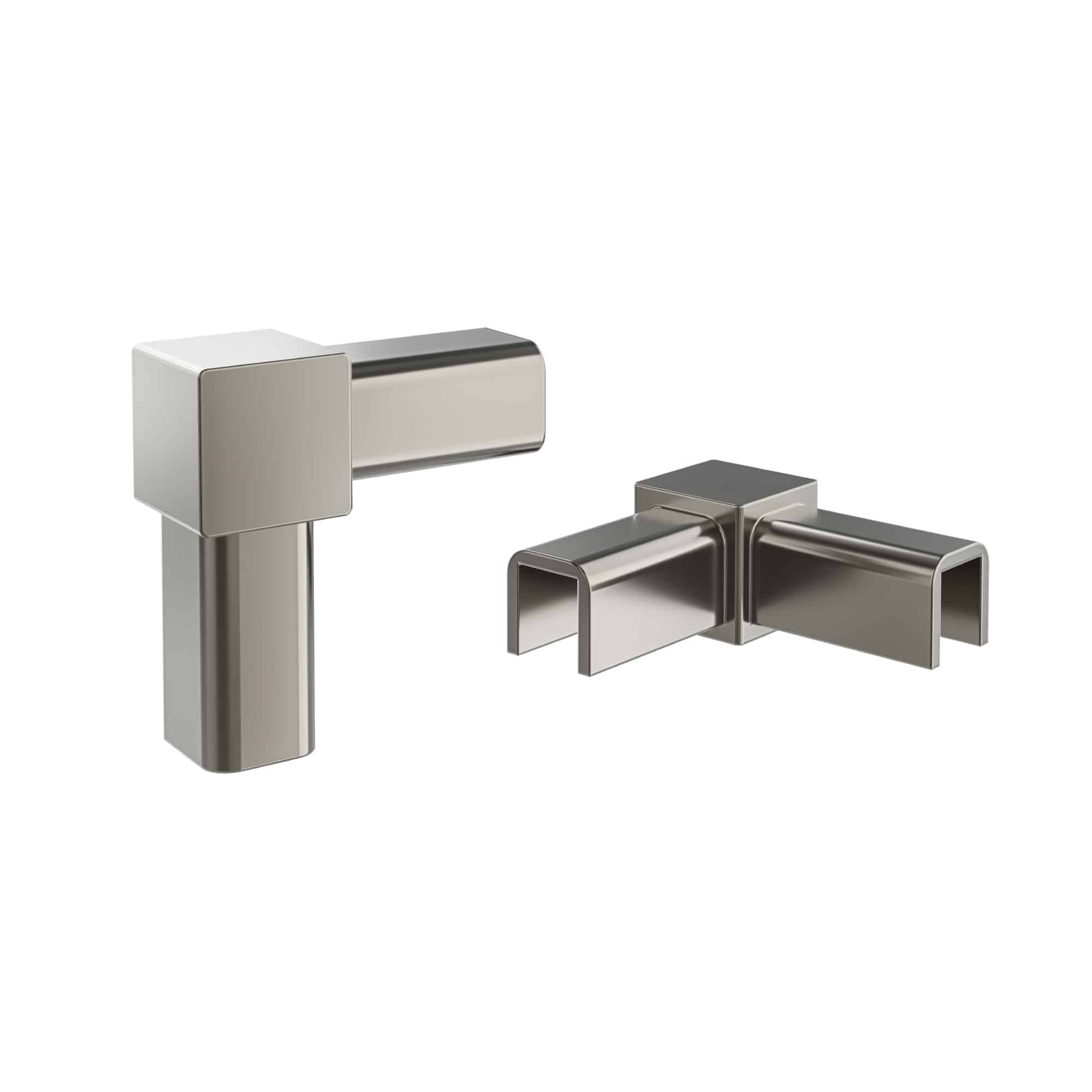

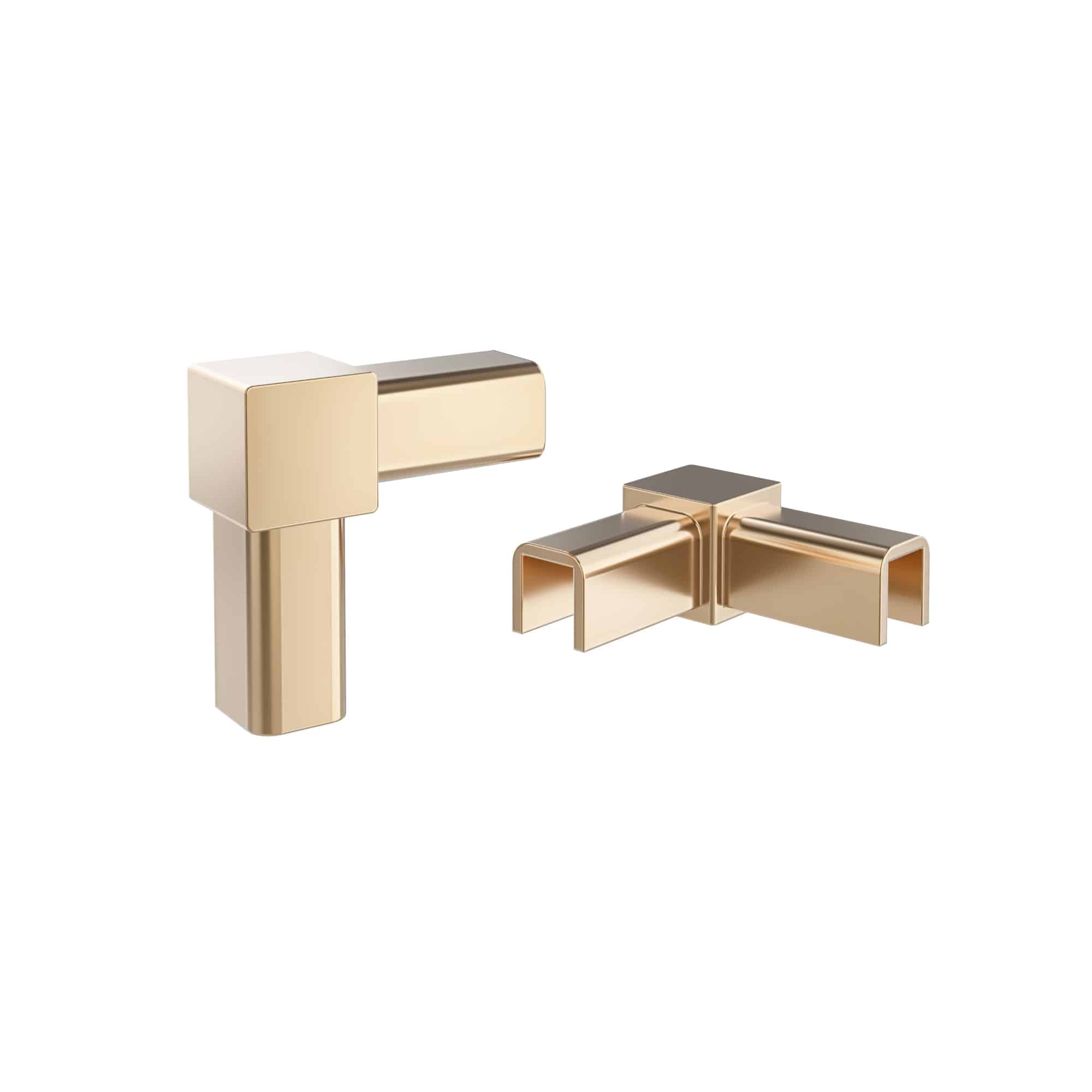

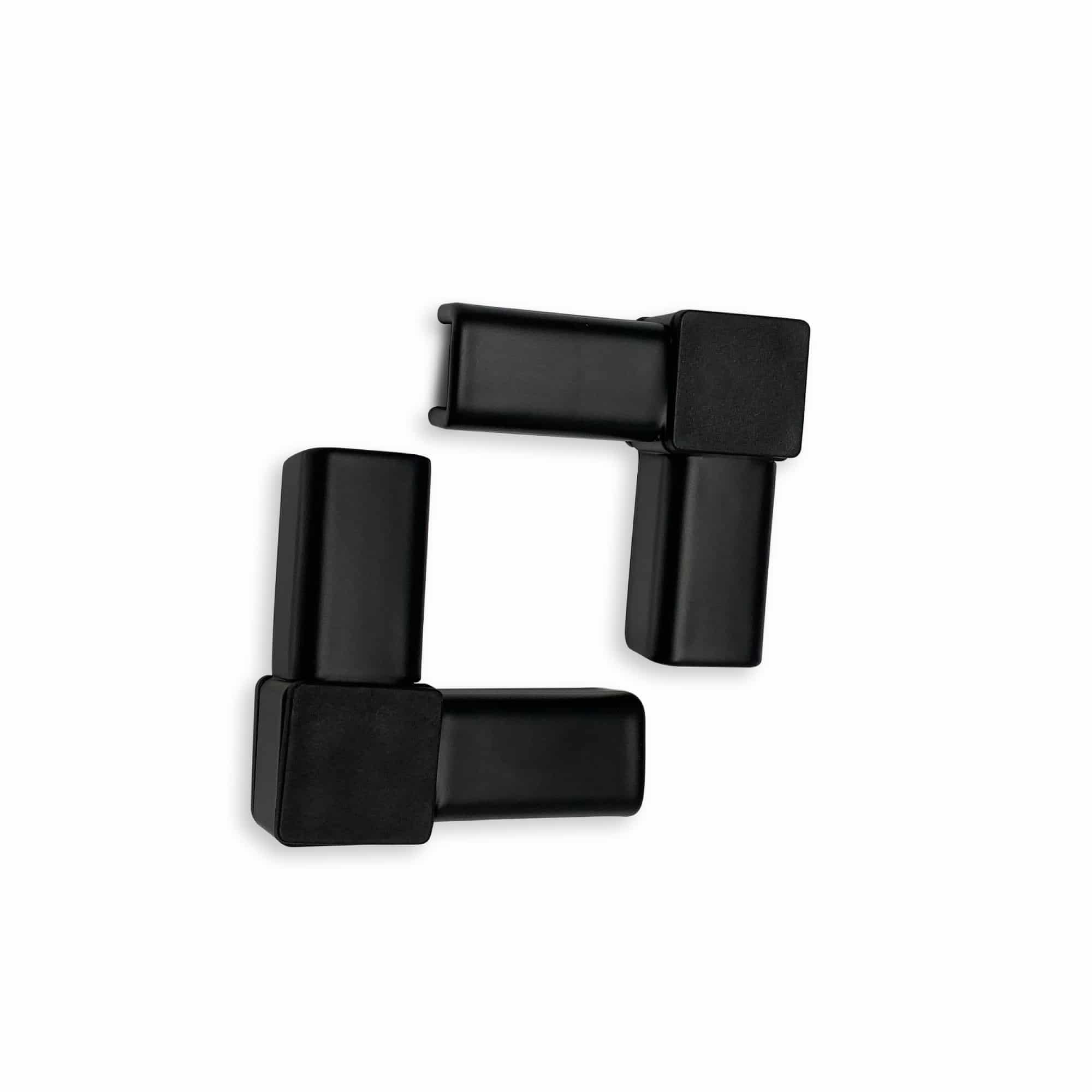

Built with high-quality steel, backed by a lifetime warranty, and offered with a choice of matte black, brushed nickel, chrome luxe, golden bronze luxe, or gunmetal luxe finishes.
