The Wall Mounted 8000 Platinum Split system can accommodate cellars approx. 1750 cubic feet.
- Virtually silent operation

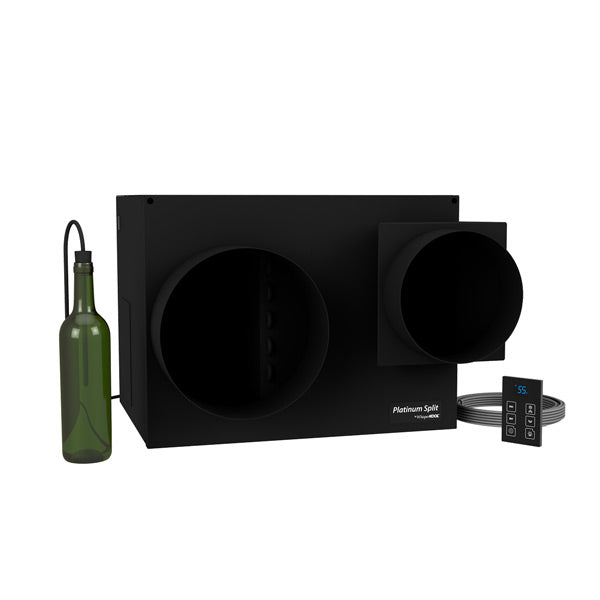

- Liquid bottle probe
- Humidity control
- Alarm options
- 55°F temperature delta

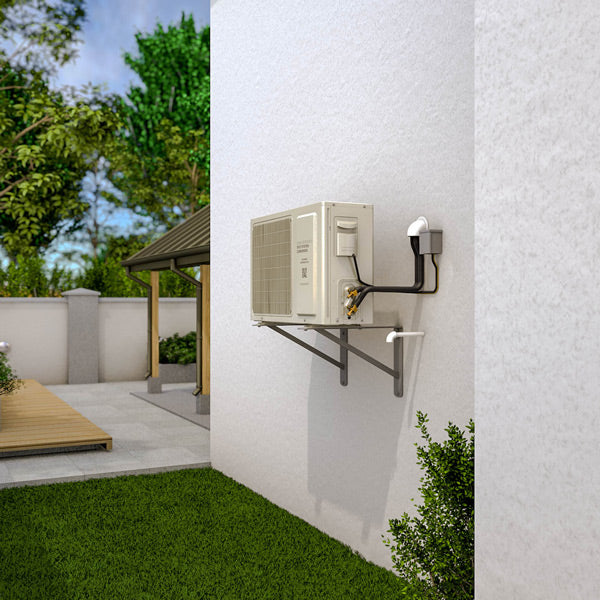

- 220V Condenser can be placed outdoors

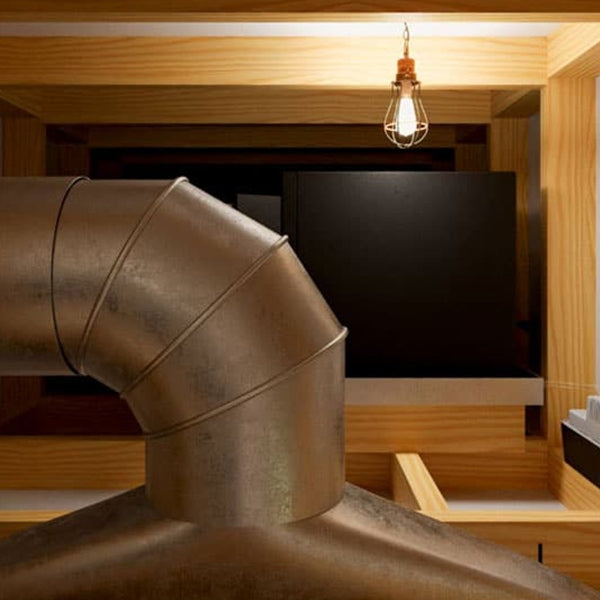

A Ducted Split system has more installation options than a self-contained system. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar and the heat exhaust ducted to the outside of the home. Ducting is also a more aesthetic choice for wine collectors who do not want to see a cooling unit in the cellar. Noise from the unit will be reduced or eliminated, depending on the installation.
Designed & Assembled in California
Additional Information
Ducted Split Systems split the cooling system in two, where the condenser can be placed in a space better suited for heat and noise dissipation and the evaporator is ducted nearby the cellar. This keeps the wine cellar quiet and vibration-free.
Dimensions:

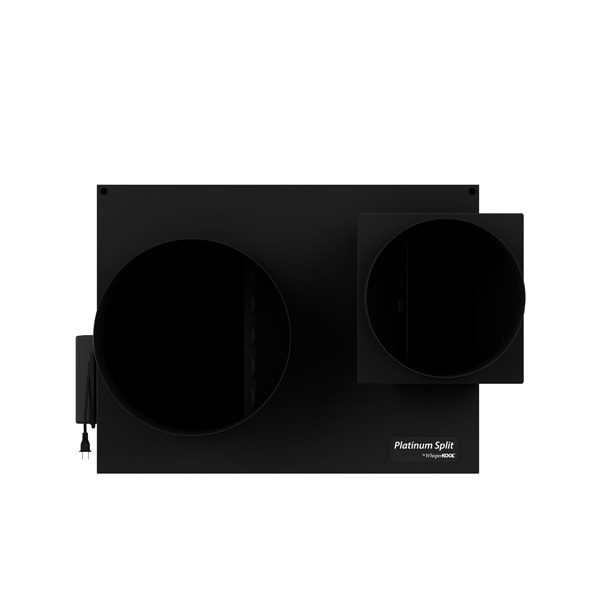

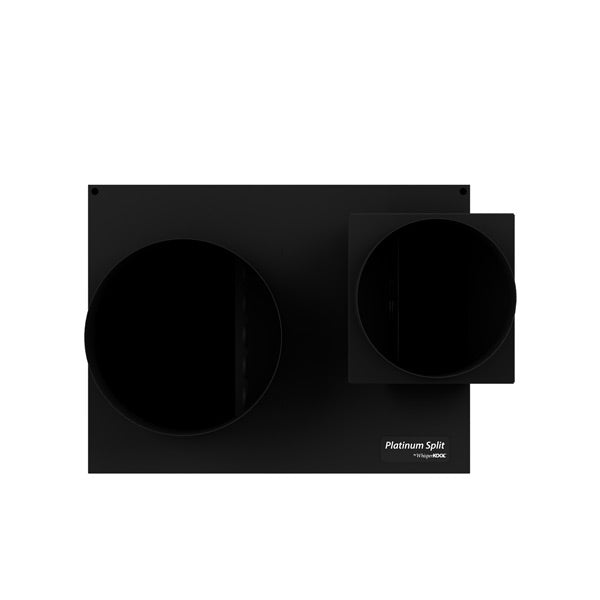

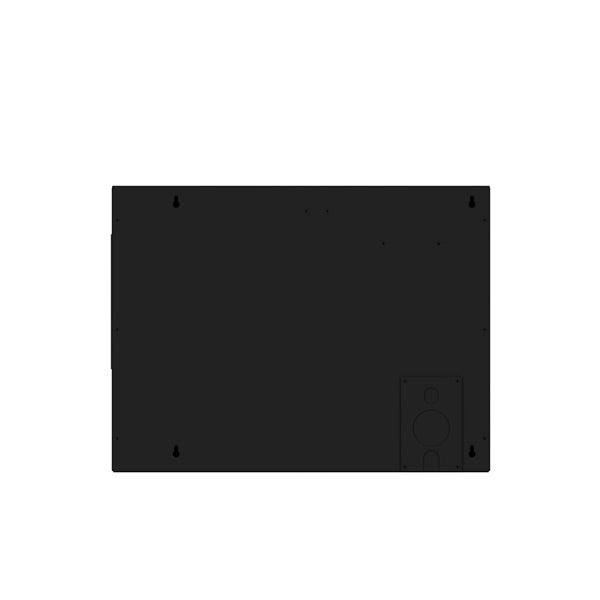

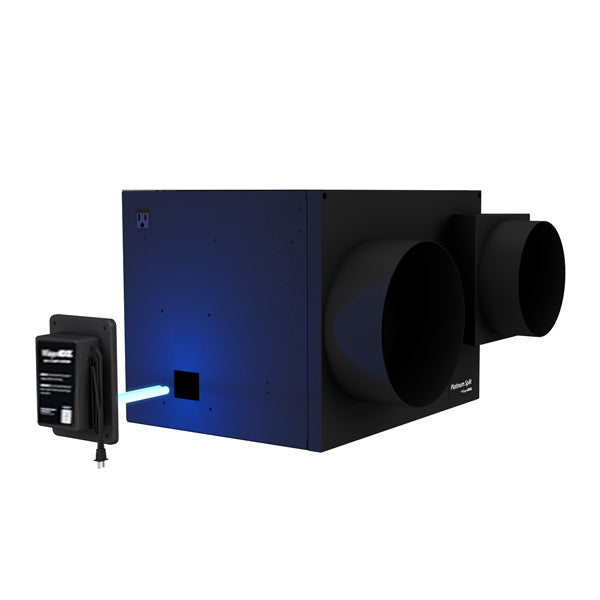

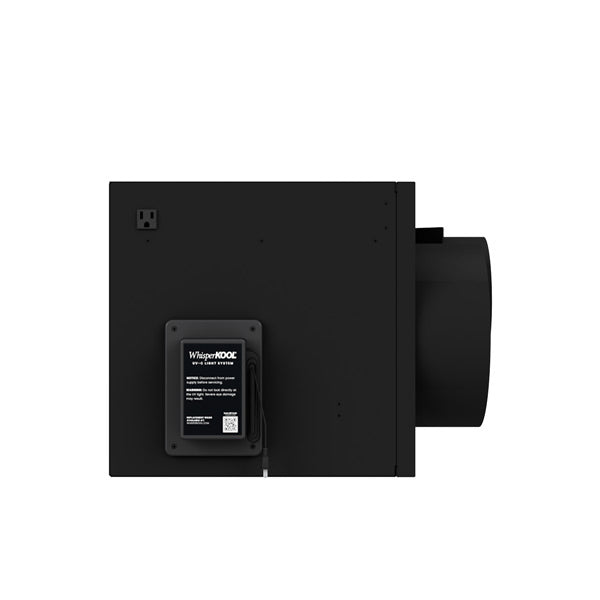

Evaporator: 20.5”W x 15.5”H x 20”D
Condenser: 12”W x 13.5”H x 18”D
Insulated Line Set:
1/2”Suction (5/8" if greater than 50ft)
1/4”Liquid
Drainline: 1/2” ID clear plastic tubing
Cellar Size: Approx. 1750 Cu.Ft
The Split System does NOT come with its own line set.
Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.
24Volt
For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Technical Specs
Product Manuals
Mini Ceiling Mount Split – 220V Overview
Mini Ceiling Mount Split – Owners Manual
Mini Platinum Split 220V owners manual
Ceiling Mount 4000/8000 – 220V
Ceiling Mount 4000/8000 - Owners Manual
Platinum Split 4000/8000 220V Owners Manual
Platinum Twin 220V Owners Manual
Ceiling Mount 220V Condenser Product Sheet
Warranty
Warranty Check List – R134a Products
Warranty Check List – R404a Products
Please make sure you complete the warranty check list to ensure your warranty is active.
A limited 2-year product/5-year compressor warranty is offered with all split system cooling units at the date of purchase.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
