Breezaire WKL2200 Wine Cellar Cooling System
Description
The Breezaire WKL2200 wine cellar cooling unit can be installed in an opening in a wall, for a through the wall application.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
If you would like racking as well, we will be happy to customize a design and obtain a shipping quote for your entire order to go to Racking Pages.
* IMPORTANT * Manufacturer only honors warranty in the USA only. Canadian purchases do not have warranty and units are purchases as-is.
Additional Information

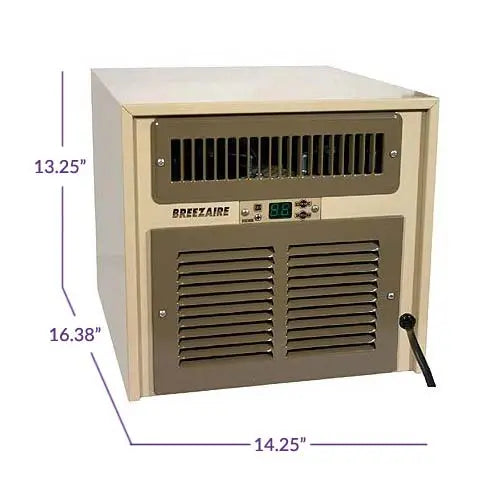

Dimensions (inches):14.25W x 13.25H x 16.38D
Thermal Capacity (BTU): 1000-2000
Maximum Cubic Footage: 265 cubic feet
Electrical Req: 115V/4 amps amps
Color: Tan
The Breezaire WKL series of wine cellar cooling units features a cool green LED digital display with is large and easy to read can be set between 48° - 63°. Temperature controlled by air sensors or the optional bottle probe.
The Cold Air UP inside the cellar is an option with some of the Breezaire WKL cooling units – this may be needed if the Evaporator within the cellar needs to be positioned lower down, closer to the floor.
For the WKL3000, WKL4000, WKL6000 & WKL8000 – you simply need re-position a cover plate on site to allow for the cold air to be directed upwards. If you require the Cold Air UP for the WKL2200, there is an additional charge, as this needs to be adjusted at the factory.
MODEL COMPARISON CHART
| BREEZAIRE WKL SERIES MODEL COMPARISON CHART | ||||||
|---|---|---|---|---|---|---|
| Model: | WKL1060 | WKL2200 | WKL3000 | WKL4000 | ||
| Dimensions (inches): | 14.25W x 13.25H x 16.38D | 14.25W x 13.25H x 16.38D | 14.25W x 19.75H x 21.63D | 14.25W x 19.75H x 21.63D | ||
| Thermal Capacity (BTU) | 1060 | 2200 | 3000 | 4000 | ||
| Estimated Max. Bottle Capacity | 800 | 1000 | 3000 | 4000 | ||
| Max. Cubic Footage | 160 | 265 | 650 | 1000 | ||
| Electrical Req: | 115V/2.8 amps | 115V/5amps | 115V/7.5amps | 115V/8.5amps | ||
| Color: | Tan | Tan | Tan | Tan | ||
| Weight: | 43 lbs. | 49 lbs. | 69 lbs. | 70 lbs. | ||
A dedicated 15 amp circuit (units up to 4000 BTUs) or 20 amp circuit (units from 6000-8000 BTUs) is strongly recommended.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Breezaire offers a warranty in the USA only. All parts used in this unit are warranted for Five years (60 months) from the original retail purchase. Factory labor is provided at no cost for one year (12 months) from the original retail purchase.
