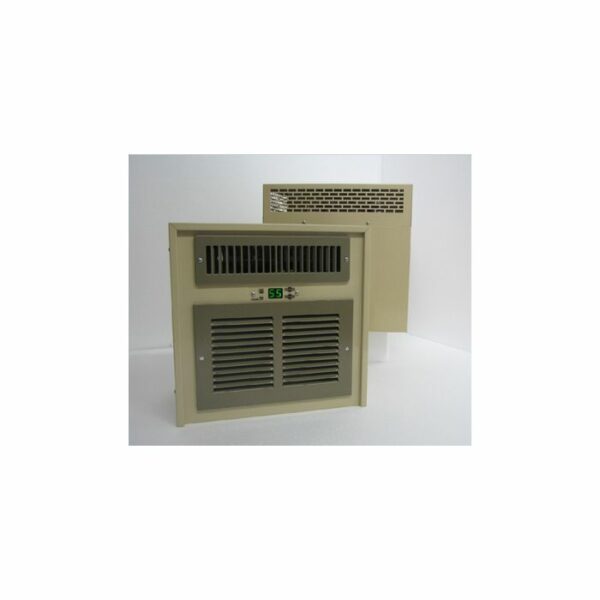

Breezaire WKSL 2200 Wine Cellar Cooling System
Description
The Breezaire WKSL 2200 wine cellar cooling unit can be installed in an opening in a wall, for a through the wall application.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Additional Information
If you would like racking as well, we will be happy to customize a design and obtain a shipping quote for your entire order to go to Racking Pages.
* IMPORTANT * Manufacturer only honors warranty in the USA only. Canadian purchases do not have warranty and units are purchases as-is.
Features:
- Evaporator: 14.25W x 14.125H x 7.750D
- Condenser: 14.25W x 14.125H x 11.00D
- Thermal Capacity (BTU): 2200
- Estimated Max. Bottle Capacity: 1000
- Electrical Req - Evaporator: 115V/1 amp
- Electrical Req - Condenser: 115V/6 amps
- Also available in 230V/ 50Hz/ 2Phase, please inquire.
- Color: Tan
WKSL Series wine cellar cooling systems are a simple split system design that are extremely easy to install by a qualified air conditioning or refrigeration service technician. A mechanical line set - basically two copper tubes - connect the two modules. Both units are hard wired - 110 AC volt electrical source. These cooling units arrive uncharged and must be charged with refrigerant during the installation process.
The Cold Air UP inside the cellar is an available option when the Evaporator within the cellar needs to be positioned lower down, closer to the floor. To make this modification, you simply need re-position a cover plate on site to allow for the cold air to be directed upwards.

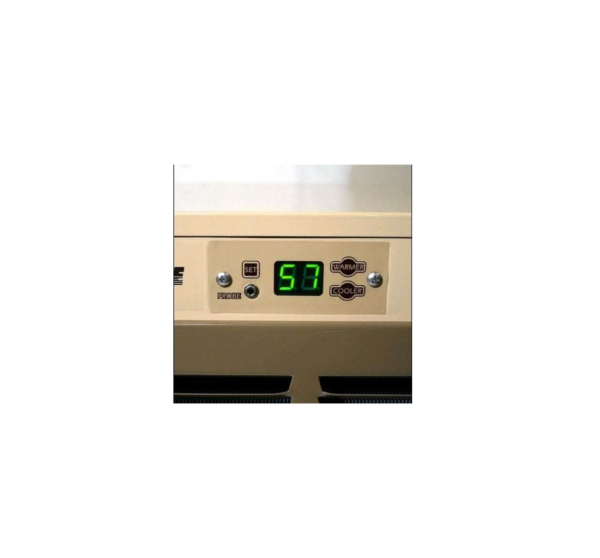

The L series now allows for digital display on your split system.
IMPORTANT INSTALLATION INFORMATION - The WKSL4000 can now have a maximum of 50ft of line set (previously the earlier versions of the WKS4000 allowed for 100ft).
The WKSL2200 & WKSL4000 are also available in 230V/ 50Hz/ 2Phase, please inquire about the WKSL2150 & WKSL3350.
TECHNICAL SPECS
| BREEZAIRE WKS SERIES MODEL COMPARISON CHART | ||||||
|---|---|---|---|---|---|---|
| Model: | WKSL 2200 | WKSL 4000 | ||||
| Dimensions (inches): Evaporator | 22.00W x 11.00H x 8.00D | 14.25W x 19.75H x 12.38D | ||||
| Dimensions (inches): Condenser: | 14.00W x 10.00H x 12.00D | 14.25W x 19.75H x 12.38D | ||||
| Thermal Capacity (BTU) | 2200 | 4000 | ||||
| Estimated Max. Bottle Capacity | 1000 | 4000 | ||||
| Max. Cubic Ft. Cooling | Up to 265 cubic feet | Up to 1000 cubic feet | ||||
| Electrical Req - Evaporator: | 115V/1 amp | 115V/1.5 amp | ||||
| Electrical Req - Condenser: | 115V/6 amps | 115V/7.5 amps | ||||
| Color | Tan | Tan | ||||
| Weight - Evaporator: | 35 lbs. | 45 lbs. | ||||
| Weight - Condenser | 45 lbs. | 55 lbs. | ||||
A dedicated 15 amp circuit (units up to 4000 BTUs) or 20 amp circuit (units from 6000-8000 BTUs) is strongly recommended.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Breezaire offers a warranty in the USA only. All parts used in this unit are warranted for Five years (60 months) from the original retail purchase. Factory labor is provided at no cost for one year (12 months) from the original retail purchase.
