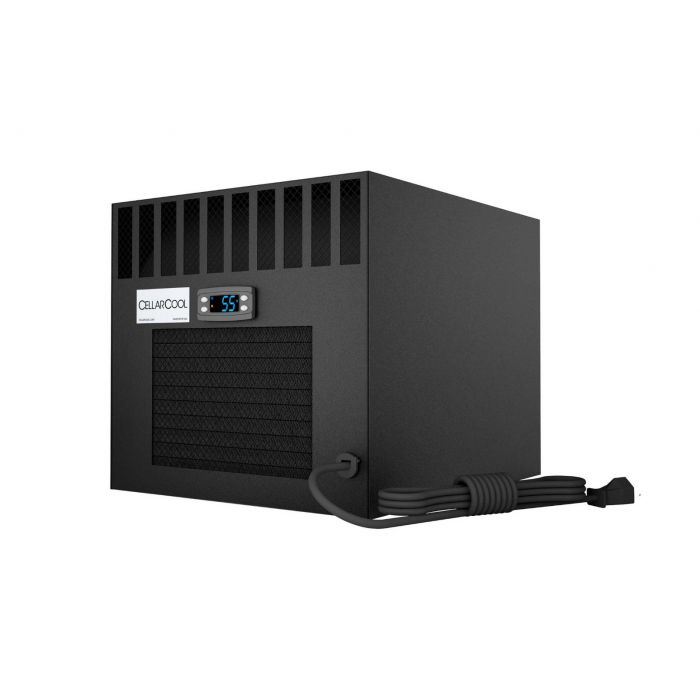

CellarCool CX2200 Through-the-wall Wine Cellar Cooling System
Description
The CX2200 is a compact, American-made through-the-wall cooling unit designed to cool wine cellars up to 265 cubic feet. With dynamic airflow and precision temperature control, it delivers reliable performance in small to mid-sized cellar installations. Its space-saving design fits into the same opening as popular units like Breezaire WKL and Wine-Mate HZD, making it an ideal replacement or upgrade.
Additional Information
Equipped with System Safety Management (SSM), anti-frost functionality, and a digital controller, the CX2200 ensures optimal storage conditions with minimal maintenance. This unit includes a visible rear drain line, which is positioned on the warm side of the cellar and may be visible from the adjoining room.
Key Features:
- Designed for cellars up to 265 cu. ft.
- Dimensions: 16.38" D x 14.25" W x 13.25" H
- Weight: 55 lbs
- Running Amps: 4.5
- 3/8" rear-positioned condensate drain line
- Digital controller with SSM and anti-frost protection
- Mounting brackets included for through-the-wall installation
- Heat exchange condensate management system
- Internal or external power cord configuration (specify when ordering)
- Vibration-free, low-maintenance operation
- 30°F temperature variance – best in class
- Made in the USA
TECHNICAL SPECS
|
Model |
2200 |
3300 |
4400 |
8800 |
|
Cellar Size |
300 |
650 |
1000 |
1500 |
|
BTUh (w/85°F air entering the condenser coil) |
1453 |
2049 |
2253 |
4241 |
|
Dimensions |
16.38"D x 14.25"W x 13.25"H (CX2200) 21.63"D x 14.25"W x 19.75"H (CX3300 and CX4400) |
16.25”W x 22”H x 22.25”D |
||
|
Refrigerant |
R-134a |
R-134a |
R-134a |
R-134a |
|
HP |
1/8 |
1/6 |
1/6+ |
1/2 |
|
Voltage Rating |
115V (20 amp dedicated circuit required) |
115V (20 amp dedicated circuit required) |
||
|
Weight (lbs) |
65 |
104 |
||
|
AMPS |
4.5 (running amps) |
4.9 (running amps) |
9 (running amps) |
10 (running amps) |
|
Drainline |
1/2” ID clear plastic tubing |
|||
|
Installation |
Through-the-Wall, Partially Ducted |
|||
|
Thermostat |
Advanced digital display, liquid-temperature-measuring bottle probe (retractable cable) |
|||
|
Temp. Delta |
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature |
|||
|
Ducting Options |
Exhaust air can be ducted using the optional ducting kit |
|||
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Warranty: Two year parts and labor / 5 year on compressor. Please see owner's manual Pages 26-28 for full details on warranty coverage.
