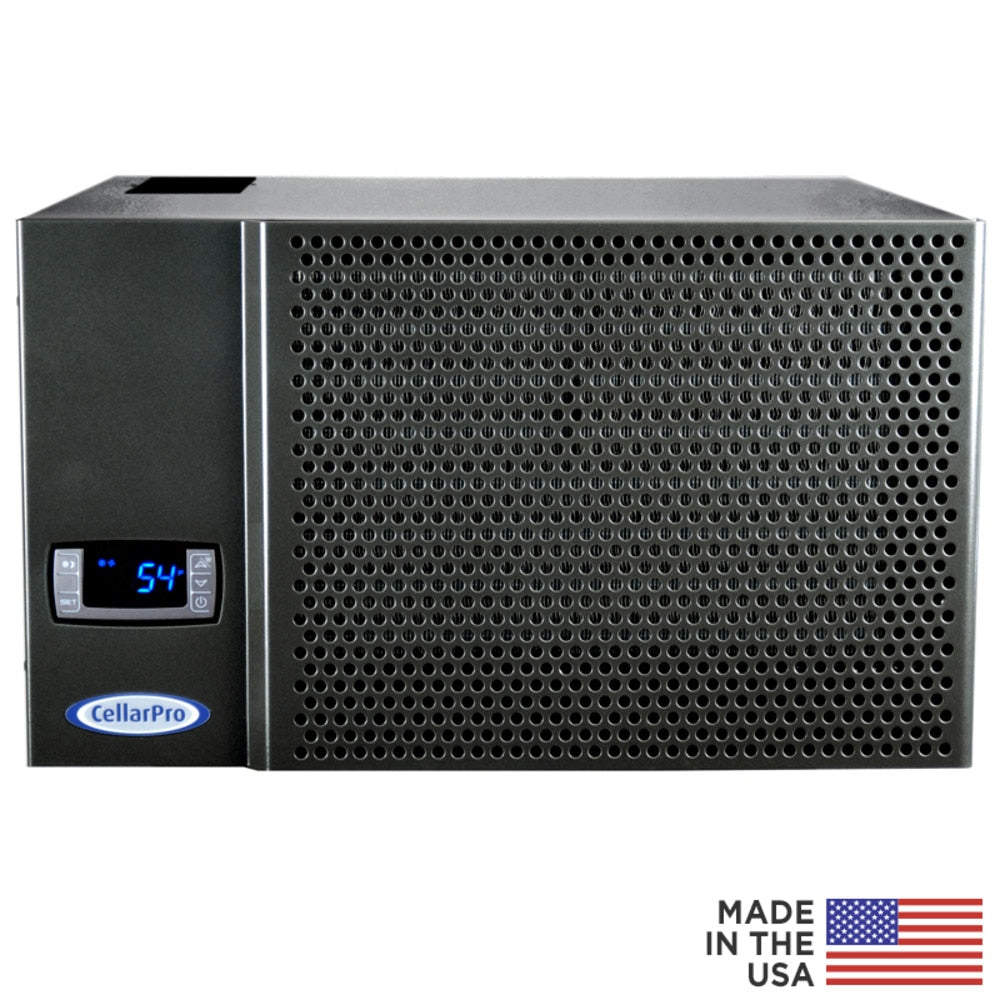

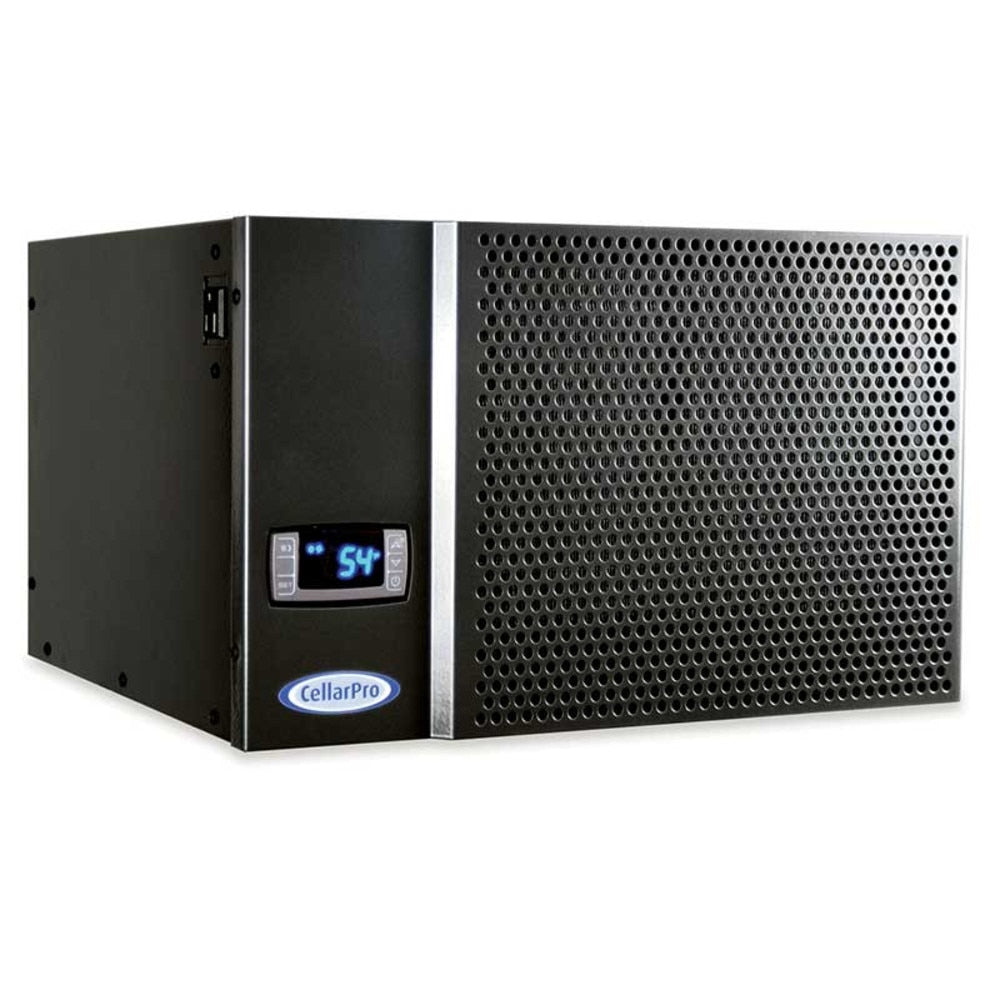

CellarPro 1800QT Wine Cellar Cooling Unit

CellarPro engineered the 1800QT-ECX cooling unit to provide powerful cooling capacity with moderate noise levels to be used in large wine cabinets that are located near common living areas. 1800QT-ECX units are louder than CellarPro 1800QTL-ECX units, but also 30% more powerful.

Dimensions:

18w x 16 1/2d x 10 1/2h (in)

Ultra-Quiet Operation (< 50 dBA)

Designed for wine cellars up to 150 cu ft (min. R-19)


Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

1380 SENSIBLE BTUH @ 55F.
CellarPro's 1800QT-ECX wine cooling units (1/6 Ton Nominal) were engineered to provide outstanding performance and adjustable humidity control for very small wine cellars and larger wine cabinets.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

The cooling unit plugs into a standard wall outlet. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. We recommend using a surge protector rated at 15 amps or more.

• Weight: 67 lbs

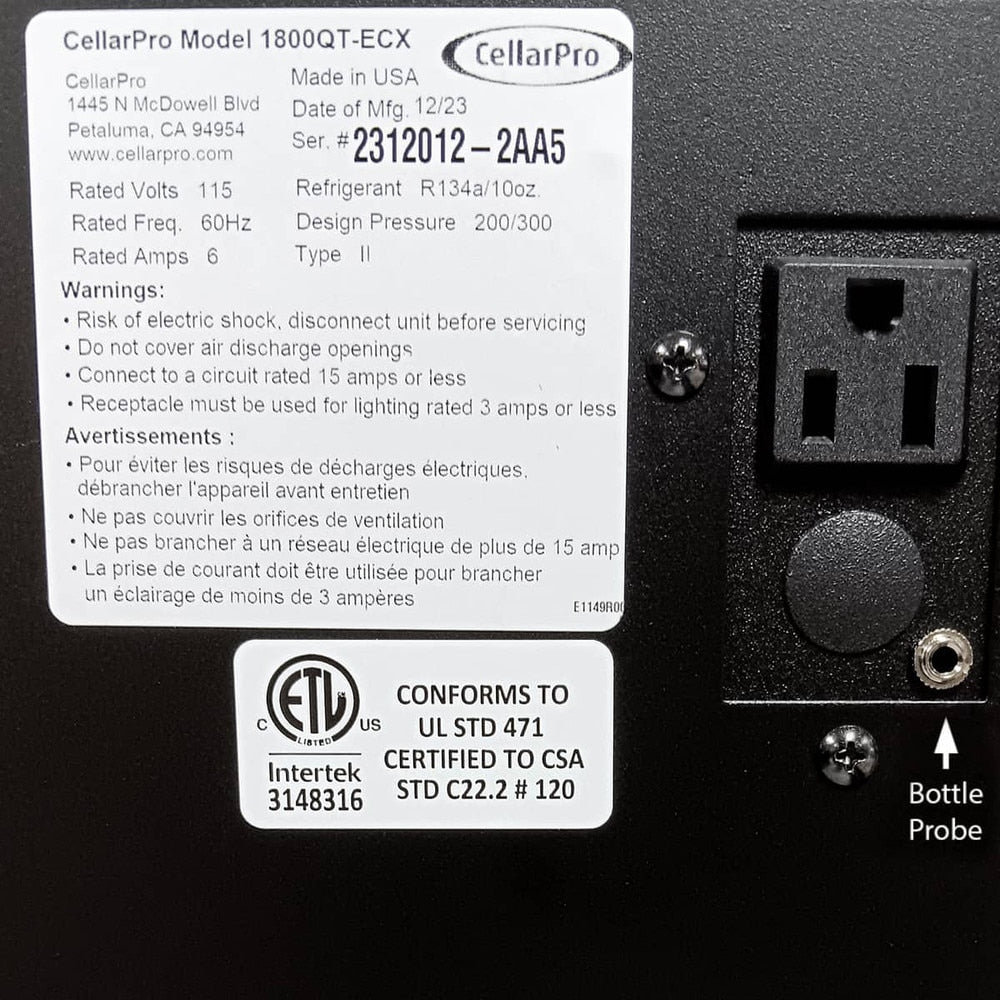

  Power/Rating:
  115V AC / 60 Hz
  Compressor Amps:
  - Running: 4.3 Amps
  - Startup: 22.2 Amps
  - Total Watts: 403
  - Required: Dedicated 15-Amp Circuit
  - Recommended: Surge Protector
  Decibels: 54 dBA (Rear)

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

A limited 2-year product warranty is offered entire system from date of purchase.

Cellar Pro Standard Warranty

IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.

Cellar Pro 1800 Owner's Manual
Cellar Pro 1800 Configuration Options
Cellar Pro Cooling Systems - Specs
Cellar Pro Cooling System 1800H Houdini - Specs
Cellar Pro Cooling System 1800H Houdini - Configuration Options
Cellar Pro Cooling System 1800H Houdini - Owners Manual
Comparison chart of Features, Performance, Design, and Components

Mounting Guide (Clips)
Mounting Guide (Shelf)

Front, Rear and Sides Dimensions
Top Dimensions

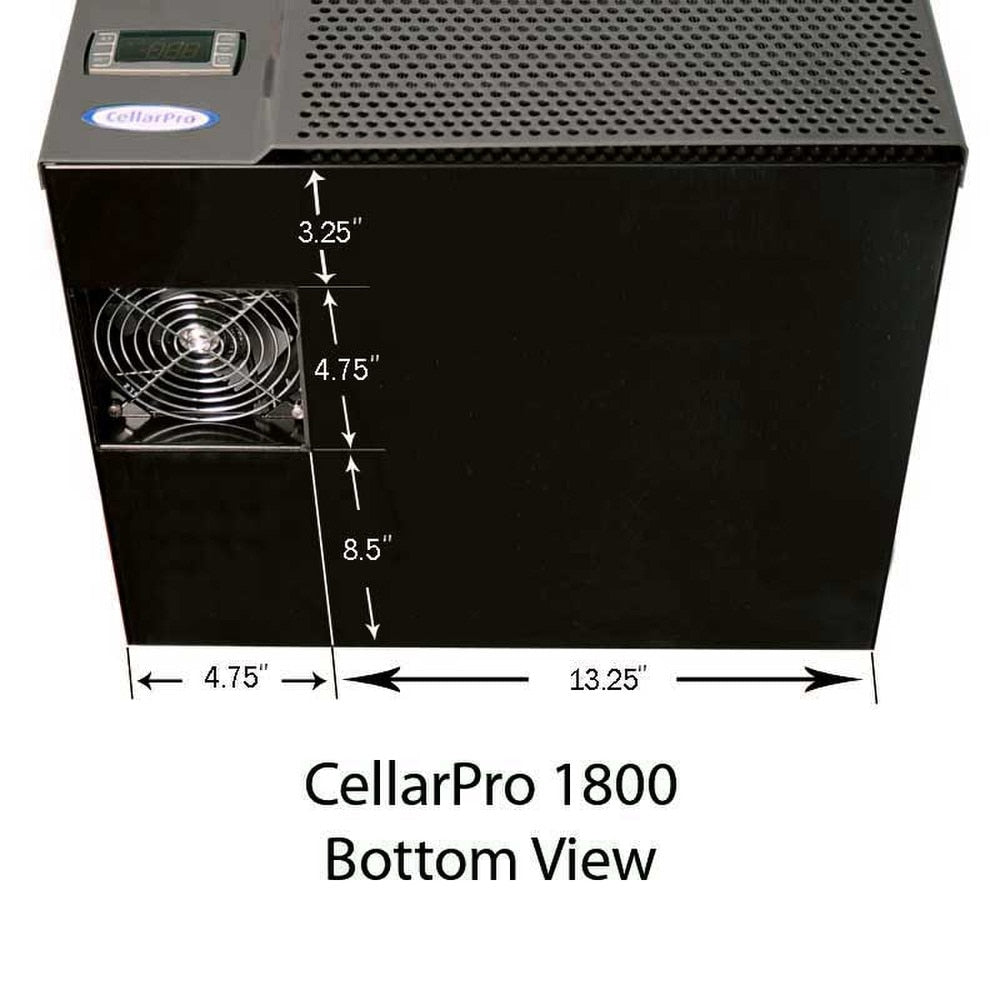

Bottom Dimensions
