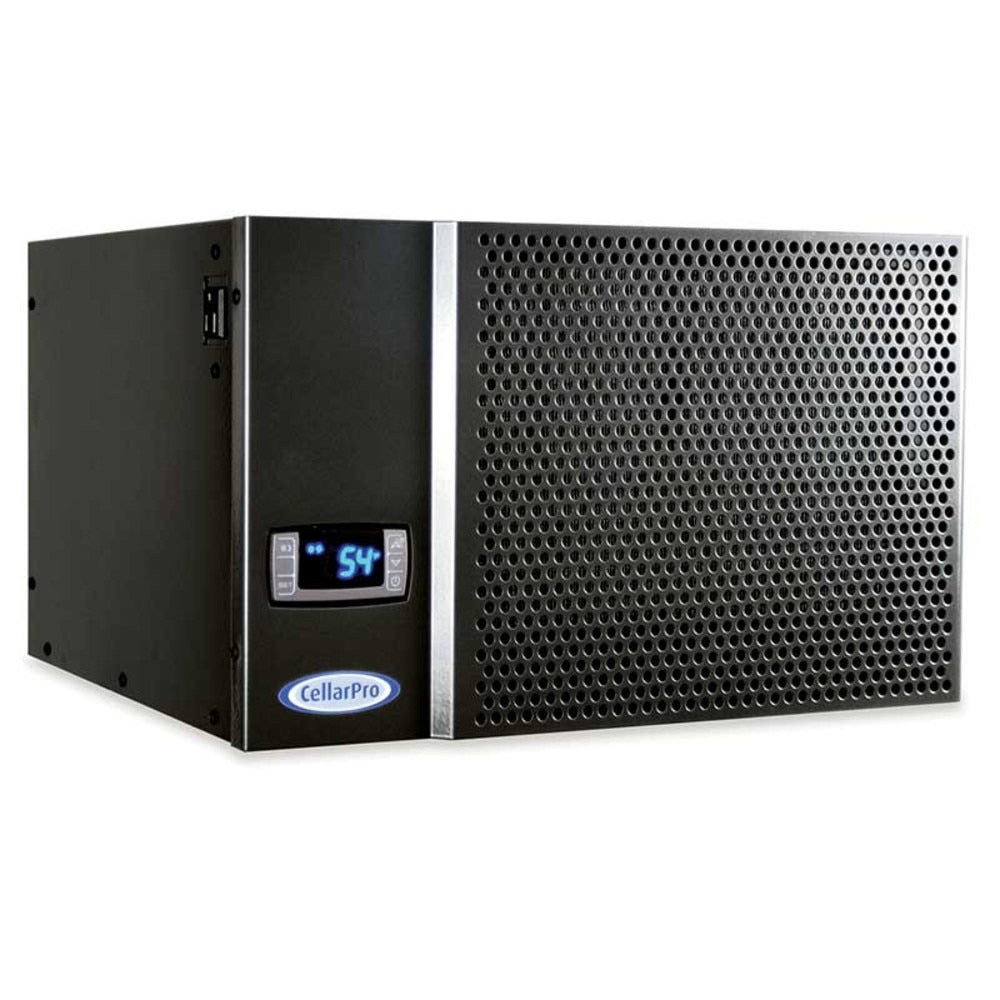

CellarPro 1800XT HE Wine Cellar Cooling Unit

CellarPro engineered the 1800XT-HE Cooling Unit for high-demand installations that require greater airflow, higher BTUH output, and improved energy efficiency. Delivering 1/5-ton cooling capacity, the 1800XT-HE is designed for large wine cabinets, small wine cellars, and commercial environments where consistent performance is critical.

Built with R-290 low-GWP refrigerant, high-efficiency EC fans, and aluminum evaporator coils, the 1800XT-HE provides powerful cooling with reduced environmental impact and lower energy consumption. It delivers approximately 26 percent more cooling capacity than the CellarPro 1800QT-HE, making it ideal for difficult installations and warmer ambient conditions.

The 1800XT-HE is a direct replacement for the CellarPro 1800XT-ECX, offering modern components, improved efficiency, and enhanced airflow in the same compact form factor.

Dimensions:
18" W × 16.5" D × 10.5" H

Weight:
60 lbs

Electrical Requirements:

• Power: 115V AC / 60 Hz
• Compressor Amps:
  • Running: 2.9 Amps
  • Startup: 20.5 Amps
• Total Watts: 237
• Requires: Dedicated 15-Amp Circuit
• Recommended: Surge Protector

Sound Level:
47 dBA (Rear)

Refrigerant:
R-290 (Ultra-low GWP, zero ODP)

Fan Type:
EC (Electronically Commutated)

Evaporator:
Aluminum coil

Certification:
ETL Certified

UPC:
077757371592

Cooling Capacity
1642 BTUH Total / 1473 BTUH Sensible @ 55F
Nominal Size: 1/5 Ton

CellarPro 1800XT-HE cooling units are suitable for large wine cabinets, small wine cellars, and commercial applications operating in environments with condenser air temperatures ranging from 40F to 95F.

All air-cooled refrigeration equipment requires a source of fresh air to dissipate heat. The fresh air intake must come from outside the wine cellar and cannot be drawn from within the cellar space.

Designed for indoor use only, the 1800XT-HE operates out of the box in ambient conditions from 40F to 95F. For operation in colder environments, please refer to the Options & Upgrades tab for recommended modifications.

Although cooling units are rated for specific room sizes, actual thermal load may vary due to factors such as glass walls, room orientation, insulation quality, or ambient conditions. We strongly recommend consulting a Rosehill Wine Cellars specialist for proper sizing assistance.

Performance Overview

• Setpoint range: 47F to 62F (cellar temperature)
• Adjustable humidity control helps protect corks and wine labels
• Increased airflow for demanding and commercial installations

Compatibility & Replacement

• Direct replacement for: CellarPro 1800XT-ECX
• Comparable sizing to: Breezaire 2200, Wine-Mate 2500

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

A limited 2-year product warranty is offered entire system from date of purchase.

Cellar Pro Standard Warranty

IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
