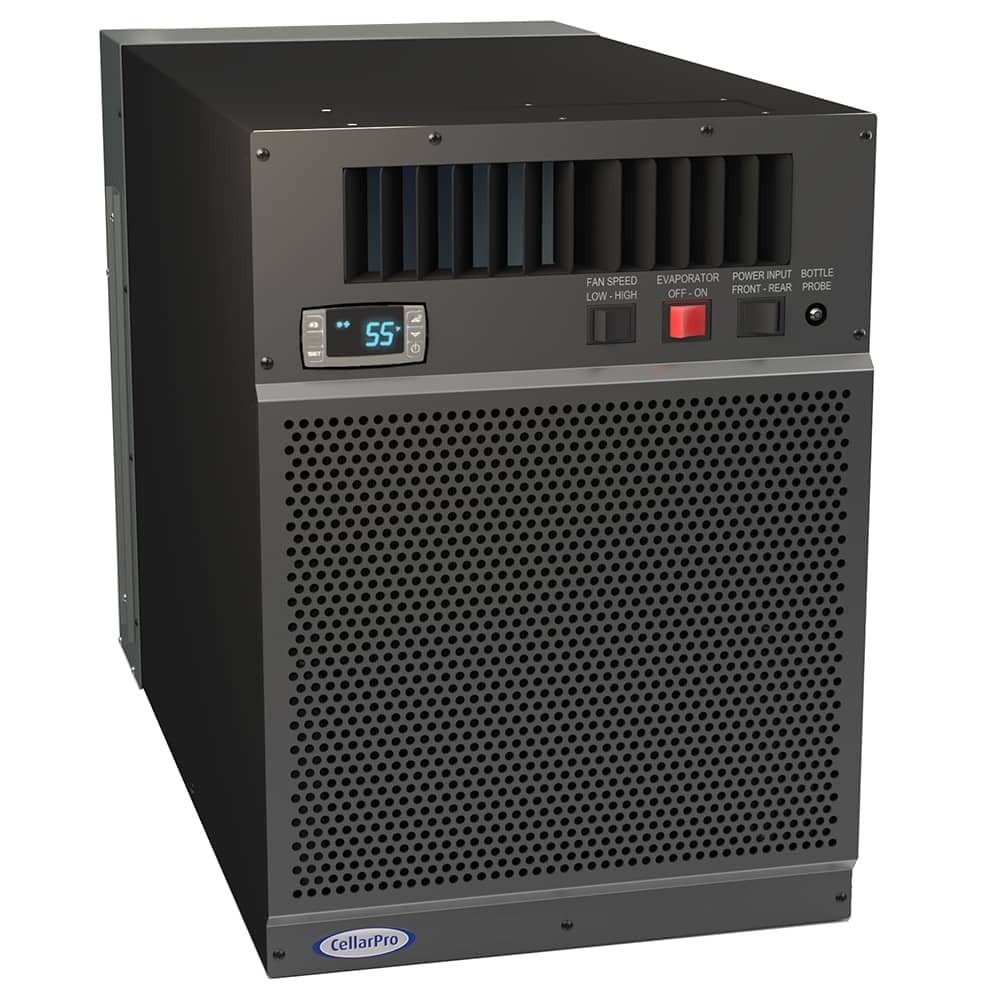

CellarPro CP 6200VSX Wine Cellar Cooling Unit
Description
Designed for external installations, CellarPro engineered the 6200VSx-ECX cooling unit to provide maximum cooling power and adjustable humidity control for cellars up to 1,900 cubic feet. 6200VSx-ECX units are built with high-output Tecumseh rotary compressors and oversized coils for maximum performance in high-temperature environments up to 110F. These units also feature variable-speed fans with a low setting for quieter operation when conditions permit. Beginning with the 6200VSi cooling unit for interior installations, we've added to the 6200VSx-ECX an exterior weather hood, cold-temperature compressor heater, coated condenser coils, double-powder coated exterior case, reusable aluminum filter and exterior-grade power cord.
Dimensions - 16 1/4w x 31 3/4d x 22 1/10h (in)
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Additional Information
5712 SENSIBLE BTUH @ 55F.
CellarPro's 6200VSx-ECX cooling units (3/4 Ton Nominal) are suitable for external installations from 20F to 110F in residential and commercial wine cellars up to 1900 cubic feet.
TECHNICAL SPECS
Weight: 180 lbs
Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 48.3 Amps
- Unit Amp Rating: 8.4 Amps (high fan speed)
- Total Watts with Low Fan: 727
- Total Watts with Evaporator Off / Low Fan: 727
BTUH @ 55F:
- Low Fan Speed: 5444
- High Fan Speed: 5712
- 3/4 Ton Nominal
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
A limited 2-year product warranty is offered entire system from date of purchase.
Cellar Pro Standard Warranty
IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
