CellarPro CP 8200VSI Wine Cellar Cooling Unit
Description

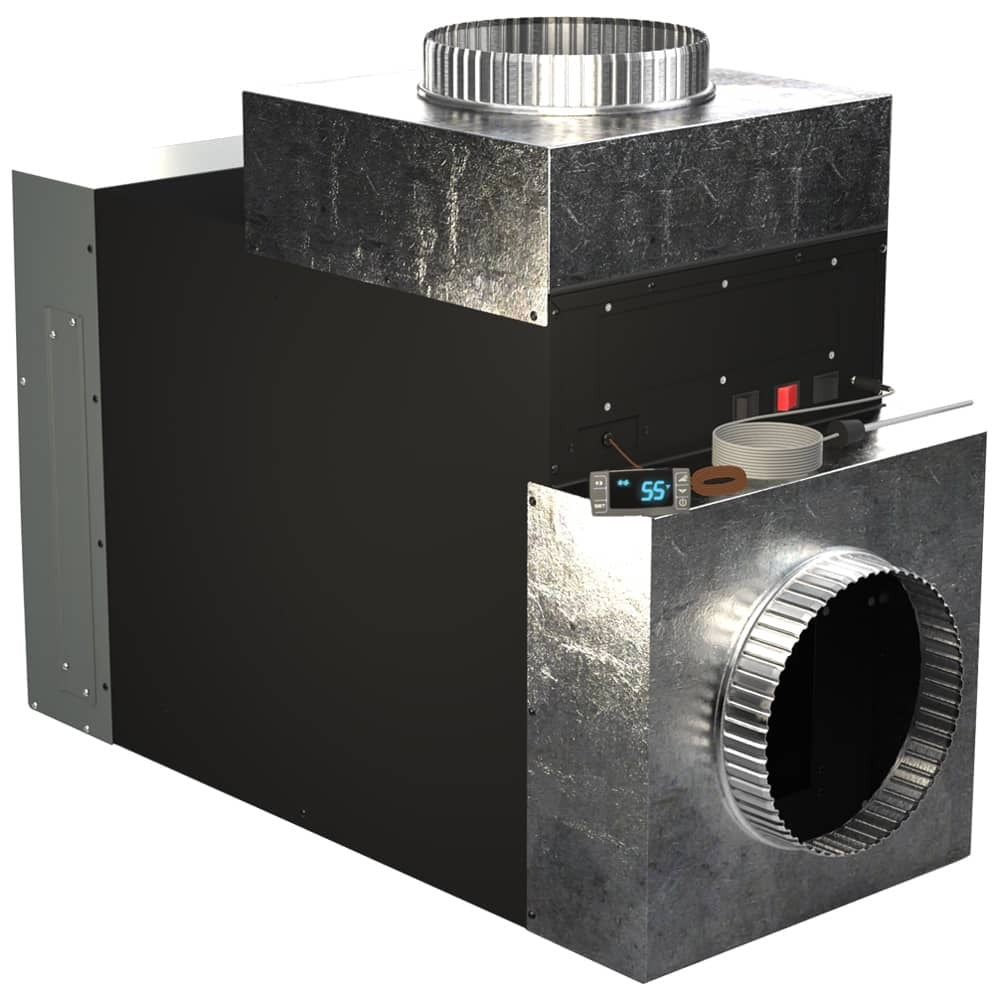

CellarPro engineered the 8200VSi-ECX cooling unit to provide maximum cooling power and adjustable humidity control for cellars up to 2,200 cubic feet. Designed for internal installations, 8200VSi-ECX units are built with high-output Tecumseh rotary compressors and oversized coils for maximum performance in high-temperature environments up to 110F. These units also feature variable-speed fans with a low setting for quieter operation when conditions permit.
TECHNICAL SPECS
Weight: 162 lbs
Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 48.3 Amps
- Unit Amp Rating: 9.7 Amps (high fan speed)
- Total Watts with Low Fan: 862
- Total Watts with Evaporator Off / Low Fan: 862
BTUH @ 55F / Decibels:
- Low Fan Speed: 6254 / 57 dBA
- High Fan Speed: 6438 / 59 dBA
- 1 Ton Nominal
Compatible with 15-Amp Dedicated Circuit
Additional Information
Dimensions - 16 1/10w x 28d x 22h (in)
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
6438 SENSIBLE BTUH @ 55F.
CellarPro's 8200VSi-ECX cooling units (1 Ton Nominal) are engineered for wine cellars up to 2,200* cubic feet in both commercial and residential wine cellars.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
A limited 2-year product warranty is offered entire system from date of purchase.
Cellar Pro Standard Warranty
IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
