CellarPro Ducted Split Air Handler 6500

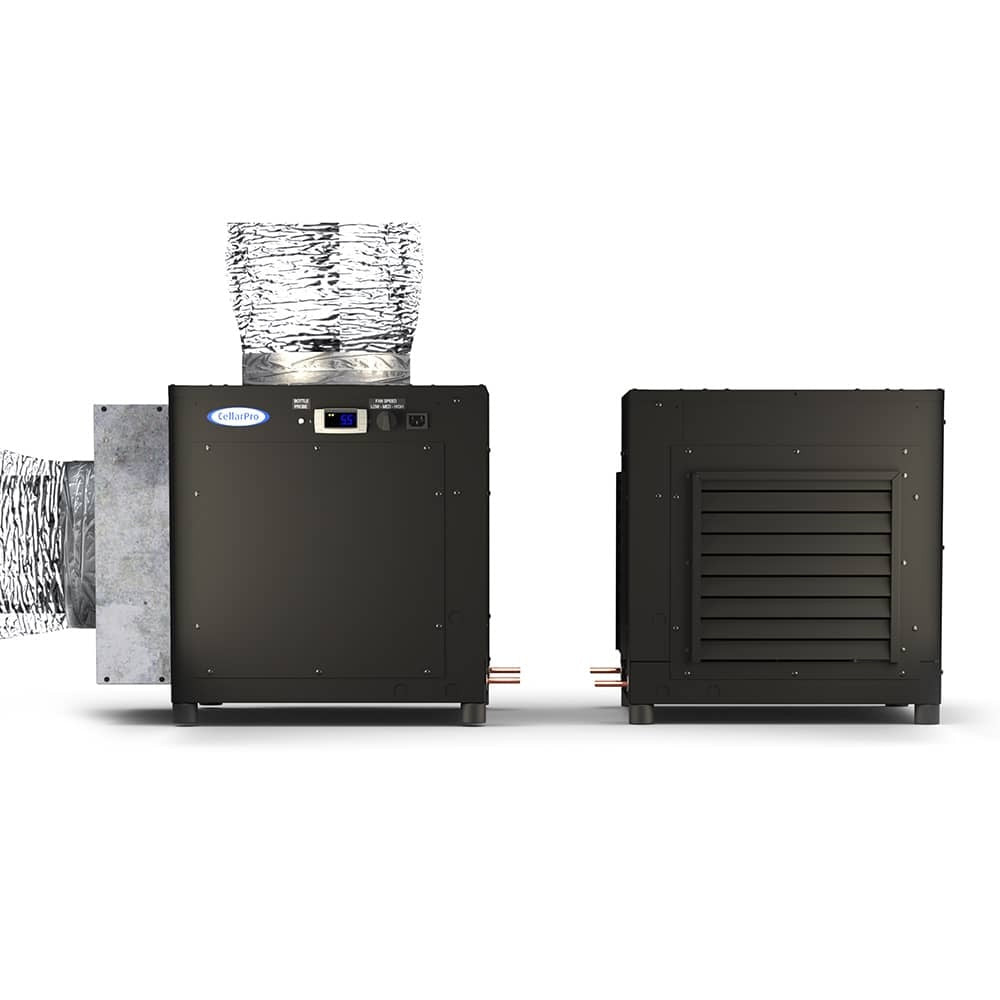

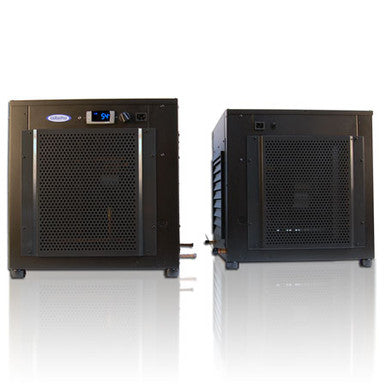

CellarPro AH6500Si-ECX Cooling Unit. CellarPro engineered the AH6500Si-ECX ducted cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,750 cubic feet. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) As a split system, the evaporator can be separated from the condensing unit up to 100 feet, allowing the noise and heat from the condensing unit to be located away from interior living areas. Designed for internal installations, the AH6500Si-ECX includes energy-efficient independent variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

CellarPro's AH6500Si-ECX ducted cooling units (3/4 Ton Nominal) are engineered for wine cellars up to 1,750* cubic feet in both commercial and residential wine cellars. This ducted unit uses 10-inch ducting and requires insulated ducting on the cold side.

ROSEHILL RESERVES THE RIGHT TO CONTACT YOU PRIOR TO PROCESSING YOUR ORDER IN REGARDS TO SHIPPING OVERSIZED ITEMS.

*The cellar size assumes that the cellar is constructed with a proper vapor barrier, insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar.

This unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F. AH6500Si units use energy-efficient EC fans and are significantly quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

When the condensing unit will be exposed to or pulling air that is below 40F, a Compressor Heater is a required addition to protect the compressor. For installation of the condensing unit in environments below 20F down to -20F, our Fan Cycling Switch  is required in addition to the Compressor Heater, and Electronic Configuration is required.

ALL Cellar Pro Split systems are available with optional exterior hood which allows the condensing units to be installed in external environments, subject to the temperature range noted above. Please inquire.

• Condenser Operating Temperature Range: 0°F to 110°F
• Certified by ETL to UL standards
• Active Humidity Control

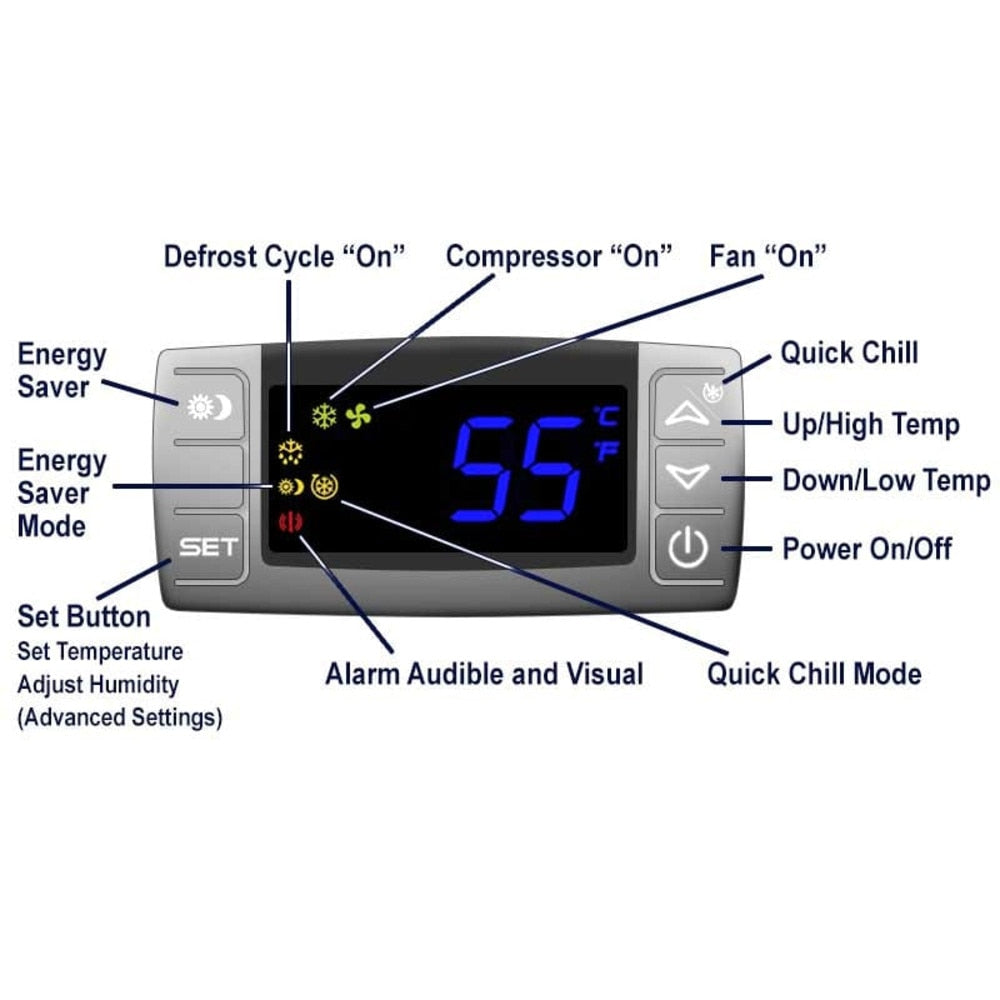

• Digital Controls (LED Display)
• 115V AC / 60Hz
• Auto-Defrost Cycle
• Electronic Thermostat
• Energy-Saver Mode
• Quick-Chill Mode
• Audible and Visual Alarms
• Min/Max Temperature
• Maintenance-Needed Indicator
• Power On/Off Switch

Size (Evaporator Dimensions):
- 60 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h

Condensing Unit Dimensions:
- 111 lbs
- 18.6w x 18.6d x 19.3h

Power/Rating:
- CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:

1. Two permanent power connections for the evaporator (2.0 amps / 15 amp circuit breaker) and the condensing unit (15.8 amps / 25 amp circuit breaker). This wiring is recommended for Valve Control configurations.
2. One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.

System Amps:
- Startup Amps: 53.0 Amps
- Running Amps Cord-Connected: 14.7 Amps
- Total Watts: 944 (medium fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 4923
- Med Fan Speed: 5350
- High Fan Speed: 5771

- 3/4 Ton Nominal

Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA

Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 43 dbA / 56 dbA
- Med Fan Speed, Ducted / Non-Ducted: 50 dbA / 63 dbA
- High Fan Speed, Ducted / Non-Ducted: 55 dbA / 68 dbA

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

A limited 2-year product warranty is offered entire system from date of purchase.

Cellar Pro Standard Warranty

IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.

CP Air Handler Owner's Manual

CP Air Handler Cut Sheet

CP Air Handler Spec Sheet

CP Air Handler Humidifier Cut Sheet

CP Air Handler Configuration Options
