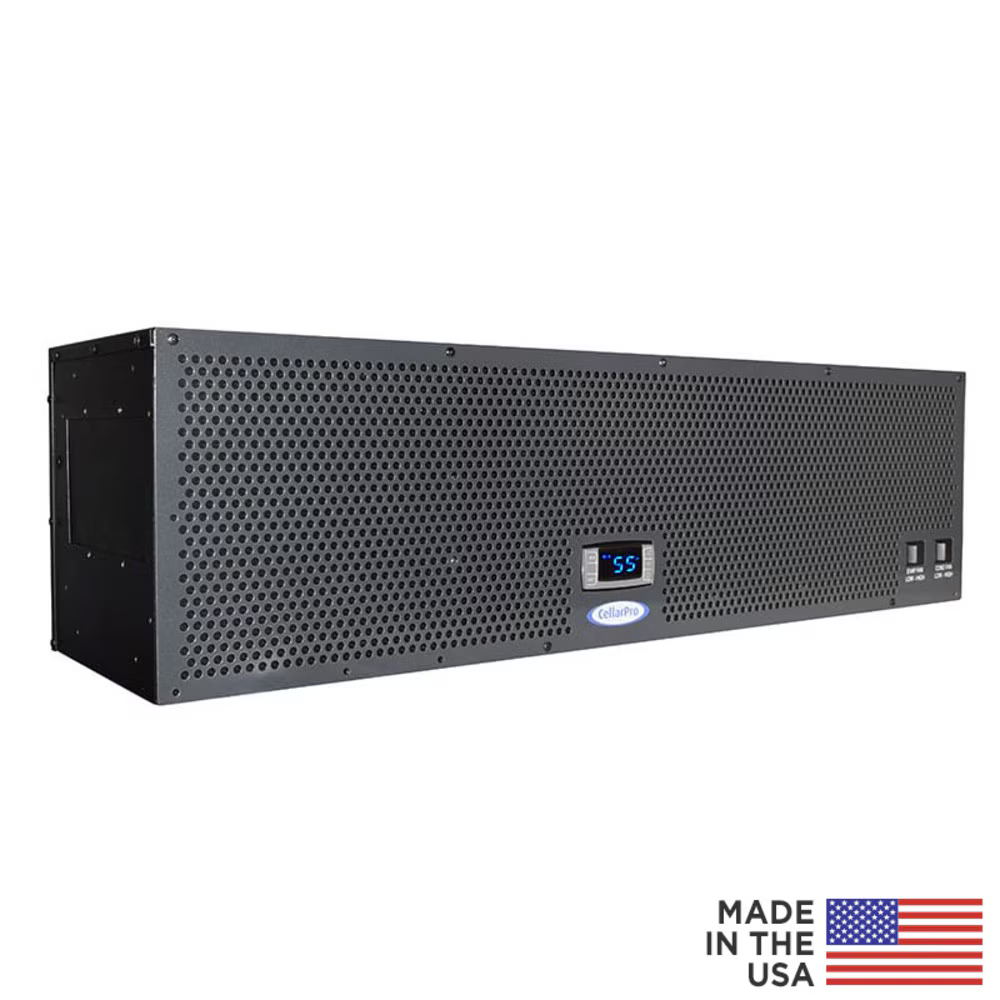

CellarPro Houdini Wine Cellar Cooling Unit - 1800H

The CellarPro 1800H-ECX cooling unit is designed for shallow-depth glass wine cellars, offering energy-efficient cooling for optimal preservation. With a slim profile of just 10.5 inches deep and 10 inches tall, it is ideal for discrete integration, either inside or atop your cellar. Featuring dual variable-speed fans, it provides flexibility between ultra-quiet operation and high-performance cooling.

This unit is equipped with advanced components, including an oversized fan system, designed for use in a range of environments, providing flexibility in placement up to 25 feet away from the cellar. It operates with minimum vibration and low noise, making it suitable for home and commercial applications

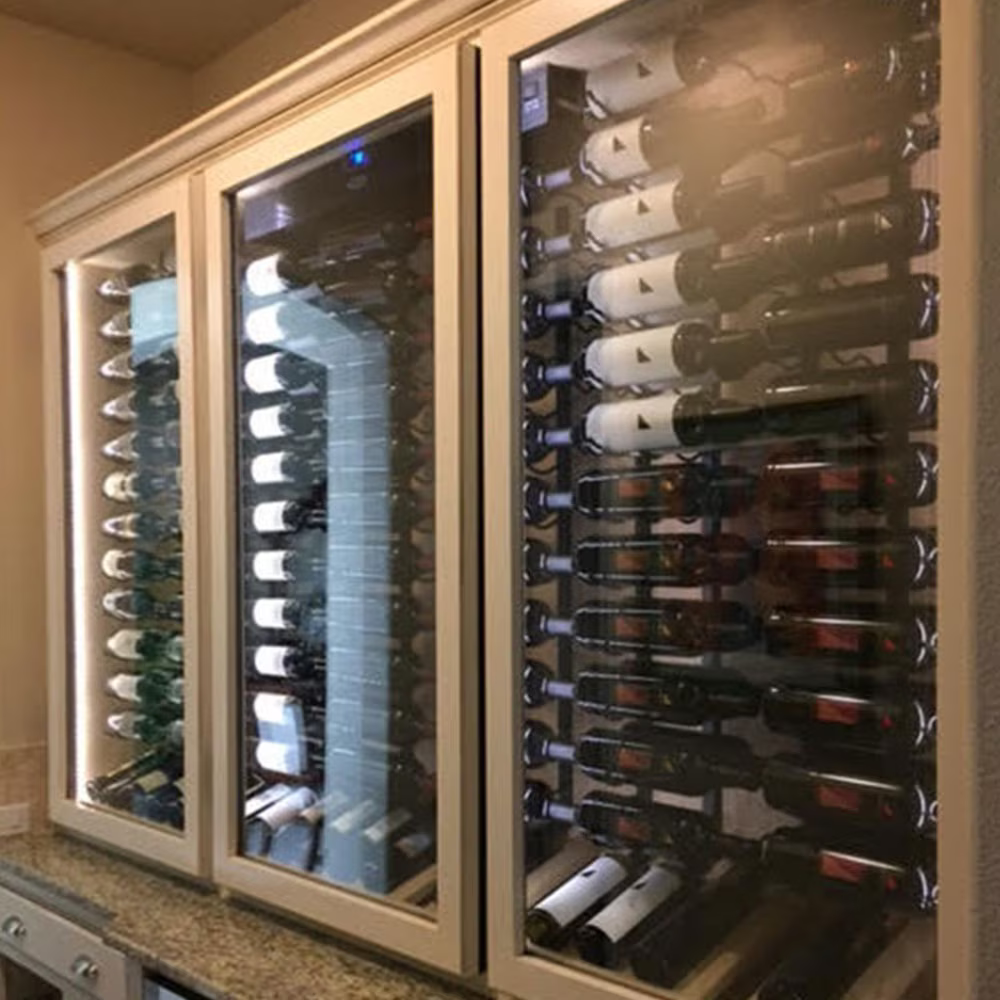

CellarPro's 1800H-ECX cooling unit is the first cooling unit designed specifically for glass-enclosed wine cellars, and uses energy-efficient variable-speed EC fans for maximum performance. Features include:
*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

• Ducting option: Up to 50 feet for cold air and 100 feet for exhaust, using optional duct kits
• Requires fresh air intake from outside the cellar

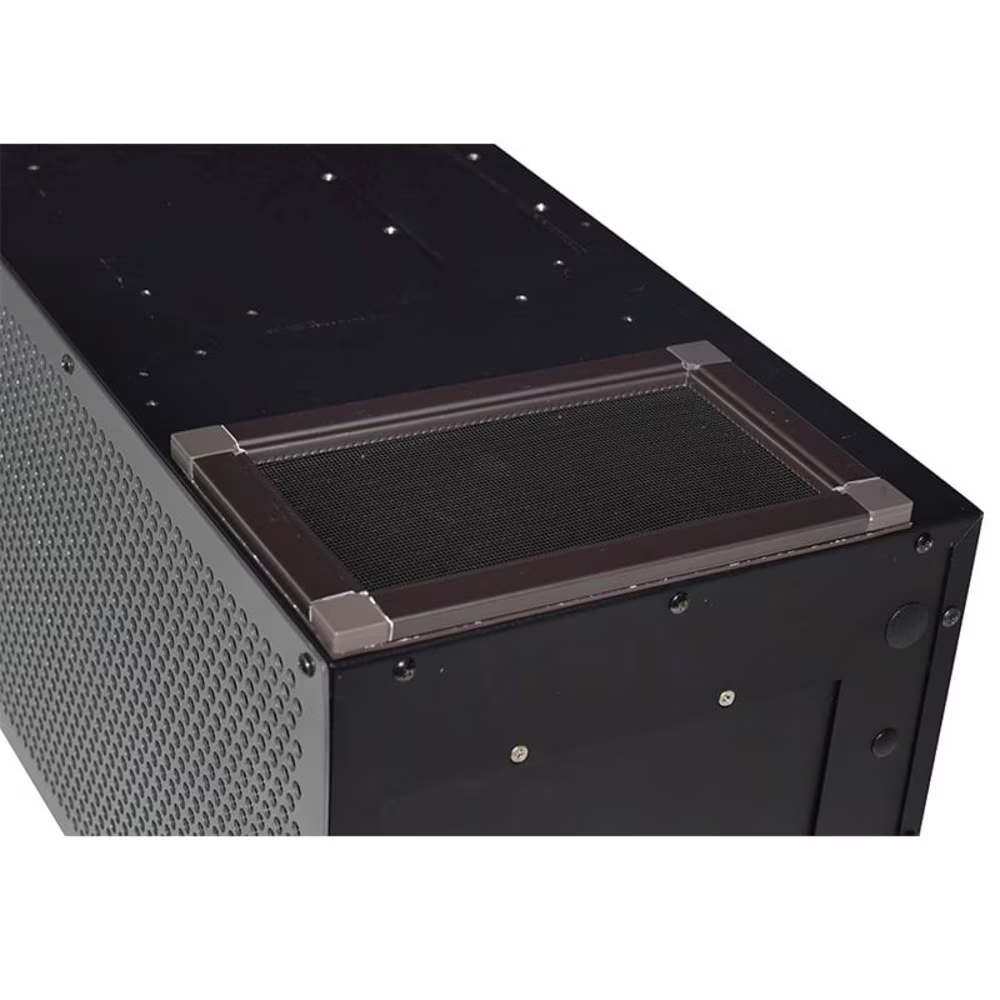

• Includes reusable filter for non-ducted configurations
• Suitable for cellars up to 400-1200 cubic feet (depending on specific installation conditions



  Key Features:

• Shallow design: Fits in shallow glass enclosures

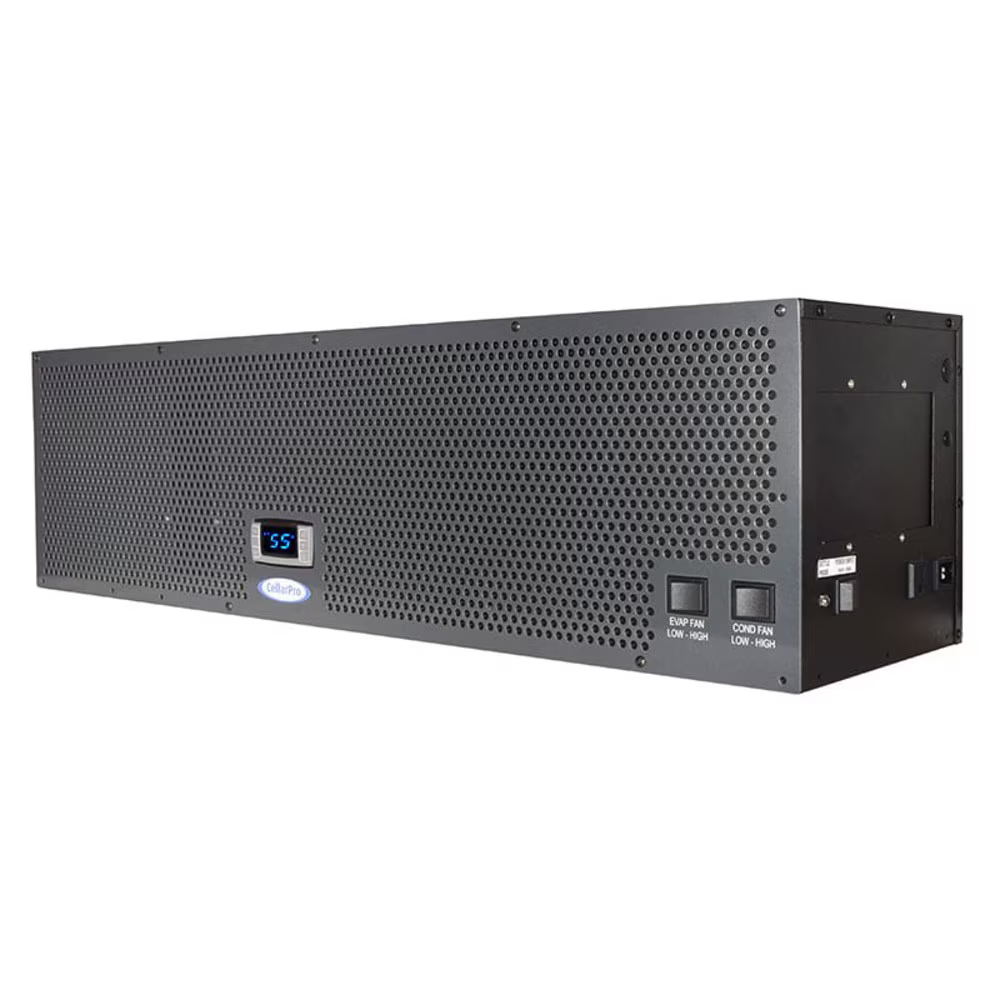

• Dual independent fans: Offers quiet operation and performance customization
• Flexible installation: Can be placed inside, atop, or remotely from the cellar
• Energy-efficient: Variable-speed EC fans
• Smart control: Digital LED thermostat with remote monitoring up to 50 feet away
• BTUH: 1864 @ 55°F (sensible cooling)
• Noise Level: Low (49 dBA)
• Energy source: 110V, 15A circuit

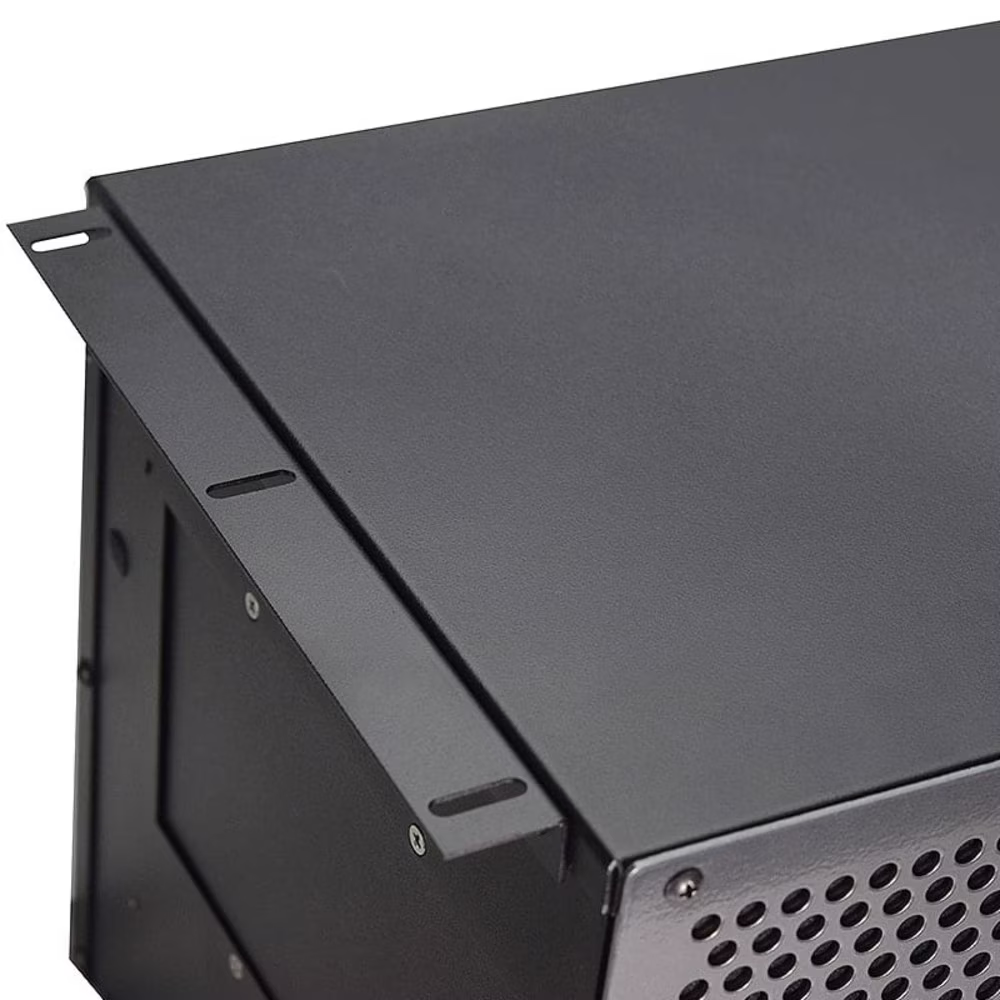

• Installation: Easy-to-use, with mounting brackets included

• Weight: 80 lbs

  Power/Rating:
  115V AC / 60 Hz
  Compressor Amps:
  - Startup (LRA): 22.2 Amps
  - Unit Amp Rating: 4.7 Amps
  - Total Watts with Fans on High: 411
  - Total Watts with Fans on Low: 399
  - Compatible with Dedicated 15-Amp Circuit

  BTUH @ 55F:
  - Low Fan Speed: 1456 BTUH
  - High Fan Speed: 1864 BTUH
  - 1/4 Ton Nominal


  Shallow height and depth

  Fits shallow glass enclosures

  10 1/2"D x 10"H x 36 1/2"W

  Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

A limited 2-year product warranty is offered entire system from date of purchase.

Cellar Pro Standard Warranty

IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
