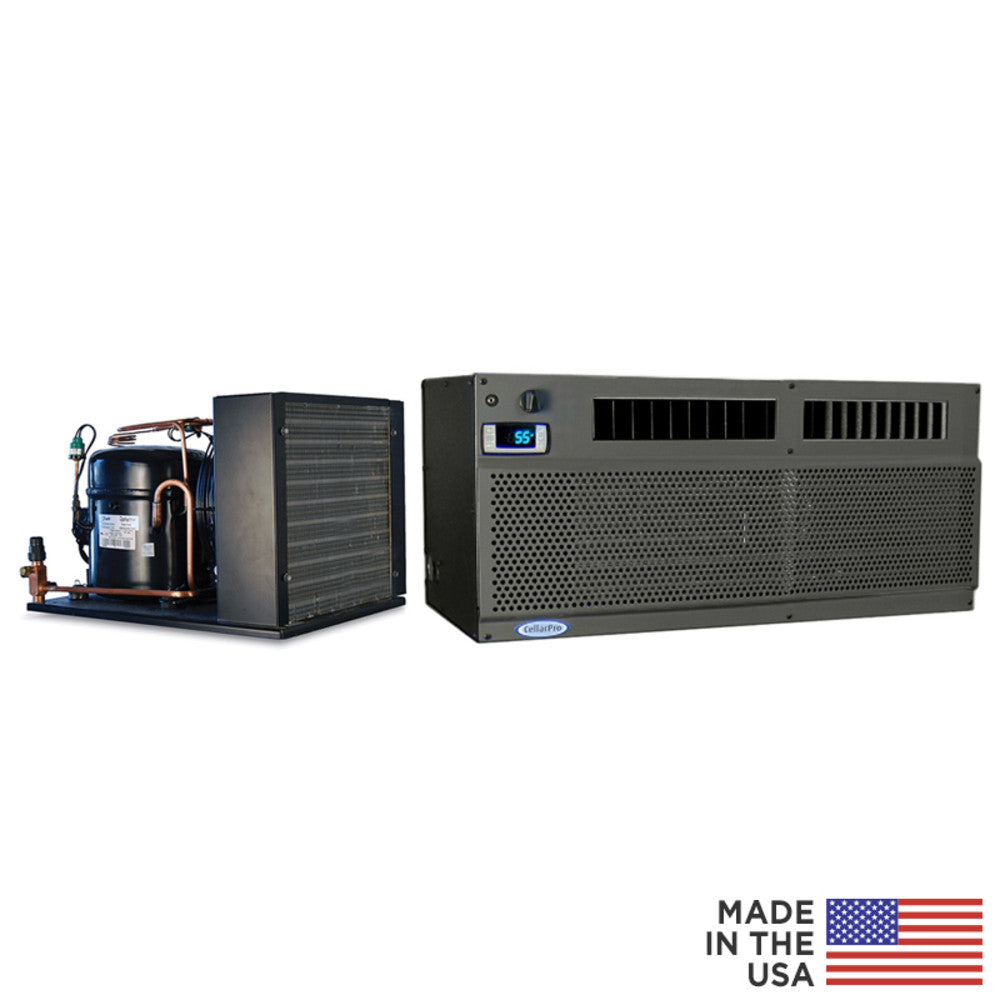

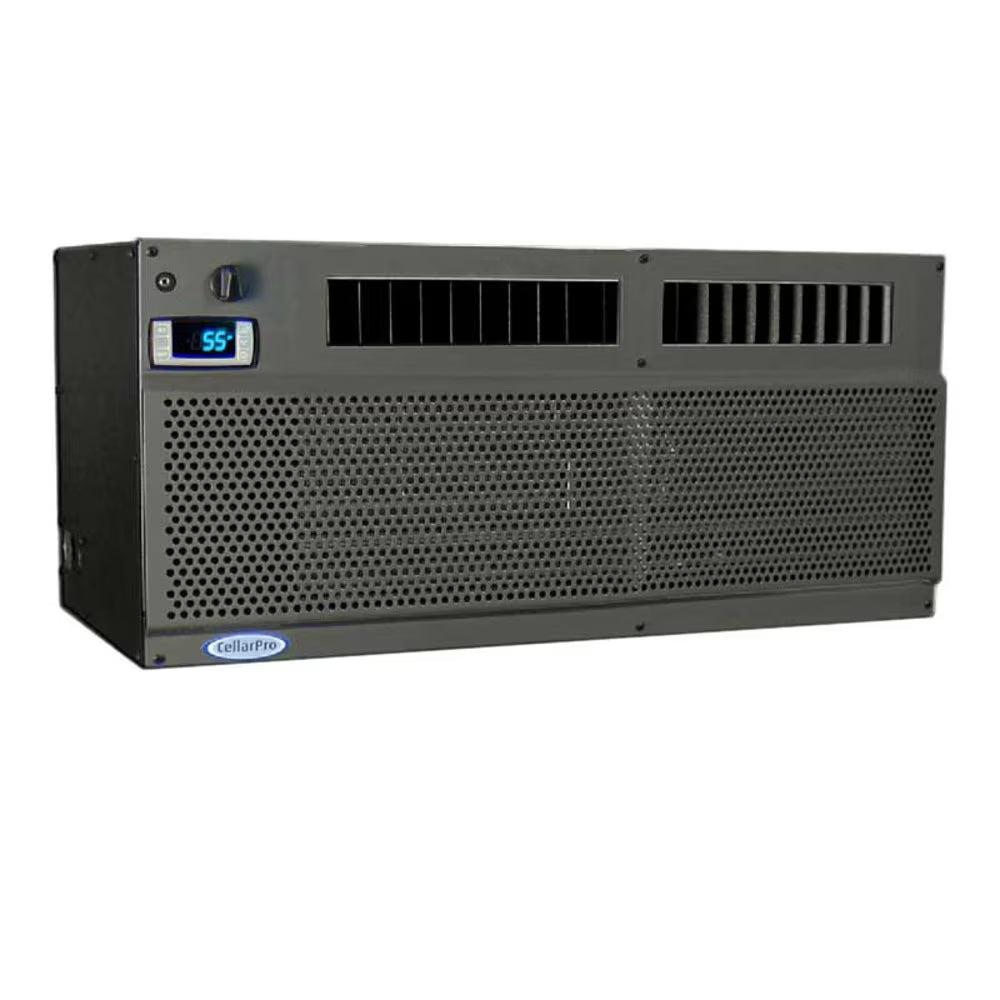

Cellar Pro 3000Sh (Horizontal Evaporator)

The CellarPro 3000Sh-EC is a premium mini-split cooling system designed for wine cellars up to 600 cubic feet. Featuring energy-efficient EC fans, this system offers strong and quiet performance in both residential and commercial settings. It separates the noise and heat of the condensing unit from interior spaces, making it ideal for indoor or outdoor installations, even in extreme conditions up to 110°F.

With its intelligent humidity control, advanced alarm features, and oversized coils, this unit ensures stable temperature and humidity to protect your wine investment. A top-tier choice for cellars requiring flexible, low-vibration cooling.

This system is engineered for high efficiency with adjustable fan speeds, an intuitive LED thermostat, and corrosion-resistant construction. Its modular design allows for long refrigerant line sets and vertical lifts, while dual alarms safeguard your cellar. To preserve warranty validity, proper cellar insulation and outdoor installation standards (e.g., outdoor hood and anti-corrosion coating in coastal areas) must be met.

Key Features

• Energy-Efficient EC Fans – Quieter operation with annual savings up to $83.67
• Humidity Control – variable fan speeds for optimal moisture balance
• Extreme Temperature Ready – Operates from -20°F to 110°F
• Oversized Cooling Coils – Boosts cooling power and performance stability
• LED Thermostat Display – Easy-to-use digital control with upgrade options

Specifications

• Model: 3000Sh-EC
• Cooling Capacity: 2491 BTUH @ 55°F
• Recommended Cellar Size: Up to 600 cu. ft. (with R19 insulation)
• Evaporator Unit Dimensions: 30 3/8" W x 14 1/4" D x 13 1/4" H
• Condensing Unit Dimensions: 19 3/8" W x 23 1/4" D x 18 3/4" H
• Weight: Evaporator – 65 lbs | Condenser – 45 lbs
• Shipping Weight: 144 lbs
• Electrical: 115V AC / 60 Hz | 15-amp dedicated circuit
• Startup Amps: 28.2 A
• Running Amps: 5.6 A (high speed)
• Evaporator Decibels: 51–63 dBA (depending on fan speed)
• Condenser Decibels: 62 dBA (outdoor), 64 dBA (indoor)
• Construction: Metal
• Installation: Indoor/Outdoor (with outdoor hood if outside)
• Warranty: 2-Year (System), 5-Year (Compressor); optional extended warranty available
• UPC: 077757074028
