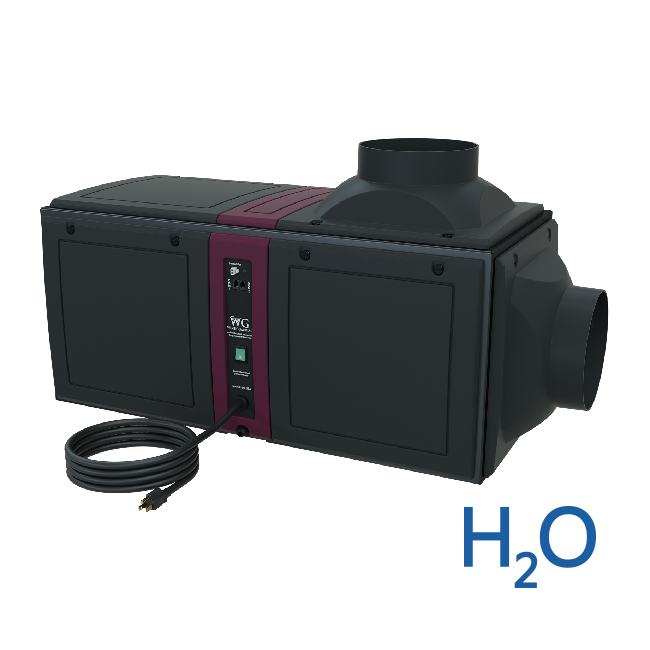

Wine Guardian D025WC 1/4 Ton Water Cooled
Description
A self-contained, water-cooled ducted wine cellar cooling unit for small residential and commercial wine cellars and wine rooms.
The D025WC is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit capacity is up to 3384 BTUH.
If you would like racking as well, we will be happy to customize a design and obtain a shipping quote for your entire order. Click HERE to go to Racking Pages or contact us now.
Additional Information
The D025WC is a water-cooled ducted wine cellar cooling unit for small residential and commercial wine cellars. The D025WC cooling system is a self-contained, fully ductable cooling system. If you have a year-round water source, the D025WC is recommended if a split system isn't wanted. The maximum capacity of this system is 3,384 BTU/h (0.97 Kilowatts).
Integrated temperature and humidity gauge included with all ducted units. A digital thermostat & 25ft of thermostat wire also comes with the unit.
A ½" water line (¾" for the 2 Ton model) is all that is required for this option which eliminates the condenser fan. "Leaving water" is clean, and is acceptable for sewer or makeup water.
Please contact us for assistance in calculating your ductwork requirements.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Due to the fact that this unit doesn't get hot - it can be installed in a closet or confined space. The water cooled can now be ducted into home swimming pools, please specify at time of order your interest in doing this.
The Ducted system also already comes with the Remote Interface Controller
TECHNICAL SPECS
|
Model |
D025WC |
|
Line Frequency |
60 Hz |
|
Capacity |
1000 – 3760 BTU |
|
Volume |
250 – 2000 ft³ |
|
Length |
33.45" |
|
Width |
16.6" |
|
Height |
15.56" |
|
Weight |
78 lbs |
|
Electrical |
115/1/60 |
|
Ductless/Ducted |
Ducted |
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of original invoicing assuming NORMAL USE AND SERVICE.
Wine Guardian Warranty Information
PRODUCT MANUALS
Wine Guardian Ducted System Installation, Operation and Maintenance Manual
Wine Guardian Horizontal Ducted and Vertical Ducted System Installation, Operation and Maintenance Manual
Wine Guardian Water-cooled Ducted System Spec Sheet
Sizes of Standard Ducted Horizontal & Vertical Wine Guardian
Wine Guardian Ducted System Dimensional Data
