Wine Guardian D088WC Water Cooling Wine Cellar Cooling System

Wine Guardian D088WC 1 Ton Water Cooled Wine Cellar Cooling System

$15,737.00

SKU: 99H0256-20/99H0173-31

Unit Type:

Water-cooled Base Model

Water-cooled Base ModelWater-cooled All Wine Temperatures (AWT)

Integrated Humidifier:

Sentinel Series Integrated Humidifier

Sentinel Series Integrated HumidifierDefault

Add Remote Sensor:

Yes

YesNo

Variant

Quantity:

Description

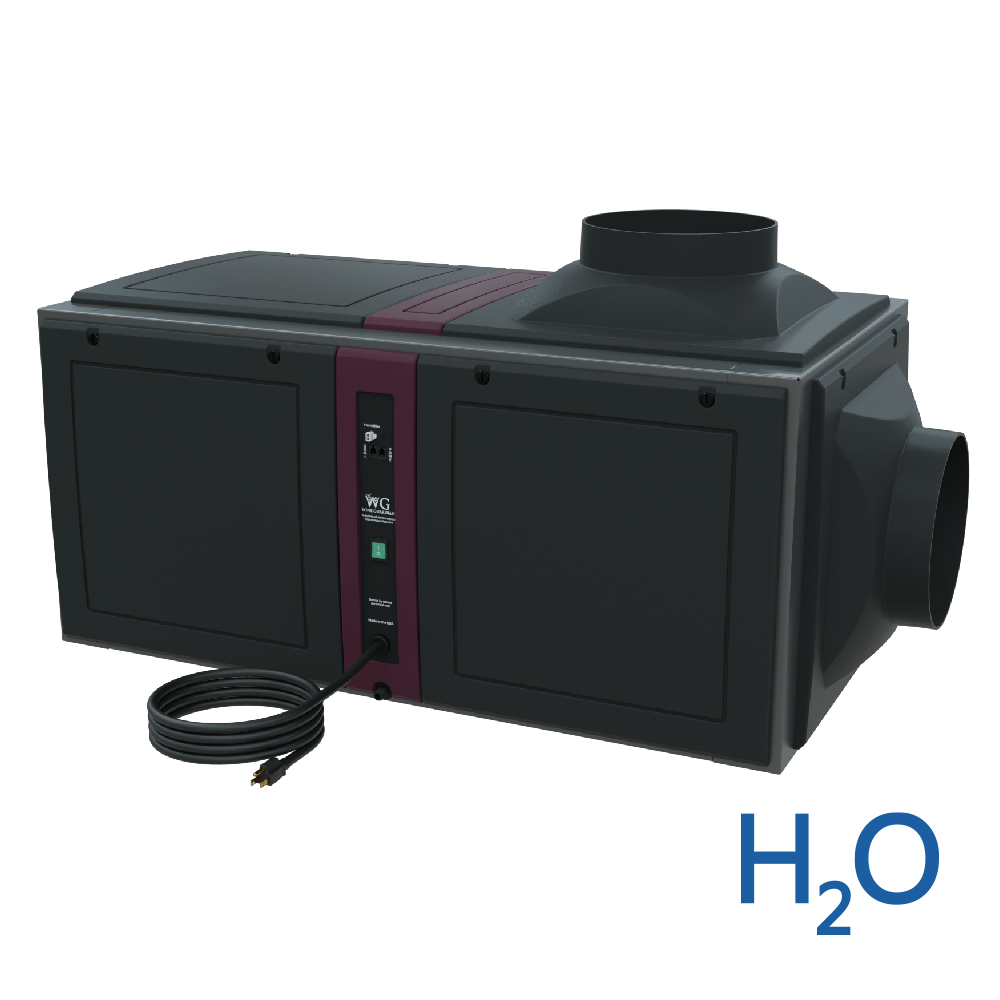

The D088WC Water-Cooled Wine Cellar Cooling Unit is a high-capacity, ducted solution designed for wine cellars ranging from 1,500 to 3,000 cubic feet. This self-contained system uses a water-cooled condensing coil, making it an excellent choice for installations with access to geothermal systems, cooling towers, or lake water. With a maximum cooling output of 8,640 BTU/h, it is engineered to deliver reliable performance in both residential and commercial cellars.

Additional Information

Factory-configured with an integrated water-regulating valve, the D088WC offers fully ductable operation, allowing flexible installation and quiet performance. Optional upgrade bundles provide enhanced climate protection and advanced control features, including temperature settings suitable for wine service.

Key Features:

Designed for cellars from 1,500 to 3,000 cu. ft.
Water-cooled system ideal for geothermal or lake water setups
High output cooling capacity of 8,640 BTU/h (2.53 kW)
Fully ductable, self-contained configuration
Includes factory-installed water-regulating valve
Specifications:
Cooling Capacity: 8,640 BTU/h (2.53 kW)
System Type: Water-cooled, ducted, self-contained
Recommended Cellar Size: 1,500 to 3,000 cu. ft.
Power Supply: 60Hz (North and South America standard)
Installation: Requires ductwork (consultation recommended)

Optional Bundles:

Extreme Climate Protection: Operates reliably below 40°F or above 100°F
All Wine Temperatures: Adds heater and controls for serving-temperature flexibility
Ultimate Bundle: Full feature set including all climate and temperature enhancements

TECHNICAL SPECS

Estimated Room Size: From 1,500-3,000 cubic feet and uses a 10" round insulated duct (not included)

Line Frequency	60 Hz
Model	D088WC
Capacity	5000 – 9600 BTU
Volume	850 – 4500 ft³
Length	41.5"
Width	22.5"
Height	19"
Weight	125 lbs
Electrical	208-230/1/60

Please contact us for assistance in calculating your ductwork requirements.

Shipping Information

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

Warranty

Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of original invoicing assuming NORMAL USE AND SERVICE.

Wine Guardian Warranty Information

PRODUCT MANUALS

Wine Guardian Ducted System Installation, Operation and Maintenance Manual
Wine Guardian Horizontal Ducted and Vertical Ducted System Installation, Operation and Maintenance Manual

Quick Start Guide

Wine Guardian Ducted System Spec Sheet
Wine Guardian Water-cooled Ducted System Spec Sheet
Wine Guardian Ducted System Options Spec Sheet

Sizes of Standard Ducted Horizontal & Vertical Wine Guardian

Wine Guardian Warranty Information

Ducted Sentinel ¼ Ton Specs
Ducted Split ¼ Ton Specs

Use our Wine Guardian cooling unit calculator to determine the right Wine Guardian for your application.
