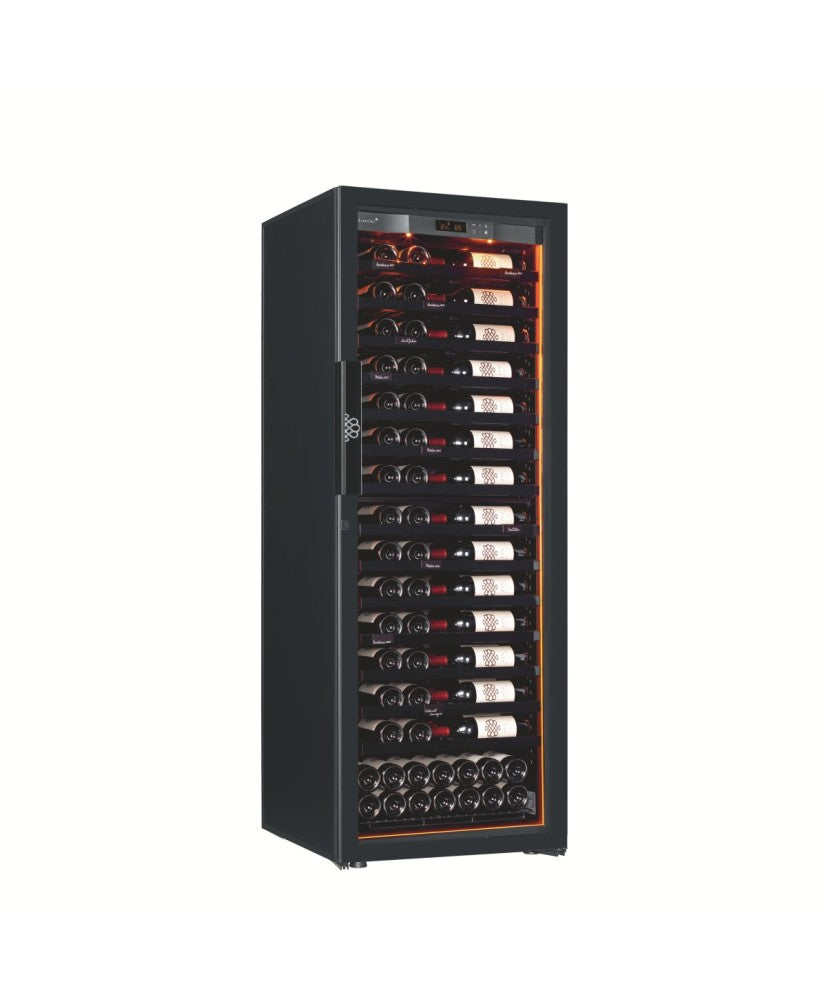

EuroCave Revelation Range Large Model 182 Bottles
Description
The jewel in the crown of wine cabinets

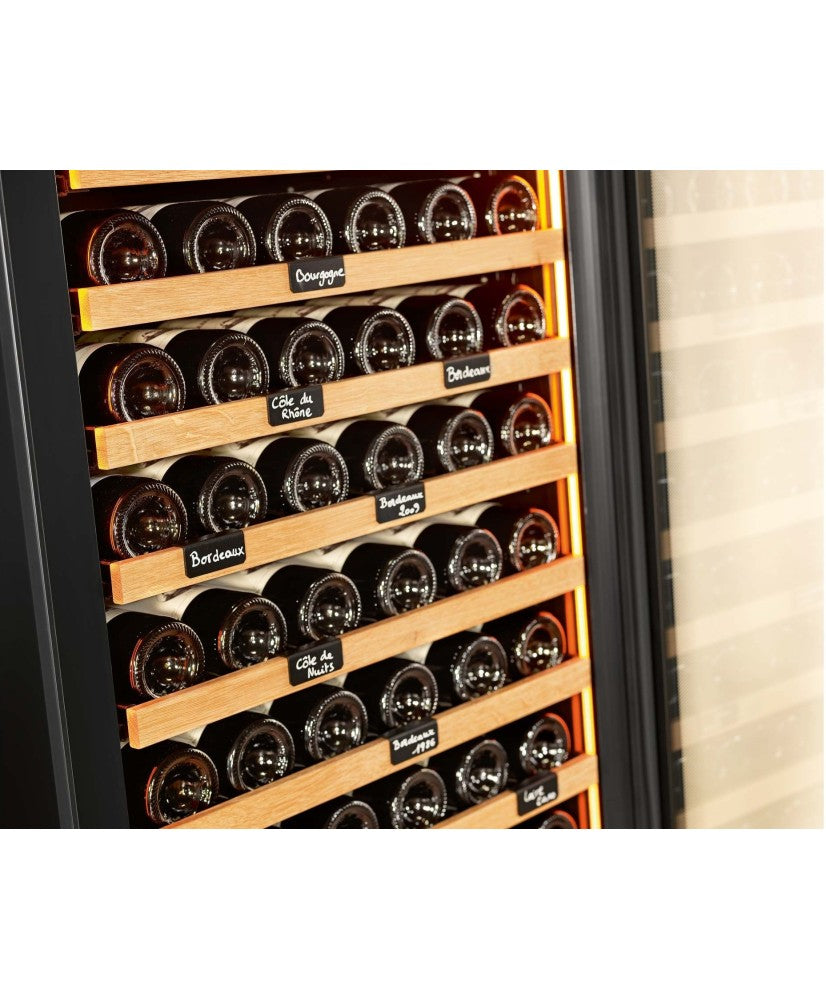

A perfect combination of technology and design, the range has all the features you could desire in a wine cabinet. Your wine is pampered - bathed in a halo of light and held by main du sommelier supports which have been carefully thought out to offer optimal protection for your bottles. With elegant shelf labels allowing you to write down information about your wine, the new shelves in this range have an attractive wood or glossy finish and guarantee smooth handling of your bottles
- Bottle Capacity: 182
- 14 max sliding shelves
- Dimensions (approx): 1825mm x 680mm x 690mm (71.9"h x 26.8" w x 28.2"d)
Additional Information
Soft-close shelves to prevent them from slamming into the back of the cabinet when closing
Enhanced Main de Sommelier. Different shape than the Pure equivalent. Don’t know what other features it may have until I see one.
Insulation improved by more than 30%, meaning as much as 25% reduction in annual energy consumption.
Extra insulation means quieter operation: now 37dB, down from 39 dB

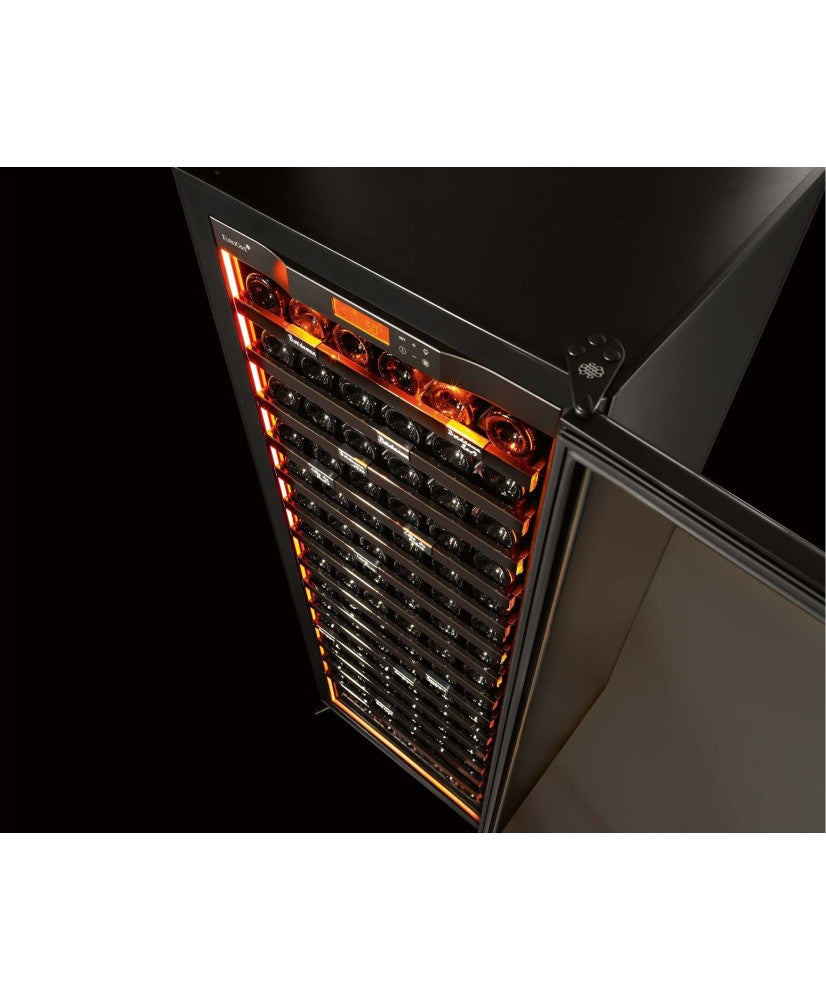

Halo LED lighting around perimeter of cabinet
Solid door models have a glossy black finish on the door
The superior alarm function available on top models notifies of temperature or humidity issues, as well as need for filter change.
TECHNICAL SPECS
Technology & Features
- Twin Process - thermal regulation system offers temperature consistency from 10° to 14°C
- All doors are reversible.
- Lock & Key standard.
- Hand de Sommelier (MDS) shelves (unless otherwise indicated)
- Classic cabinets offer FG - Full Glass Door
Cabinet Construction
- Cabinet walls contain at least 7cm thick Cellular Quality Insulation which has the same insulation value of up to 2 metres of natural earth soil.
- Passive ventilation with a filter control, (Charcoal).
- "Vibration Exclusion System" (VES), a powerful anti-vibration system.
Temperature Supervision
For maturing, the wine must be protected throughout from any excessive variations in temperature. This is why the electronic regulation system offers control down to a 10th of a degree. An LCD display allows you to instantly read the temperature.

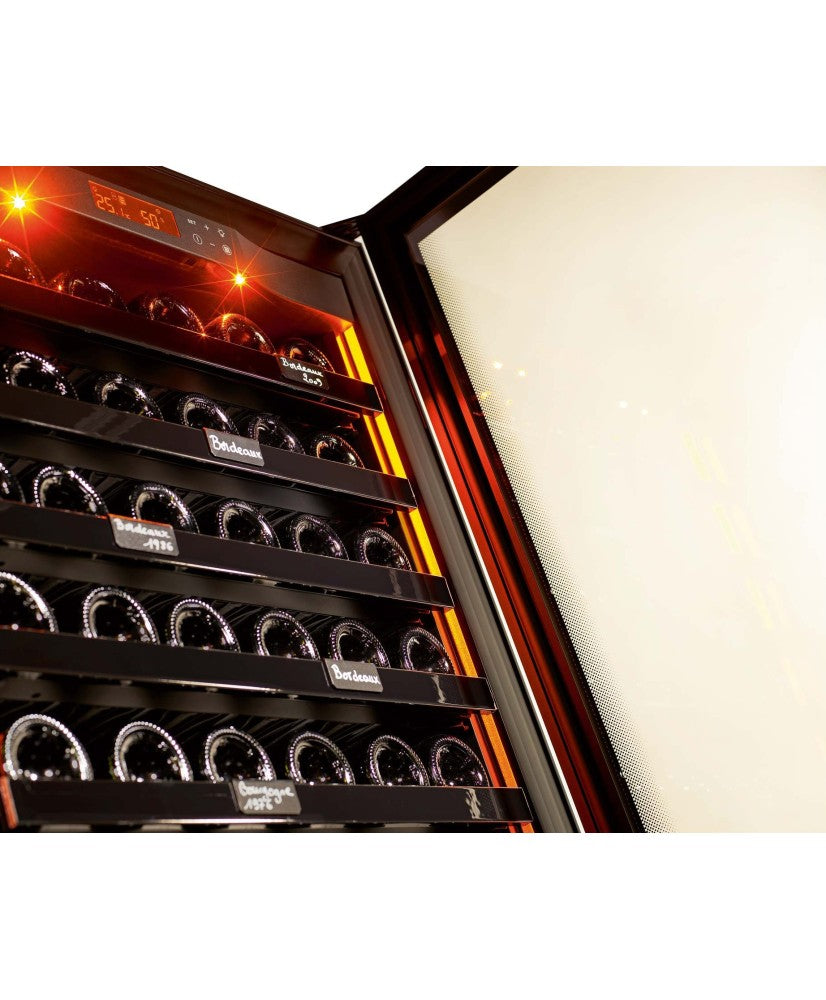

Glass Door
EuroCave FG - Full Glass Doors are constructed with two sheets of 4mm tempered glass that are separated by a 2cm thick vacuum layer. This insures excellent insulation, which is a class leader. Also an U.V. screening process had been applied to the glass to protect your wine from light. As a side note, these doors are reversible.
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
White Glove Delivery might be available for your location, and will be confirmed by a Rosehill representative upon order confirmation.
Warranty
Press Release - Vibrations
The EuroCave products guarantee:
Each EuroCave wine cabinet has an individual identification number which enables tracing of its origin and authenticity. EuroCave will only warranty cabinets sold by authorized dealers:
Warranty for all EuroCave cabinets offered directly by EuroCave:
-2 year parts and labour, 5 years on the compressor, 10 years rust proofing
Warranty for Revelation Series ONLY - 5 years parts and labour, 10 years rust proofing/corrosion
PRODUCT MANUALS
Taking care of your wine cabinet
Unsure of which style of wine cabinet would suit you best? Take a look at EuroCave's guide on:
How to Choose Your Wine Cabinet.
Comparison Chart of Revelation, PURE and Premiere
PURE SERIES
REVELATION SERIES
EuroCave Revelation Brochure
V-REVEL-L Information Sheet
V-REVEL-S Information Sheet
PREM SERIES
Prem Manual
Prem L (Spec Sheet)
Gamme Premier
EuroCave Dual Zone 6170DPremium (Spec Sheet)
Wine cabinets installations Première, Pure and Revelation Flush-fitting diagrams
Cabinet Loading with Presentation Shelf Options
