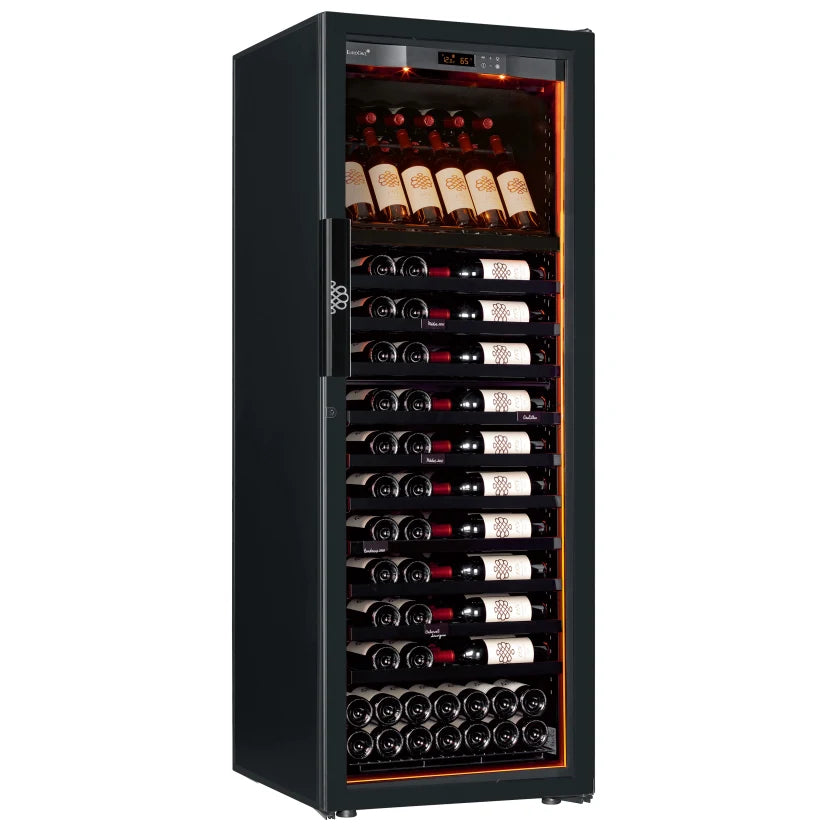

EuroCave Revelation - Presentation Layout

Temperature: Above-average insulation ensures that your wine cellar maintains a constant temperature, allowing your wine to reach its full potential.

Hygrometry: Its 6 cm insulation allows the compressor to start up less often, and therefore to dry out your cellar less.

Absence of vibration: Like a jewel box, the “Main Du Sommelier” supports hug and isolate each bottle from any disturbance (antivibration technology)

Air circulation: Constant air renewal prevents mold in your cellar. EuroCave cellars benefit from a 100% active window well ventilation system, making them very similar to natural cellar ventilation.

Darkness: Ultraviolet (UV) rays in natural and artificial light are harmful to wine. That’s why EuroCave offers you solid or glass doors with double anti-UV thermos to protect your bottles.

TEMPERATURE SETTINGS
TEMPERATURE ZONE 1 zone
TEMPERATURE RANGE 5°C to 20°C / 41°F to 68°F

DIMENSIONS H 71 ⅞’’ x W 26 ¾’’ x D 27 ¼’’*²
H 1825mm x W 680mm x D 690mm*²

REQUIRED BUILT-IN DIMENSIONS H 72 ⅞’’ x W 28 ¾’’ x D 28 ⅝’’
H 1851mm x W 730mm x D 728mm

SIZE & CAPACITY

SIZE Large

CAPACITY Up to 166 bottles*

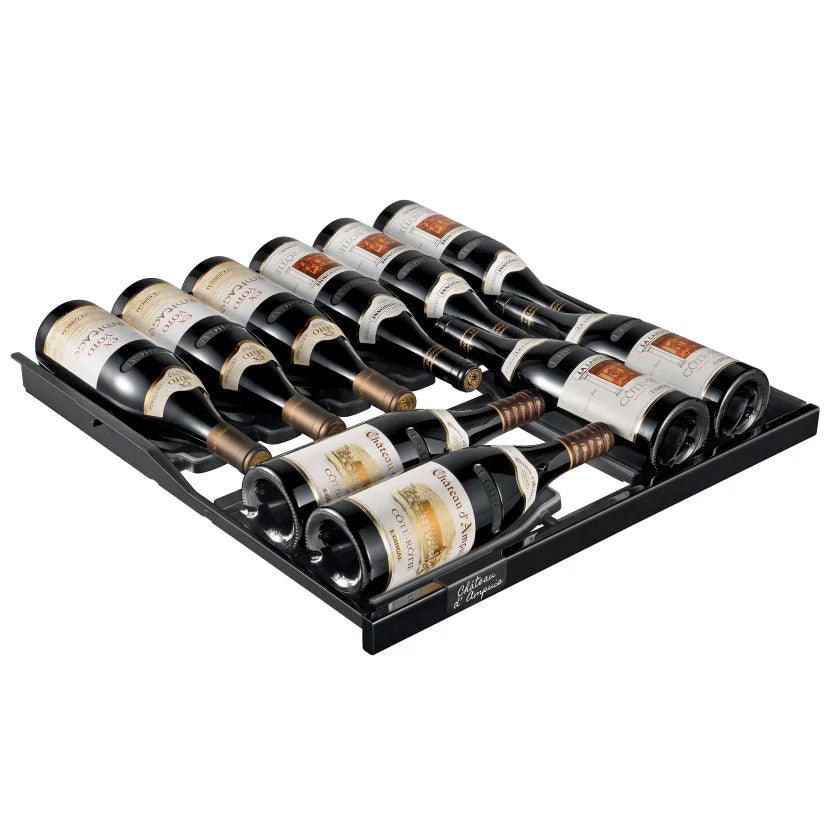

CONFIGURATION 11 ACMS2B sliding shelves

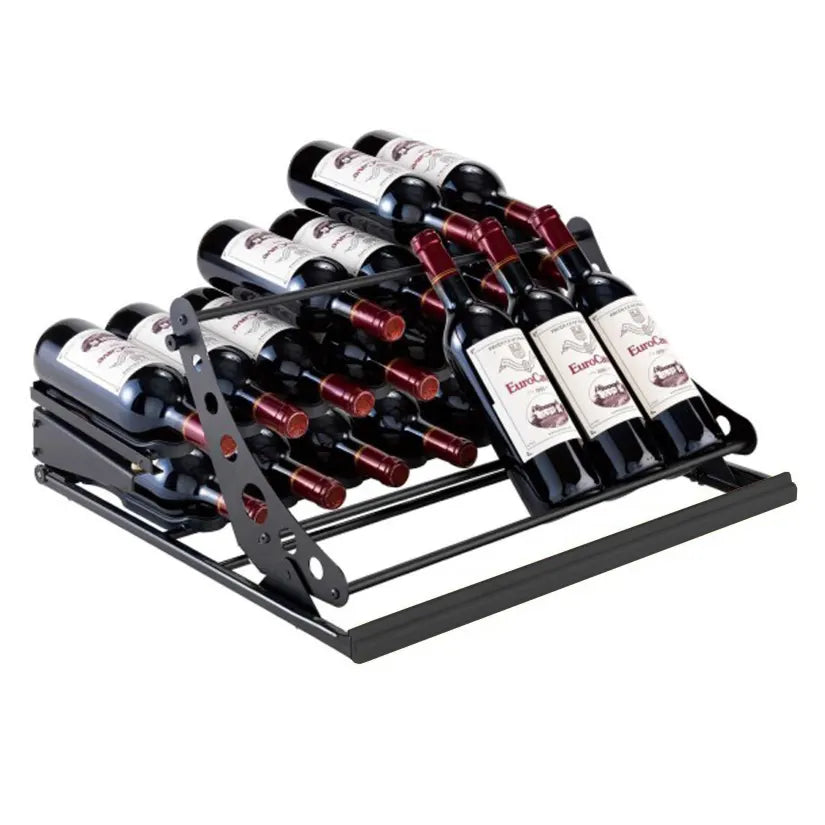

1 AOPRESAR2 presentation shelf

TECHNICAL SPECIFICATIONS

BUILT-IN & FREE-STANDING Yes

DOOR TYPE Double-thermos (argon) anti-UV full glass door

REVERSIBLE DOOR Yes

SECURITY LOCK Yes

LIGHTING LED Amber

ACTIVE CHARCOAL FILTER 100% active

ALARMS
Probe problem
Temperature default
Humidity default
Charcoal filter change (365 days)

CONTROL PANEL Touch-sensitive LED display

SHELVES Ball-bearing slides

INTERIOR WALLS Embossed aluminum

EXTERIOR CLADDING Black laminate panel

ISOLATION Polyurethane foam 6cm thick

ACOUSTIC EMISSION 38 dB(A)

VENTILATION TYPE Internal air circulation fan

COMPRESSOR Embraco Inverter - R600a gas

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

White Glove Delivery might be available for your location, and will be confirmed by a Rosehill representative upon order confirmation.

The EuroCave products guarantee:

Each EuroCave wine cabinet has an individual identification number which enables tracing of its origin and authenticity. EuroCave will only warranty cabinets sold by authorized dealers:

Warranty for all EuroCave cabinets offered directly by EuroCave: 2 year parts and labour, 5 years on the compressor, 10 years rust proofing

Warranty for Revelation Series ONLY - 5 years parts and labour, 10 years rust proofing/corrosion.

EuroCave Revelation
