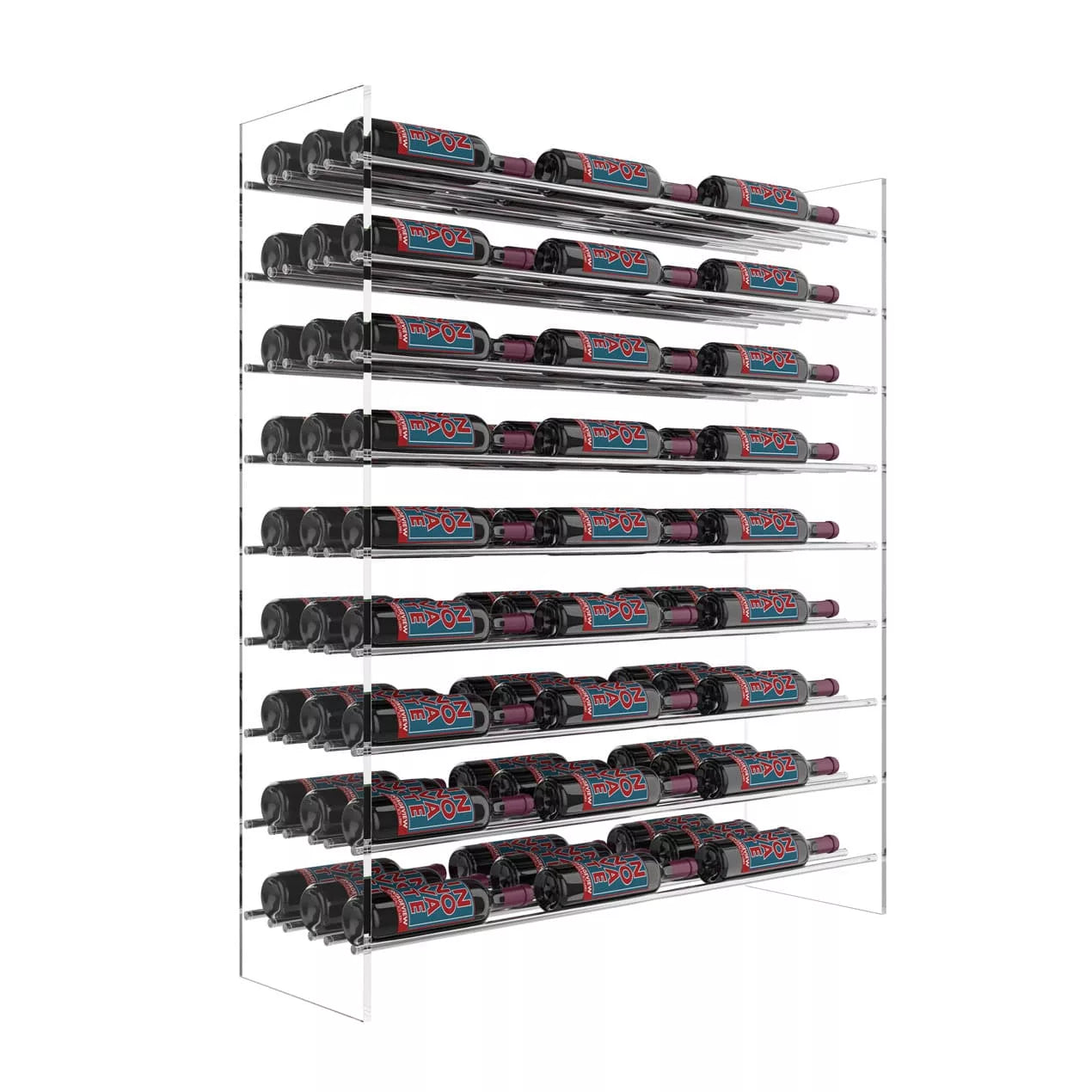

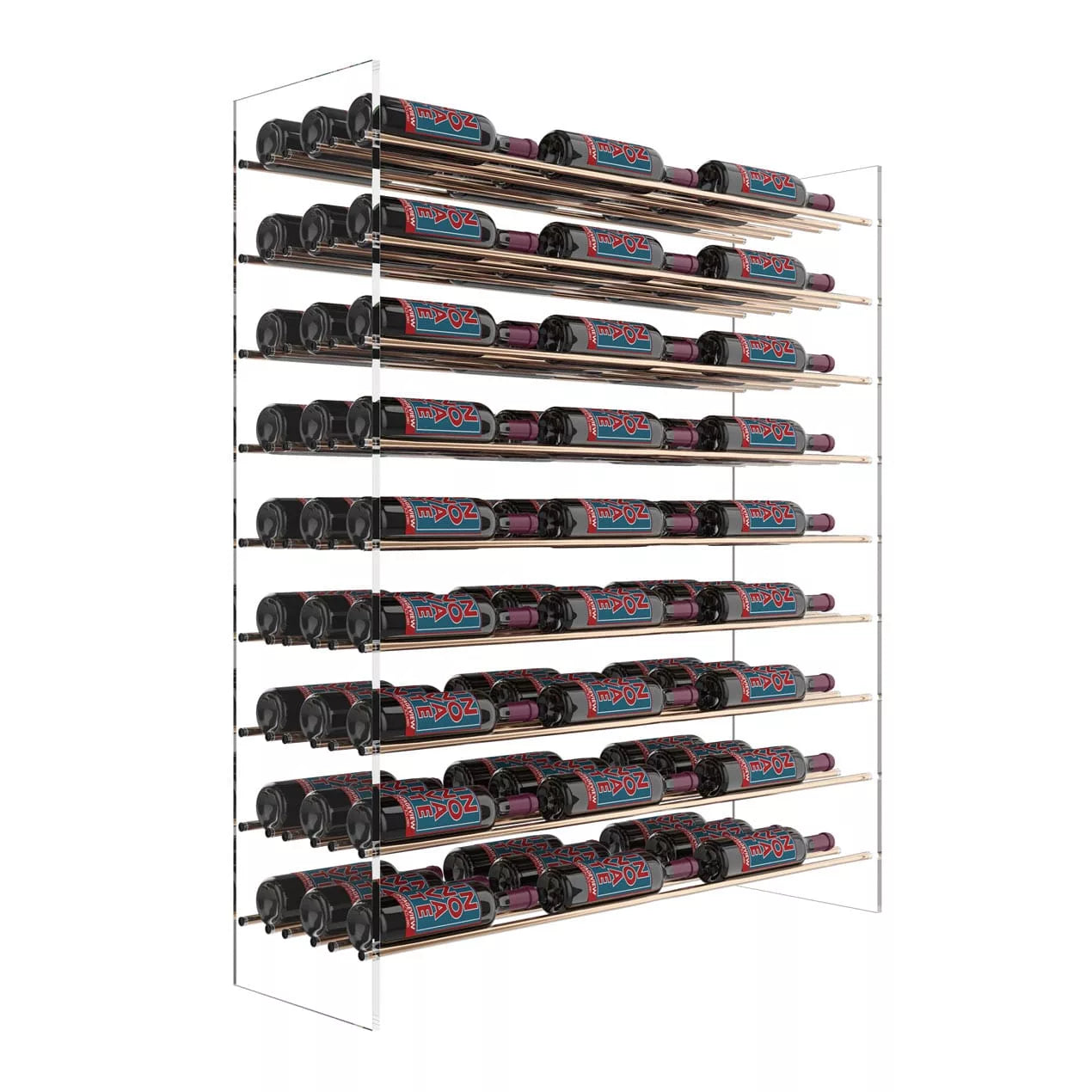

Evolution Freestanding Wine Rack 47 Base Kit

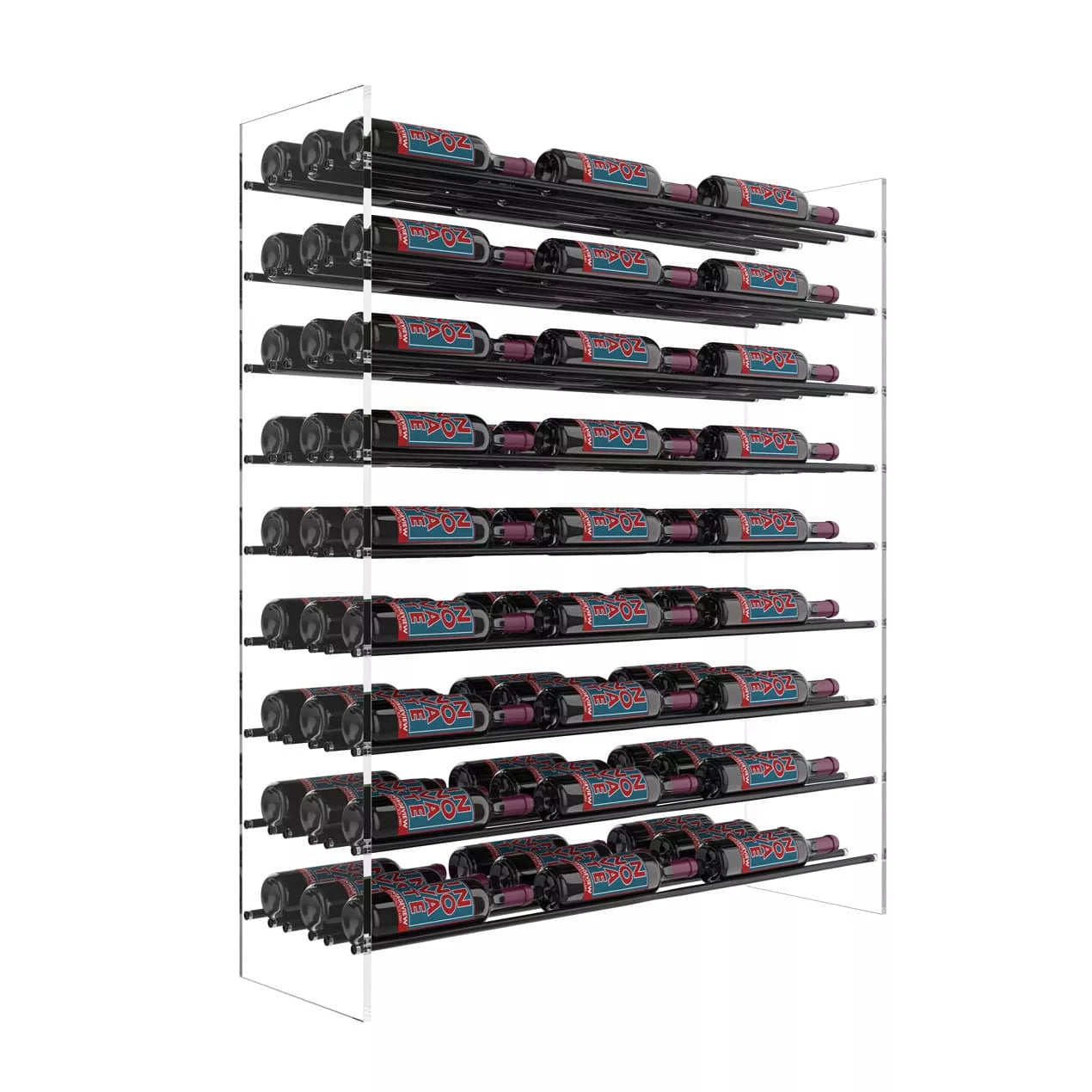

This configuration shows Metal rods secured between 4ft high acrylic support ends to securely hold wine bottles.

Label forward stand alone wine rack for home, restaurant or commercial application.

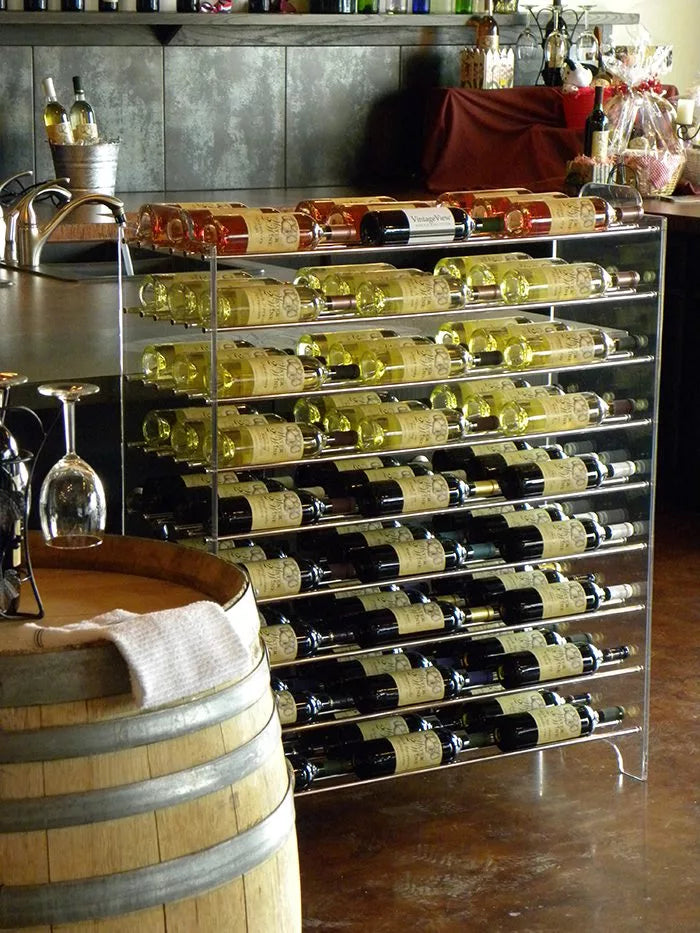

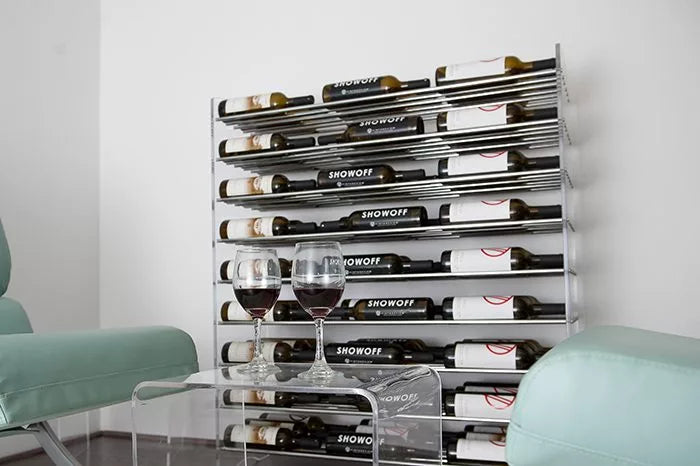

47" free standing wine rack can be nestled within a niche or left free standing.

The 4-foot option fits snuggly into spaces limited by size and holds 81 bottles of wine.

• Available storage for 81 750ml wine bottles
• Nine rows, three bottle deep
• 47" tall x 40 3/8"w x 13 1/2" deep

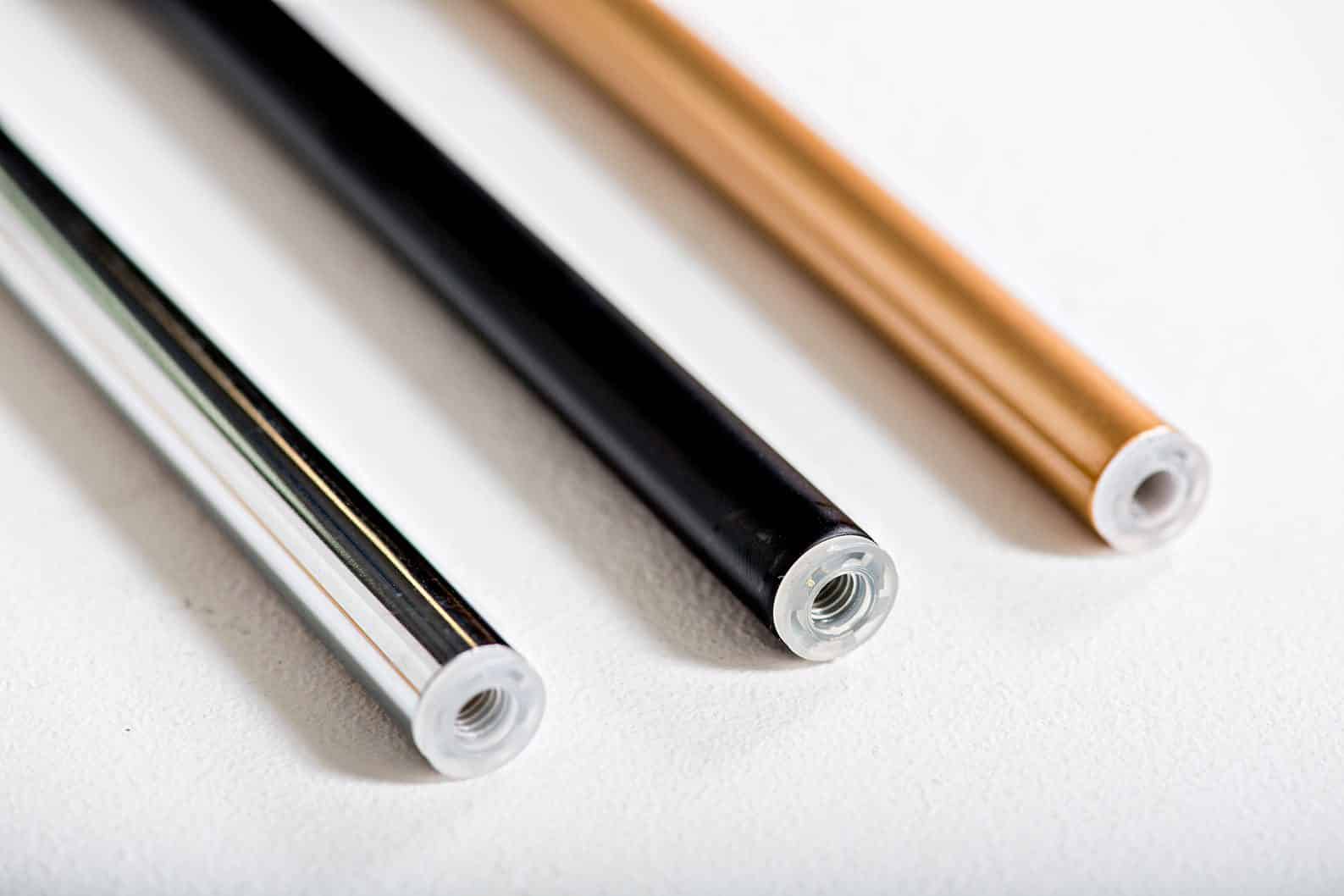

Made of steel rods and acrylic supports with a choice of finishes. Assembly required, but all holes are pre-drilled in the acrylic side support panels.

Evolution Series of Wine Racks also available with Floor Ceiling Mount Frames

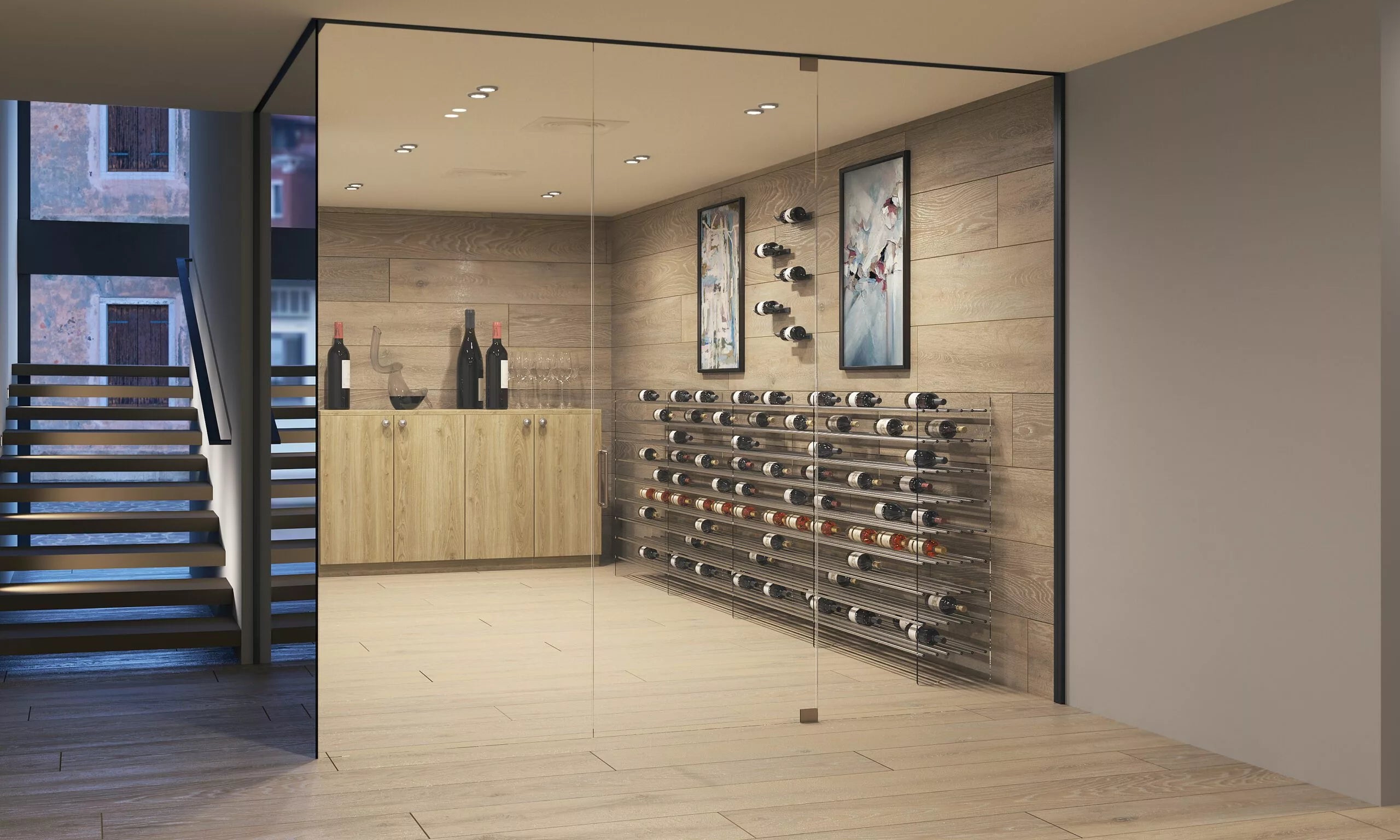

The Evolution Series of metal rods is also available with up to 10’ Floor Ceiling Mount Frames. The floor ceiling mount frame allows you to install racks where you are not able to fasten directly to the wall; like adjacent to glass or on a stone wall. This allows for appearance of floating wine rack ideal for commercial and residential wine cellar projects. The Evolution series divider also lends itself to being a room divider. Please note the maximum span is 4ft, but we can make the width smaller if you prefer.

Need the racks to cover larger space? Install multiple racks adjacent to one another.

DIMENSIONS & BOTTLE CAPACITY:

• Base: 47" x 40 1/2" x 12-1/8". Holds up to 81 bottles (750ml and 1.5L)), label forward
• With one Extension: 47" x 80 1/2" x 12-1/8". Holds up to 162 bottles (750ml and 1.5L)), label forward
• With two Extensions:47" x 120 1/2" x 12-1/8". Holds up to 243 bottles (750ml and 1.5L)), label forward
• With three Extensions:47" x 160 1/2" x 12-1/8". Holds up to 324 bottles (750ml and 1.5L)), label forward
• Additional Extension Units, which share a support wall, to increase capacity by 81 bottles every 40"

Label forward stand alone wine rack for home, restaurant or commercial application.

47” tall this free standing wine rack can be nestled within a niche or left free standing. We strongly suggest that all 72" & 92" towers are secured to the wall via our clamps or optional Floor Ceiling Mounts.

When you’re ready to shine some light — both literally and figuratively — onto the bottles of wine that fill your home, restaurant or store, you’re ready to "evolve" with the help of this evolutionary freestanding showcase wine rack. The acrylic sides allow natural and LED light to float through the display. Accents any modern looking wine cellar and does NOT need to be fastened to the wall

Made of steel rods and acrylic supports with a choice of finishes. Assembly required, but all holes are pre-drilled in the acrylic side support panels. Rods available on their own to us with customized side panels, please inquire for custom quote.

Each extension comes with Wall mounted anchors. While this system is promoted to be freestanding, we strongly suggest that you fasten these units to the wall. (or floor ceiling mount, with optional hardware).

Our extension kits all come with brackets to attach to the wall. Even for the stand alone base unit, we suggest that you fasten the 72” or 92” units to the wall as well.

47” Base holds 81 bottles, each extension holds 81 bottles

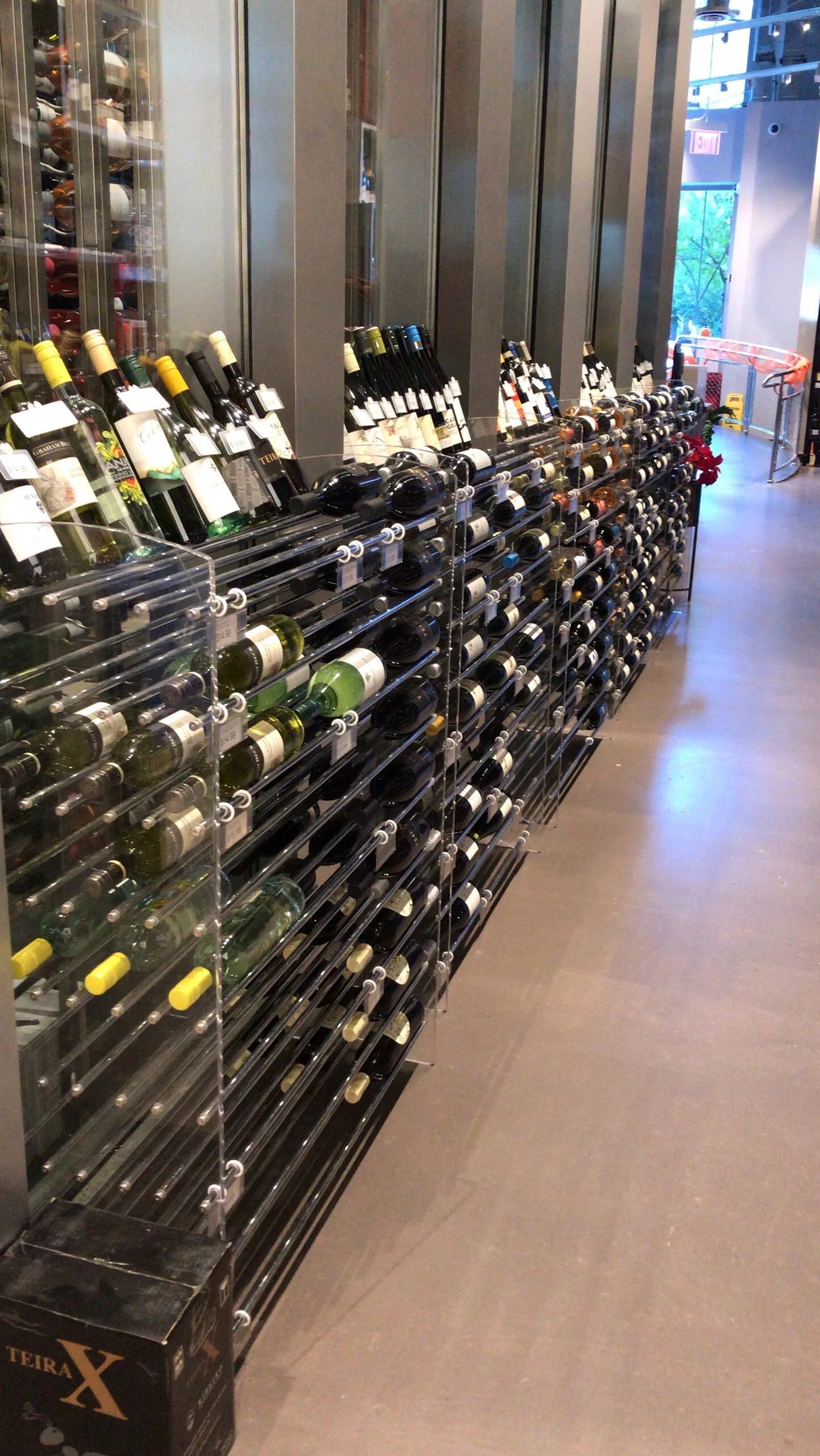

Evolution Wine Tower 47 (with one extension), 162 bottle clear acrylic panels.
Evolution Wine Tower 47 (with two extensions), 243 bottle clear acrylic panels.
Evolution Wine Tower 47 (with three extensions), 324 bottle clear acrylic panels.
Evolution Wine Tower 47 (with four extensions), 405 bottle clear acrylic panels.

72” Base holds 126 bottles, each extension holds 252 bottles
Evolution Wine Tower 72 (with extension), 252 bottle clear acrylic panels.
Evolution Wine Tower 72 (with two extensions), 378 bottle clear acrylic panels.
Evolution Wine Tower 72 (with three extensions), 504 bottle clear acrylic panels.
Evolution Wine Tower 72 (with four extensions), 630 bottle clear acrylic panels.

92” base holds 324 bottles, each extension holds 324 bottles
Evolution Wine Tower 92 (with extension), 324 bottle clear acrylic panels.
Evolution Wine Tower 92 (with two extensions), 486 bottle clear acrylic panels.
Evolution Wine Tower 92 (with three extensions), 648 bottle clear acrylic panels.
Evolution Wine Tower 92 (with four extensions), 810 bottle clear acrylic panels.

Evolution Series of Wine Racks also available with Floor Ceiling Mount Frames

The Evolution Series of metal rods is also available with up to 10’ Floor Ceiling Mount Frames. The floor ceiling mount frame allows you to install racks where you are not able to fasten directly to the wall; like adjacent to glass or on a stone wall. This allows for appearance of floating wine rack ideal for commercial and residential wine cellar projects. The Evolution series divider also lends itself to being a room divider. Please note the maximum span is 4ft, but we can make the width smaller if you prefer.

Need the racks to cover larger space? Install multiple racks adjacent to one another.

Each extension comes with Wall mounted anchors. While this system is promoted to be freestanding, we strongly suggest that you fasten these units to the wall. (or floor ceiling mount, with optional hardware)

Our extension kits all come with brackets to attach to the wall. Even for the stand alone base unit, we suggest that you fasten the 72” or 92” units to the wall as well.

The shelf sits on the rods and you’d just remove the rods above so you can fit boxes or whatever you’re looking to put on top. They can go anywhere on the tower. The clamp is recommended for all towers.

Here are some good things to know regarding the clamp or securing the tower:

The Wall Clamp will pinch the panel to hold it in place but works best when positioned directly over a Wine Rod.

This relationship between the E1 Wine Rod and E1 Wall clamp is important because if the unit were to tip over the Wine Rod would need to move past the Wall Clamp to do so. So, it is an extra layer of protection besides the clamp pinching the panel:

Keeping the Wall Clamp over the Wine Rod; the maximum distance from the wall to the panels’ edge is ½” :

This means that if the obstruction on the wall protrudes ½” or less where it aligns with the panel; you are good.

Additionally, the max distance between the edge of the panel and the Wine Rod is 3/4”:

Coupled with the ½” max offset for the clamp, this means that if the obstruction on the wall protrudes 1-1/4” or less between panels, you are good.

96” and up panels are thicker and require a different clamp, max offset between the panel edge and the wall is ¾”

Lastly there was a question about floor anchors. There is the simple solution:

This is an L bracket, they are sold in any hardware store and cost a few bucks. Client would just need to be mindful of the floor material to get the appropriately sized holes for the anchor they want to use. Bracket can be positioned under the unit for minimal visibility. Panel can be drilled in to with a screw at low speed.

Alternatively, there are custom options for floor mounting. We can pre-drill the panels to receive the L-Bracket with nut and bolt combo, we can fuse a flat plate of acrylic at the bottom that can have holes for floor anchors, or we can often create a way to brace the unit from the ceiling.
