F01 Individual Bottle 8 Column Wine Rack

Assembly of these modular wine racks is easy. The vertical ladders come with bottle cleats already attached. The horizontal crosspieces have notches, which fit into the notches on the already assembled vertical ladders.

The 8 column wooden wine rack is available in 2 heights:

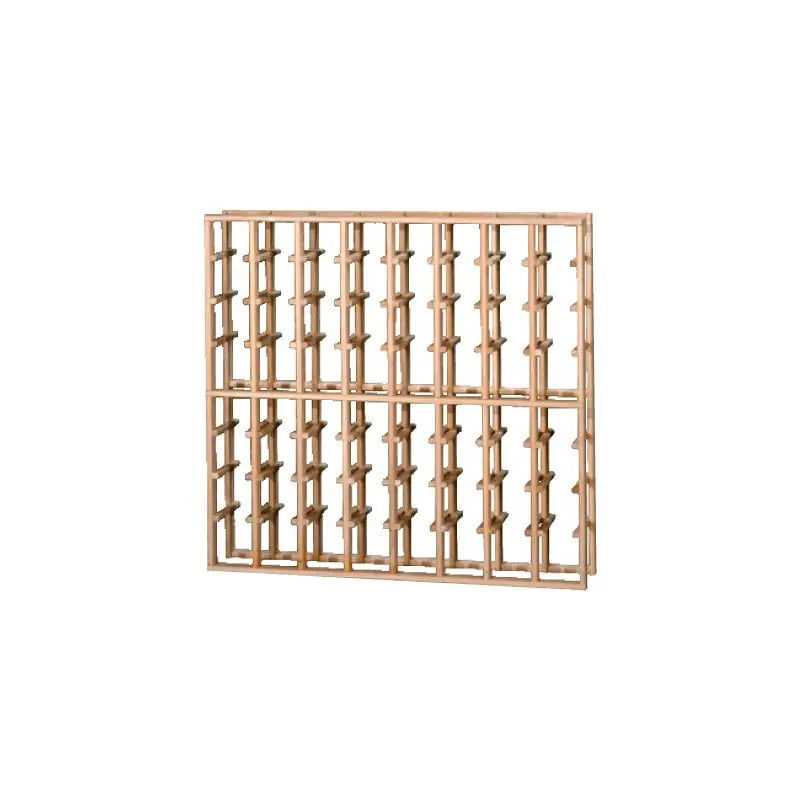

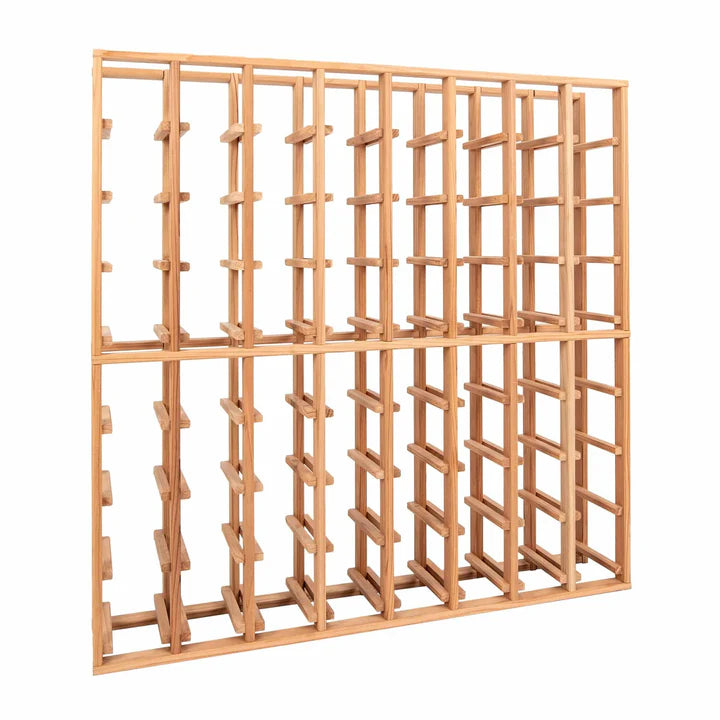

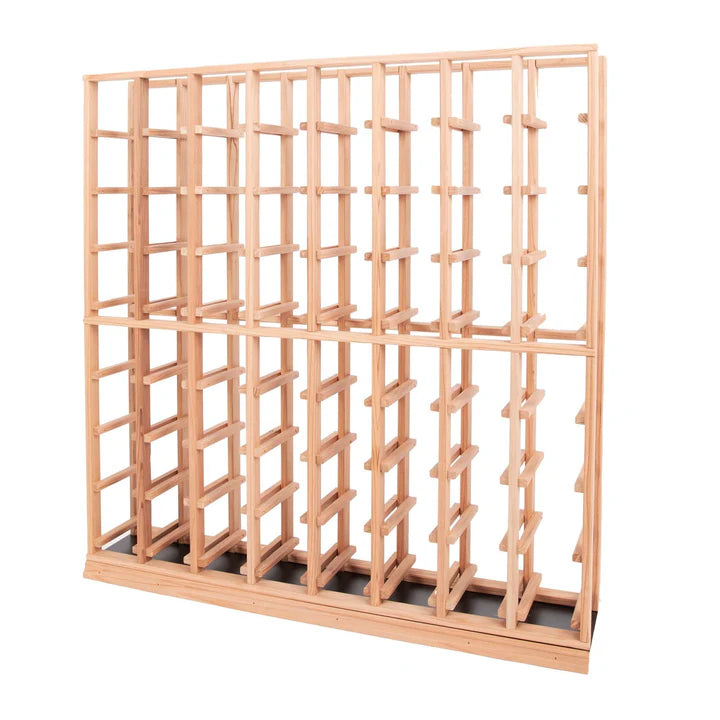

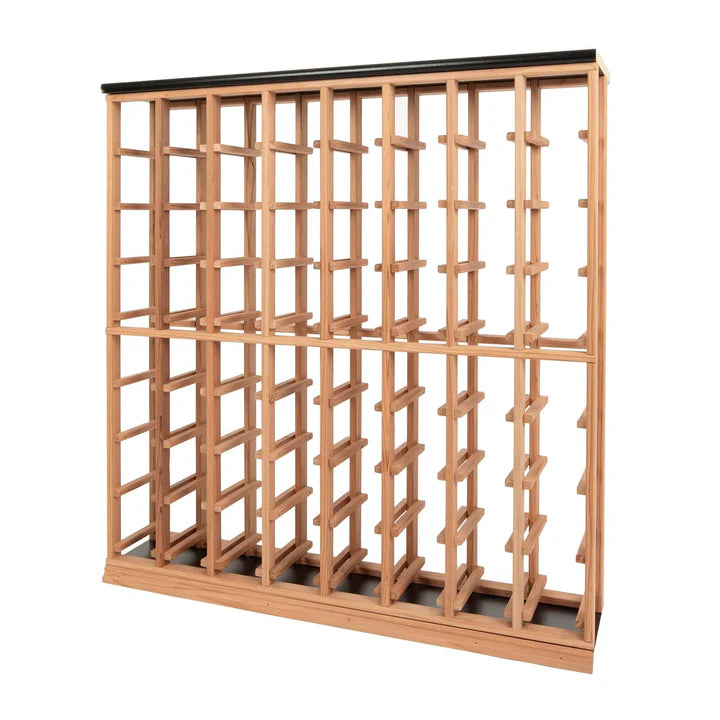

F01A measures 32"H x 32"W and holds 64 wine bottles

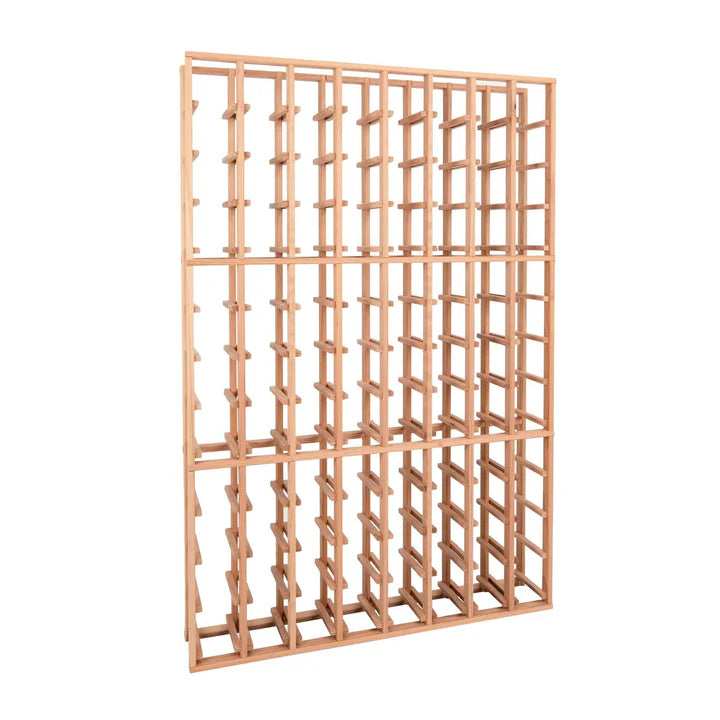

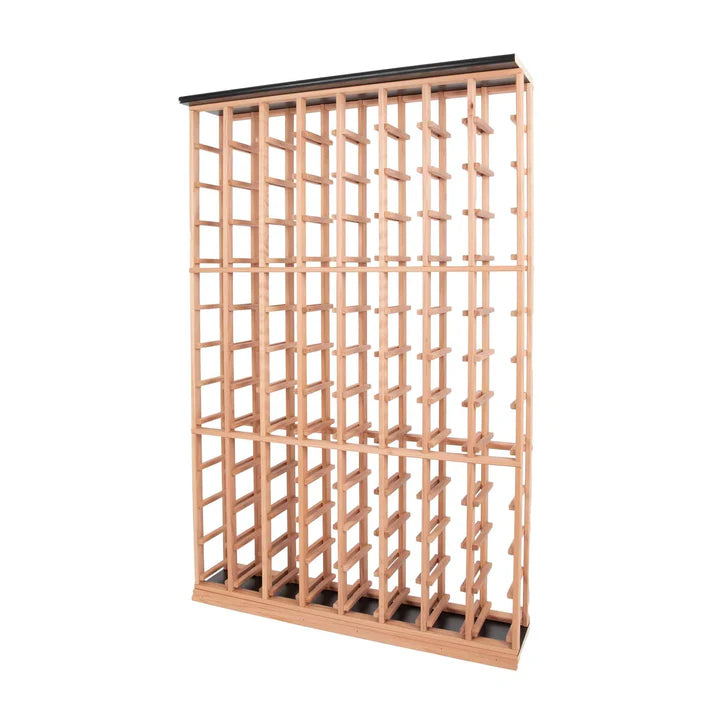

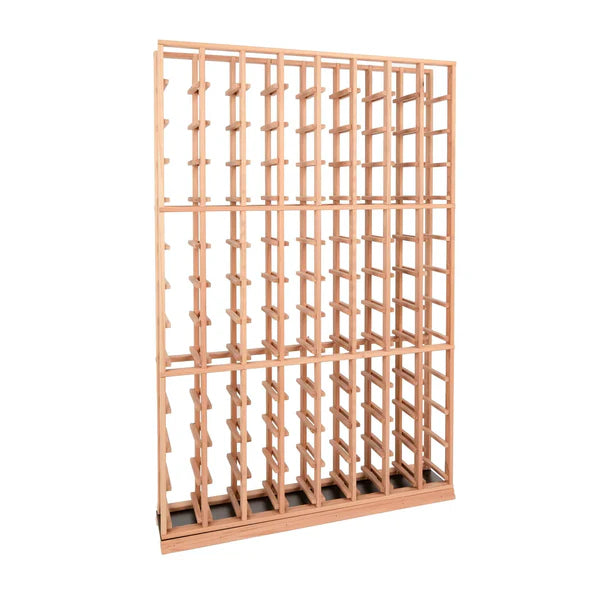

F01B measures 48"H x 32"W and holds 96 wine bottles

The individual bottle redwood wine rack is designed for the 750ml Bordeaux bottle size. We suggest that you have at least one other bin type wine rack to hold a larger format (750ml) bottle, perhaps a Half-Bin, Champagne/Magnum or a Diamond.

The opening for the bottles is as follows:
The row just below each cross bar is 3 1/2"w x 3"h, all other rows are 3 1/2"w x 3 1/4"h.

Complete your cellar design with our matching base trim and/or crown moulding finishing kits; select appropriate sizes to fit for your selected racks straight base/crown molding, curved corner base/crown molding, end cap for exposed sides

This California Redwood Modular Wine Rack system is ideal for the wine lover who wants a customized wine cellar at a great price!

Modular Redwood Wine Racking Accessories

No other wood wine rack system offers the same price and ease of installation as our modular California Redwood wine racks. The only tool required to assemble these wine racks is a hammer, and to install, a screwdriver.

Please note that these kits no longer include the 7/8" screws or nails.

We strongly suggest using a brad nailer or professional staple gun to put the racks together as opposed to the nails supplied. Using the nails included with the kits may cause unnecessary splitting of the wood. The wine racks must be fastened to the wall - They are NOT freestanding. The installation manuals are available on line, look at the specific racking pages to see the manual.

There are NO PLUGS on the front of these racks. A clean look with smooth radius edges for all of the wood makes this modular racking system look and feel professional.

This redwood wine rack system can expand to fill your space and can be added to at any time.

Incredible flexibility of heights

This stackable Modular Wine Rack System is available in 2 heights:

A(32") & B(48") to allow for a number of configurations. The racks are a total of 9" deep. The racks themselves are 6-1/4" deep and the hardware sits them 2-3/4" away from the wall for a total of 9".

Upon stacking the units you can achieve a variety of heights, please see chart above.

You can further enhance your cellar with our Modular Racking accessories:

• Pre-cut Modular Redwood Base & Crown molding Kits can be added to any wine racking configuration. This will add an additional 1" each for height or a possible extra 2" of height.

• All of our Modular Redwood wine racks can be installed double depth to increase bottle capacity (optional brackets required - F19/20C)

We are able to assist with the layout of your wine racks to make your cellar look its best.
We need your help designing so: Click here for assistance in designing your cellar.

For a comparison of Modular California Redwood wine racks, Premium wine rack kits, and custom wine racks. Click here for information.

Shipping prices are indicated in the shopping cart and will be more to your advantage as you order more racks.

If you would like a cooling unit as well shop our wine cellar cooling units.

Modular Redwood Wine Racks are readily available for shipment to destinations within the USA and Canada. Redrack wood wine racks, Modular Redwood Racking are produced and shipped from Mississauga, ON, Ontario, Canada, L5T 1K4 with USA distribution center in Phoenix, AZ, Arizona, United States

Sample pieces to show the color of the redwood.

Assembly & Installation Guides

(F01 / F02 / F03) Individual Bottle Column Wine Racks
(F04) Curved Corner Wine Racks
(F05 / F06 / F07 / F08 / F09) Bin & Case Wood Wine Racks
(F12C) Wine Rack Display Top
(F13C) Hanging Stemware Rack
(F14C - F16C) Base / Crown & Molding
(F17 & F18) Curved Base / Crown & Molding
(F19 / 20C) Double-Deep Brackets

NOTE: We strongly suggest using a brad nailer or professional staple gun to put the racks together as opposed to the nails supplied. Using the nails included with the kits may cause unnecessary splitting of the wood.  1" - 1 1/8" finishing nailer.
