Helix Double Sided Wine Rack Post Kit 10 (modern floor-to-ceiling floating wine rack system)
Description

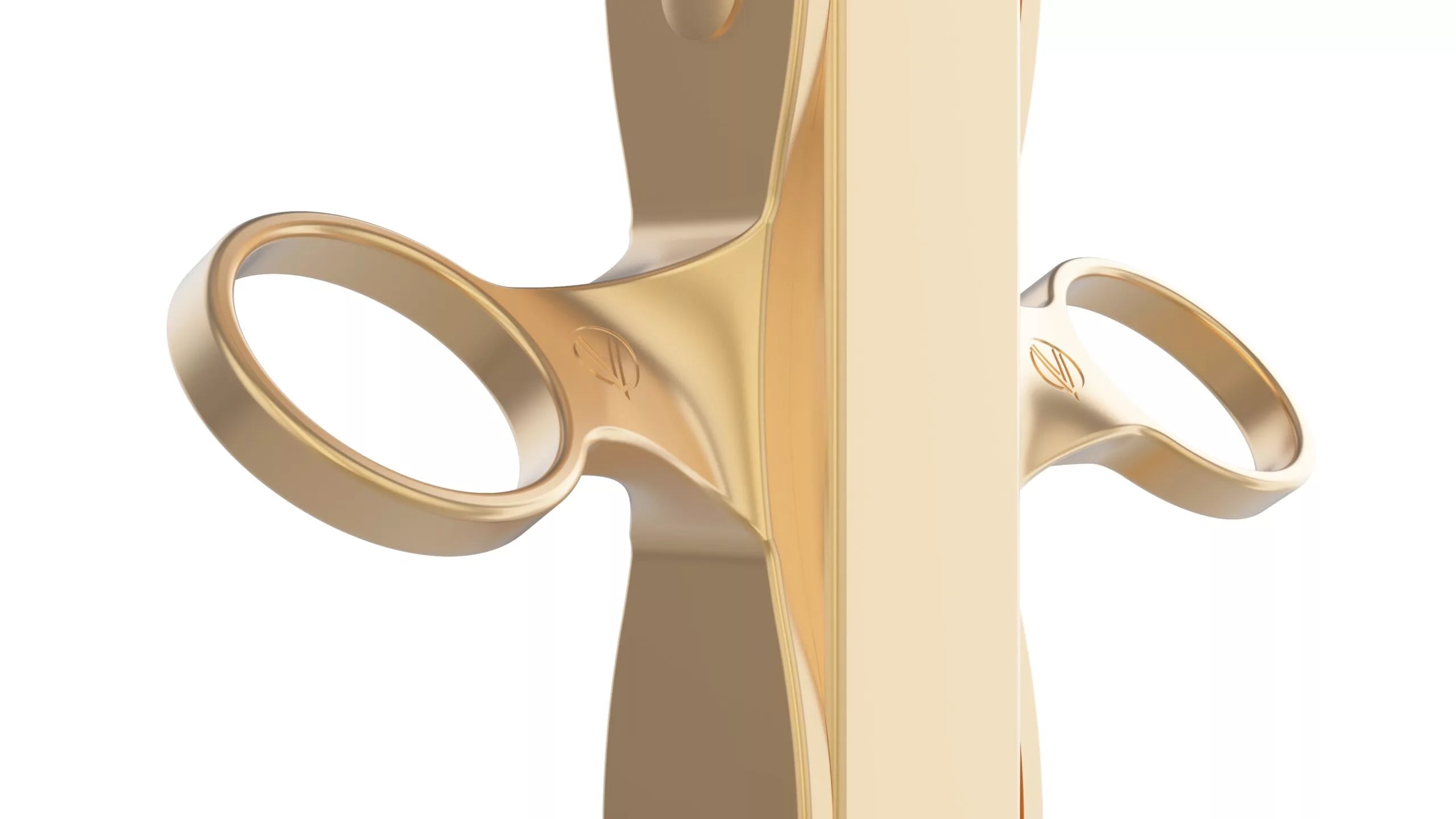

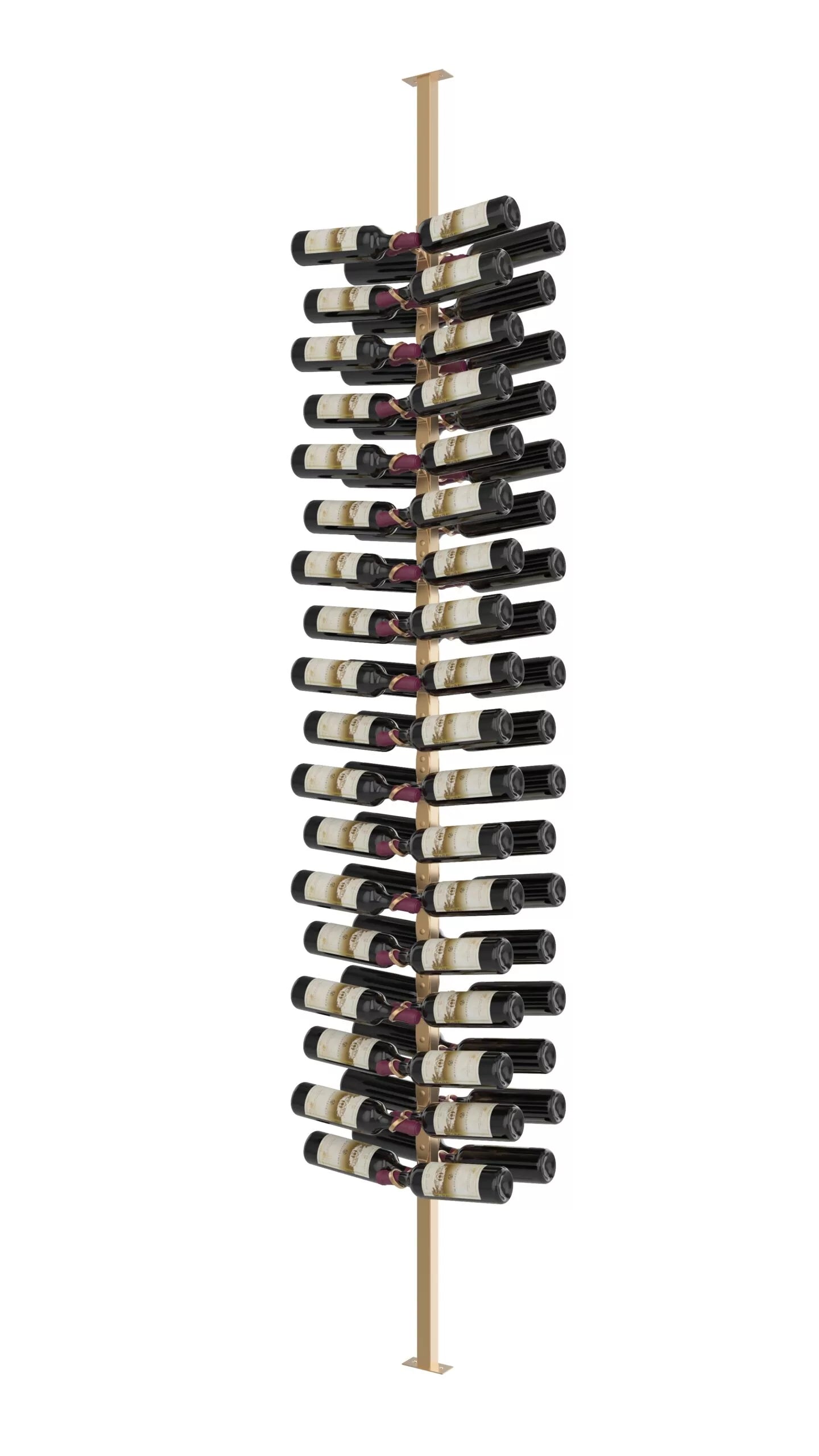

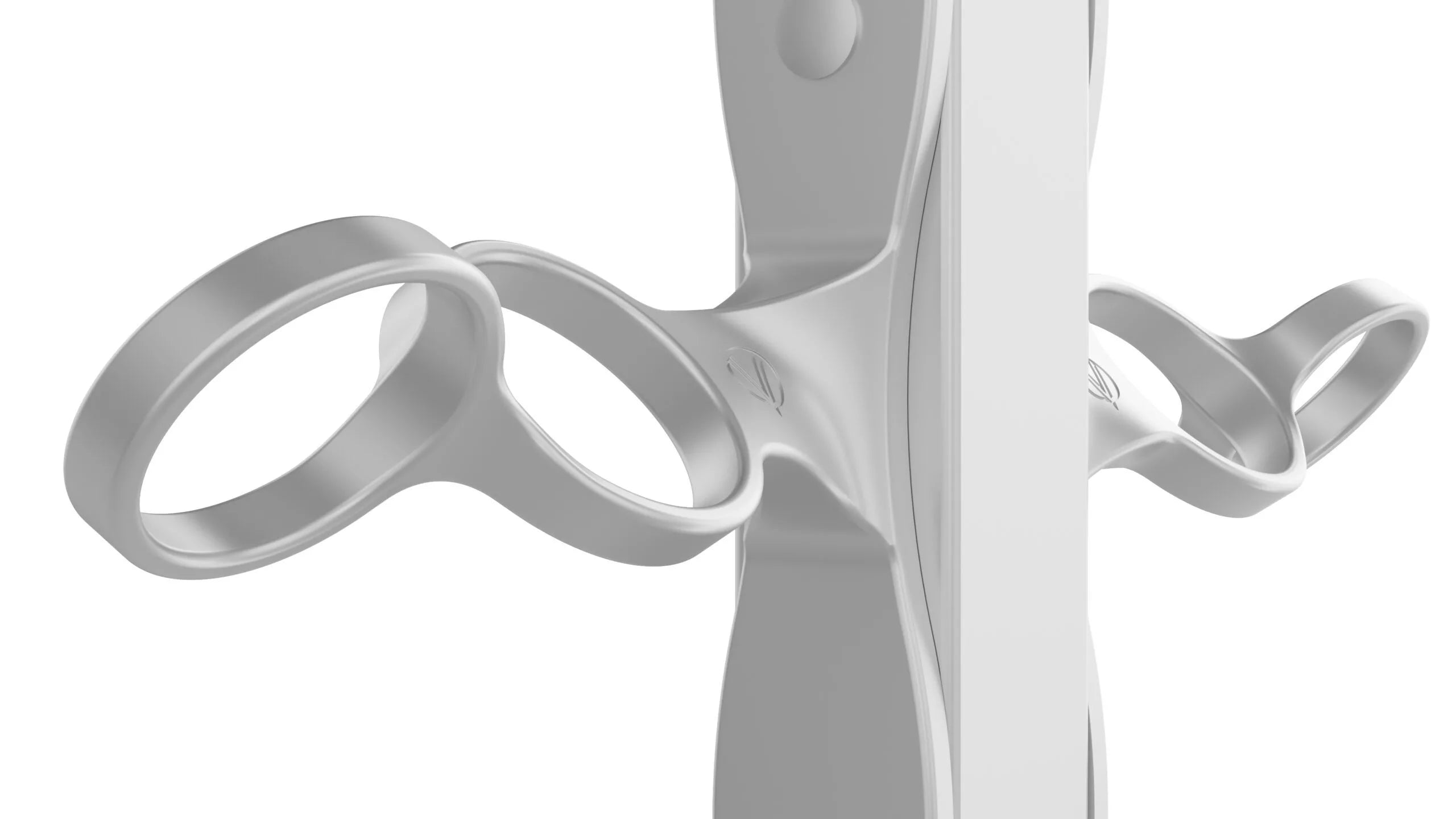

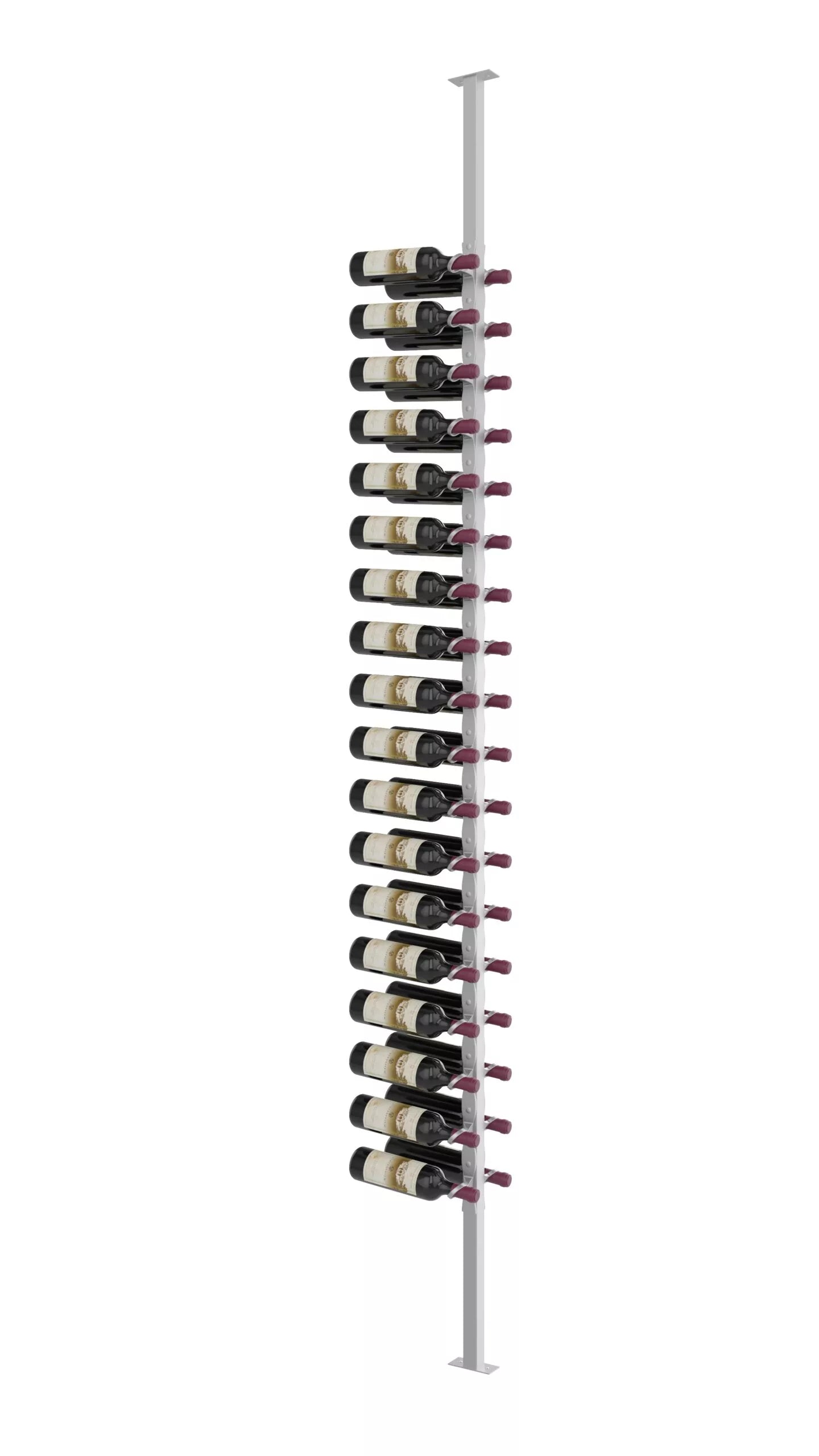

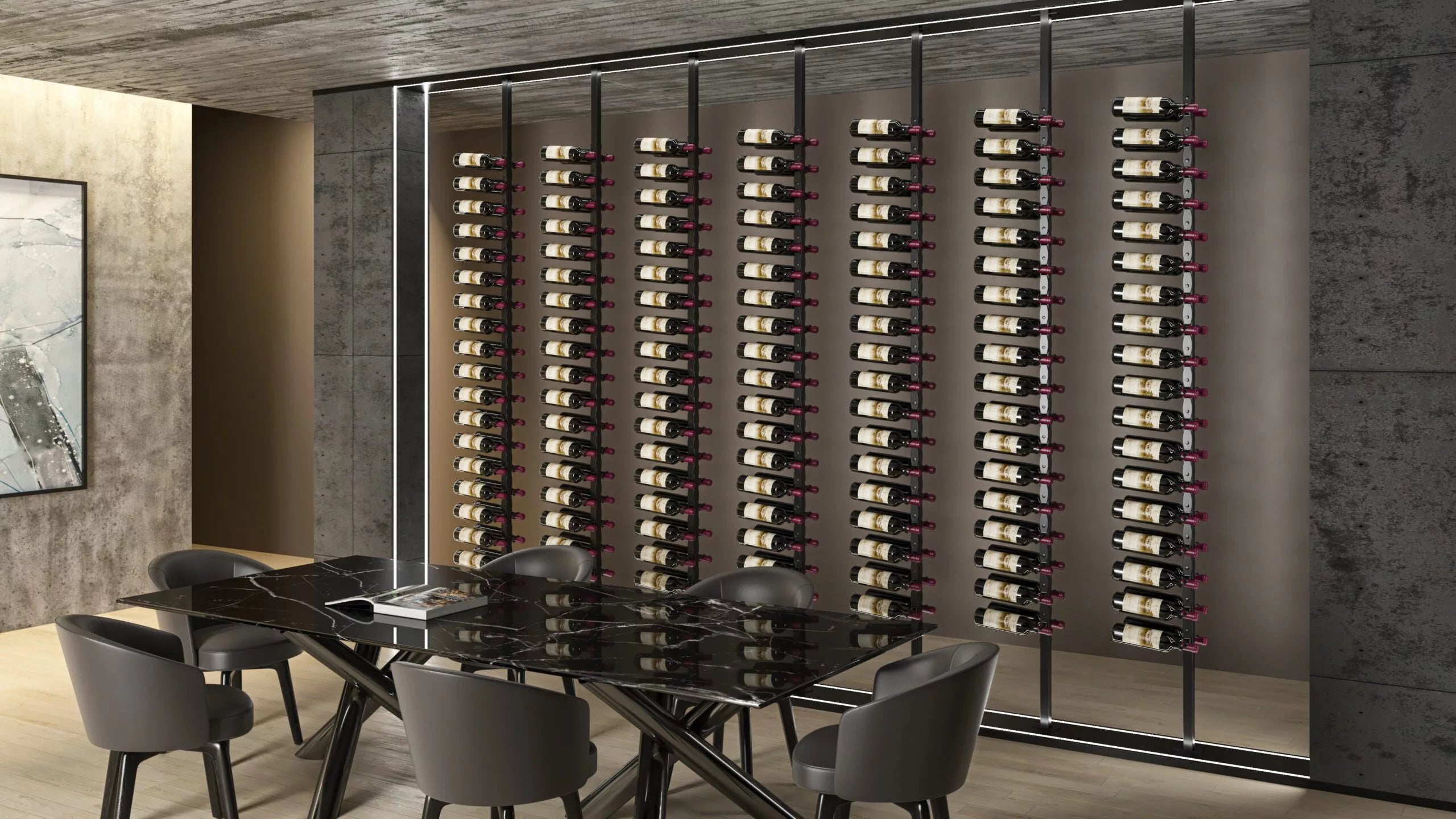

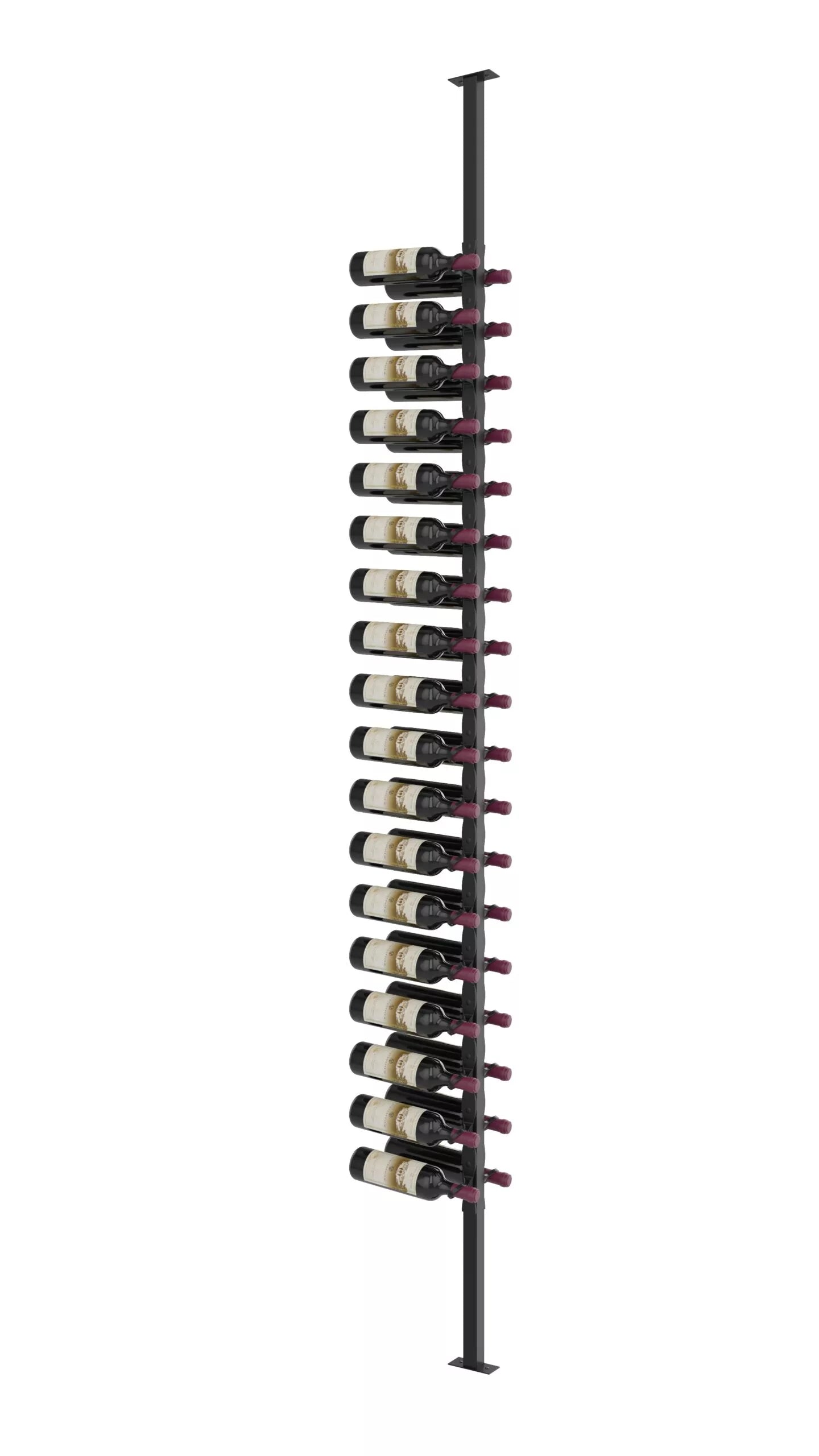

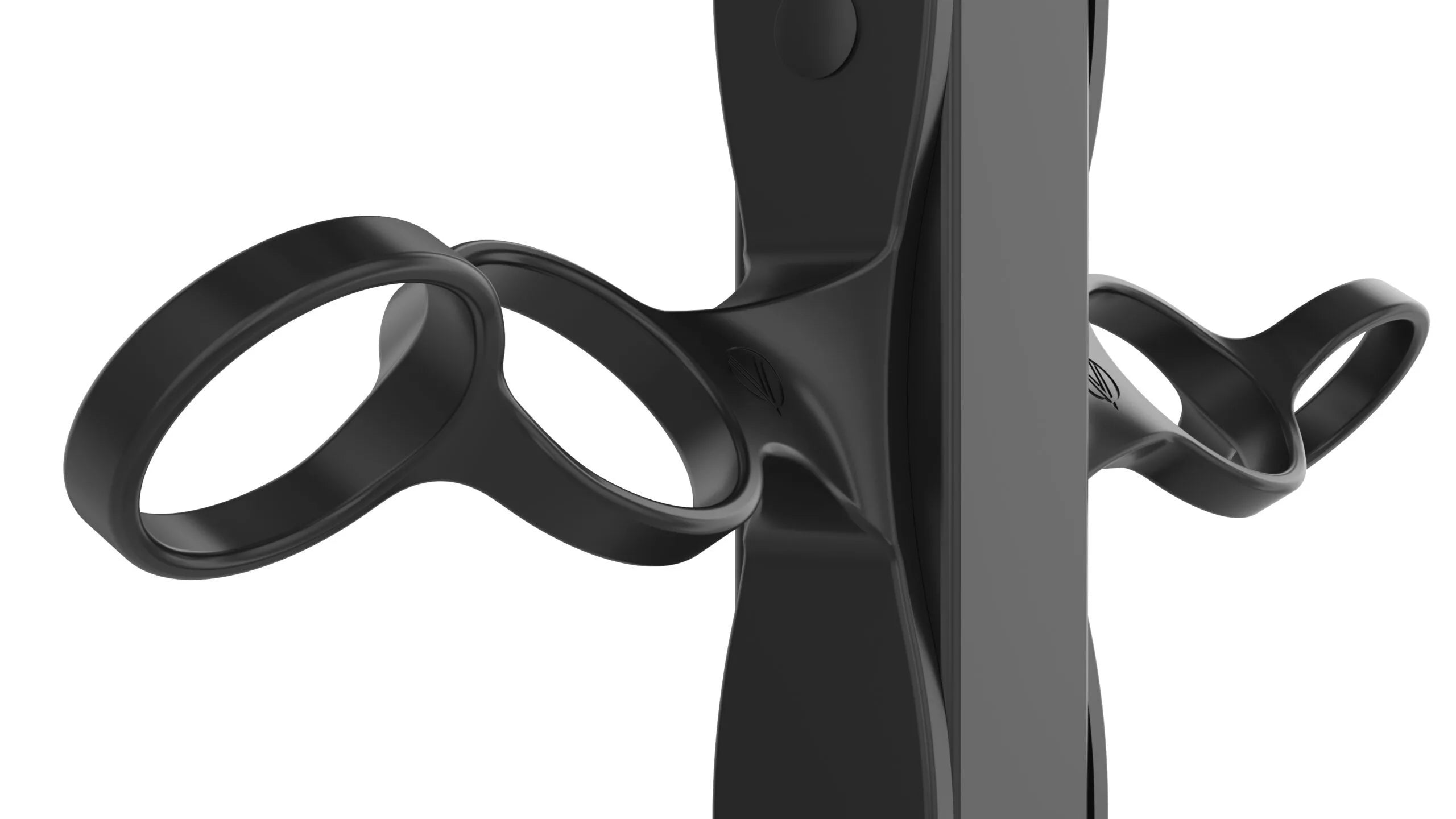

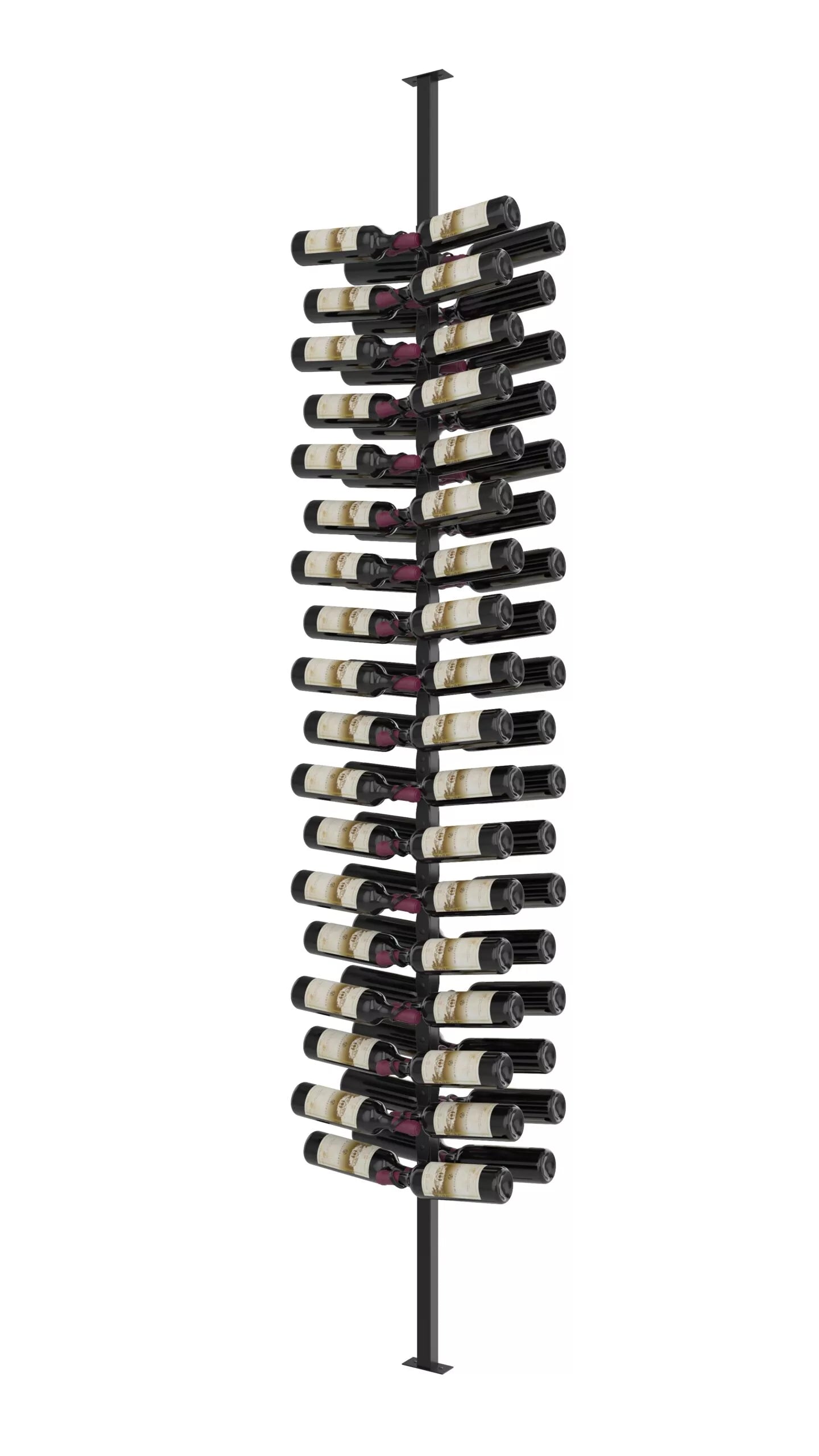

The Helix Doubled Sided Wine Rack Post Kit 10 is an innovative floor-to-ceiling wine rack that dangles standard and Champagne as if floating on air.
The Helix Doubled Sided Wine Rack Post Kit 10 is an innovative floor-to-ceiling wine rack that dangles standard and Champagne as if floating on air. This remarkable wine rack system offers the most minimalist way to store wine bottles and is available in two unique configurations.
The superior design of VintageView’s floating wine rack offers maximum strength and efficiency, with elegant curves to add additional visual interest. This wine rack looks almost as good without the bottle.
R Series
Modernizing the classic riddling rack wine storage style, the R Series features elegant wine rack options that hold wine bottles by the neck to create the most minimalist wine storage available on the wall or floating from celling.In The Box
Comes complete with (1) Helix Wine Rack Post, choice of Helix Single or Dual Wine Racks for both sides of the Post, easy-to-following installation instructions, and assembly hardware.
ÂÂ
Additional Information
| Included: | Additional Components: | Level |
|
(sold separately) |
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|  |  |
|
|  | Required Tools: |  |
|  |
|
 |
|  |
|
 |
|  |
|
 |
Important Note:
These installation instructions will assist you with installing the VintageView R Series Helix Wine Rack Post System (10’, 12’, or 15’ configurations) in standard floor-to-ceiling applications. The Post System is designed for ceiling heights of up to 122†(310cm), 144†(366cm), 180†(458cm), respectively. If using 5’ Post; or Angled, Hidden, Floor-to-Wall, and other non-standard Mounting Bases, refer to specific instructions for complete installation details.
Fasteners:
Fasteners for securing Helix Wine Racks are provided (self-drilling screws). When installing finished R
Series Post to the floor or ceiling, please use the following recommendations for fasteners:
1. IDENTIFY HARDWARE
Using the chart above, identify the proper floor/
ceiling hardware (not included) that will be needed for your specific project. For drywall surfaces, Vin- tageView recommend installing to joists or wood backing when available.
2. MEASURE INSTALLATION HEIGHT
Measure the ceiling height of the location of the
first Post. Subtract 1/2†(1.5cm) from the measurement.
** OPTIONAL 12’ or 15’ ADJUSTMENT**
3. INSERT EXTENSION
If using a R Series Extension Piece (SKUs: RS-FCP-2, RS-FCP-12, or RS-FCP-15), complete this step. Slide the Hollow Post Section onto the C-Channel of
the 2’ or 5’ Extension. It may require a Rubber Mallet to connect fully (Figure C, following page).
Instructions: Helix Wine Rack Post System
4. MARK THE POST
Before installing Helix Wine Racks, lay (1) Hollow Post Section overlapping (1) c-Channel Post Section (Figure A). Position the sections so that the measurement
from top to bottom of the base plates equals your measurement from Step 2. Mark any overlap on the Hollow Post Section (Figure A). Note: The Mounting Base inserted into the top Post Section can telescope out 2†(51cm).
5. CUT THE POST
Using a Metal Cutting Saw, squarely cut the Post Sec-tion at the mark (Figure B). Use a Metal File to smooth rough edges. Avoid abrasive saws; they may damage the finish.
Slide the Post Section onto the c-Channel of the lower Post (Figure C). It may require a Rubber Mallet to connect.
6. INSERT MOUNTING BASES
Insert (1) Mounting Base into the open end of the c-Channel Post Section. Mounting Base must be fully inserted into the Post. Secure the Mounting Base into the Post with (2) self-drilling screws through the pre-drilled holes (Figure D). Insert Mounting Base into
the Post Section. This will be the top of Post. Do not secure with screws yet to allow for height flexibility.
7. MARK MOUNTING HOLES
Place the Post in the desired location. Ensure it is plumb with a level and mark the mounting holes on both the ceiling and the floor. Set the Post aside and pre-drill any required pilot holes based on hardware selection.
8. MARK MOUNTING PLATE HOLES
Lay the first Helix Wine Rack in the desired location on the connected Post. Mark the (2) or (3) mounting hole locations. Lay all additional Wine Racks in place to mark all additional mounting holes (Figure E, following page). Use a Level to ensure Racks are level.
Set Racks to the side.
NOTE: Helix Wine Racks can be installed to one, two, three, or four sides of the Post. If consecutive Racks are assembled on adjacent sides, ensure wine bottles will not hit one another when stored.
Instructions: Helix Wine Rack Post System
[IMPORTANT] STACKING DUAL RACKS
**For Dual Wine Racks, alternate between Standard (VintageView logo faces RIGHT) and Mirror models to maintain pattern of bottle depth (Figure F).**
9. PRE-DRILL MOUNTING HOLES
Using the provided Drill Bit, pre-drill all marked mounting hole locations.
10. INSTALL THE RACKS
Attach the first Helix WIne Rack to the Post using (2) or (3) Self-Drilling Screws into the pre-drilled holes. Repeat to attach remaining Wine Racks (Figure G).
11. INSTALL MOUNTING HOLE COVERS
Snap Mounting Hole Covers in place.
12. INSTALL THE SYSTEM
Stand Post Assembly in the desired location and en-sure it is plumb both front and back and side-to-side.
Secure Post to the ceiling (Figure H) using (2) of the appropriate fasteners (not provided). Double check the Post is plumb and secure Post to the floor using (2) appropriate fasteners (not provided).
You can adjust the Mounting Base up to 2†(5cm) to meet the ceiling. Once the top Mounting Base is fully installed to ceiling, secure to Post using (2) self-drill- ing screws through pre-drilled holes (Figure I).
13. ADD WINE
Only the good stuff.
Shipping Information
Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to cancel your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further.ÂÂ
PRODUCT MANUALS
Maintenance and Care:
The R Series Helix Wine Rack Post is covered by a lifetime warranty against factory defects.
Helix Wine Racks should be regularly checked for tightness. Should any piece be found to be loose, remove mounting hole covers and tighten with a screwdriver until secure.
The R Series Helix Wine Rack Post may be cleaned with a dry cloth or compressed air. Use rubbing alcohol for stubborn stains or marks. Avoid household cleaners, chemicals, abrasive pads, or steel wool as they will damage the finish.
R Series Helix Wine Rack Post Install Guide
