Mini Ceiling Mount – Ductless Wine Cellar Cooling System

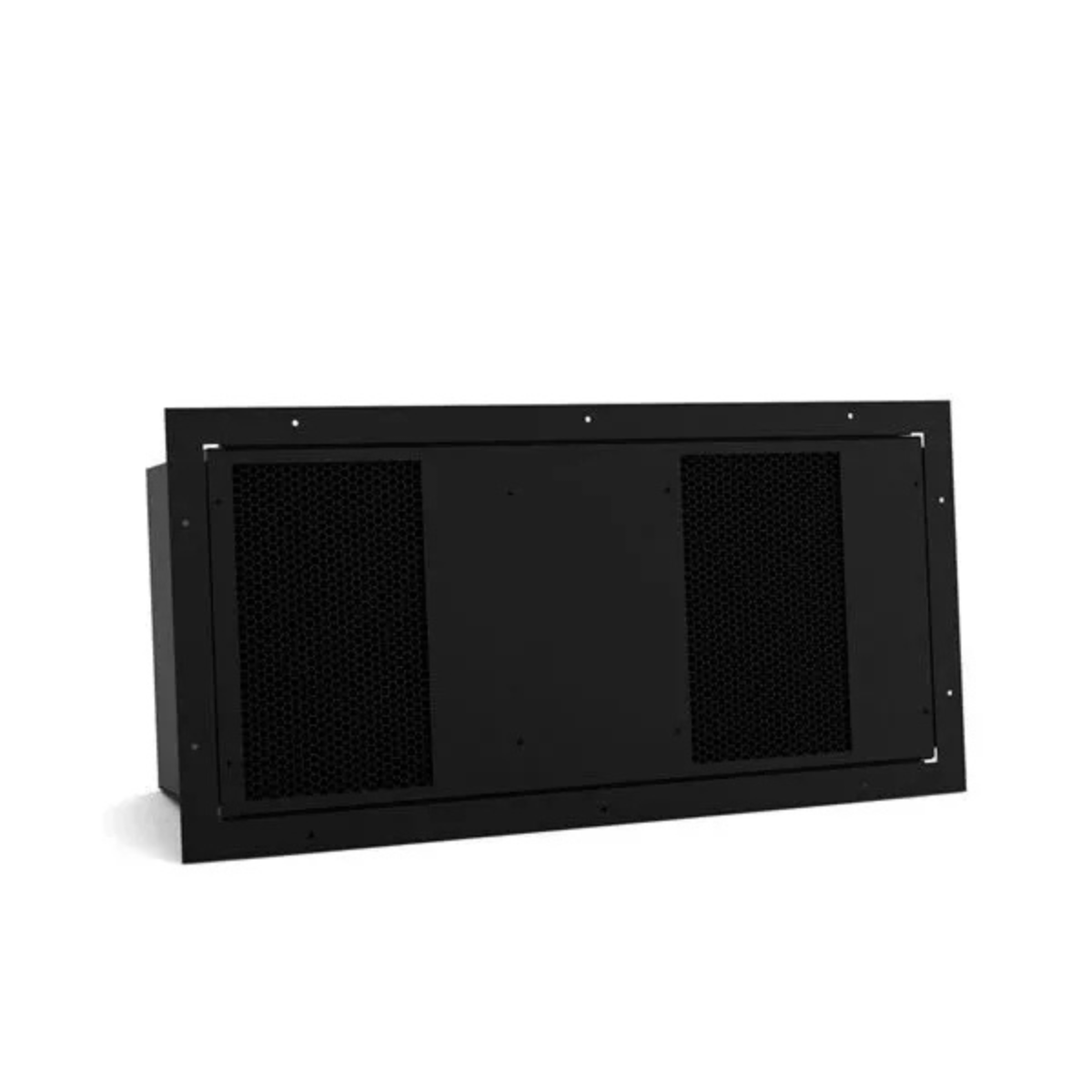

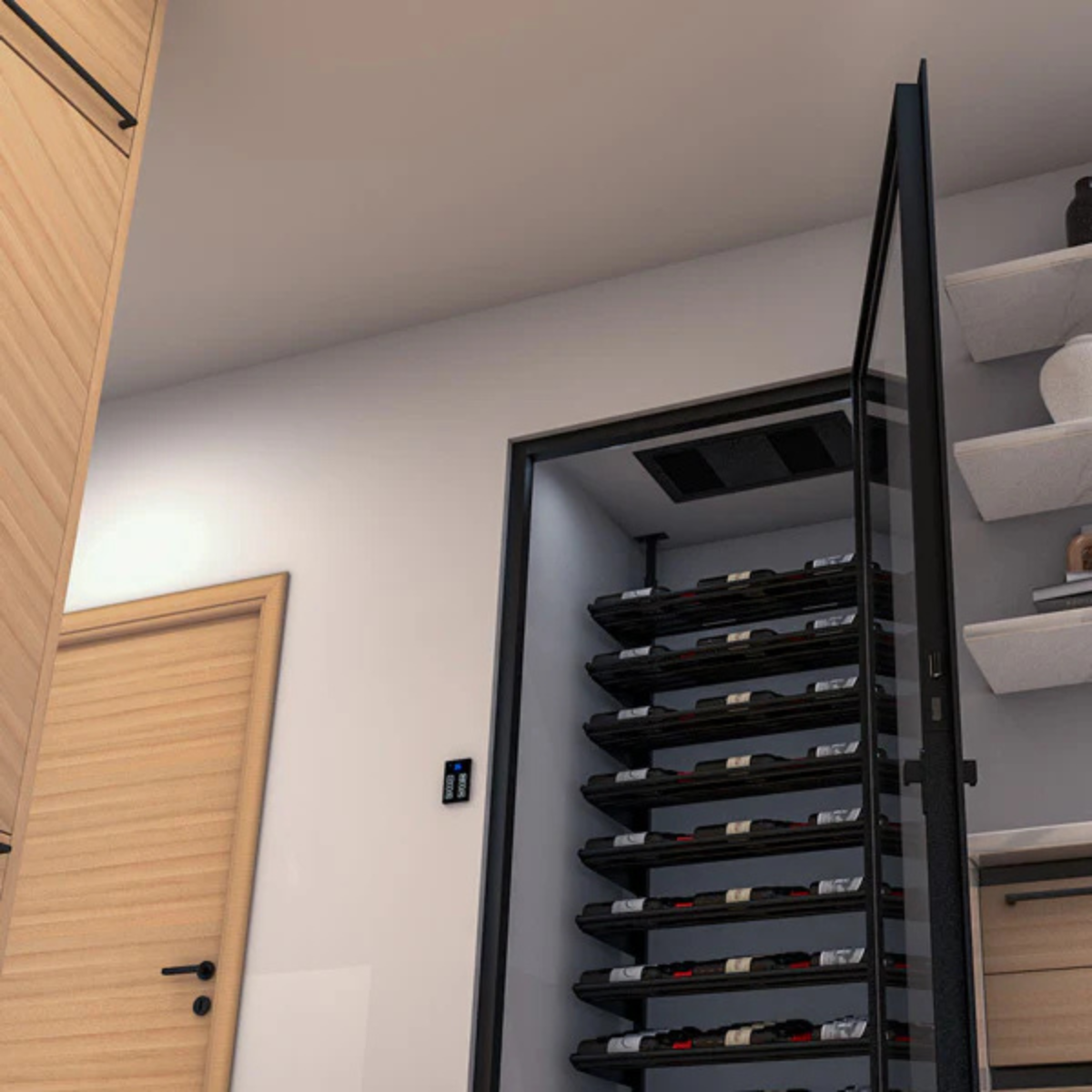

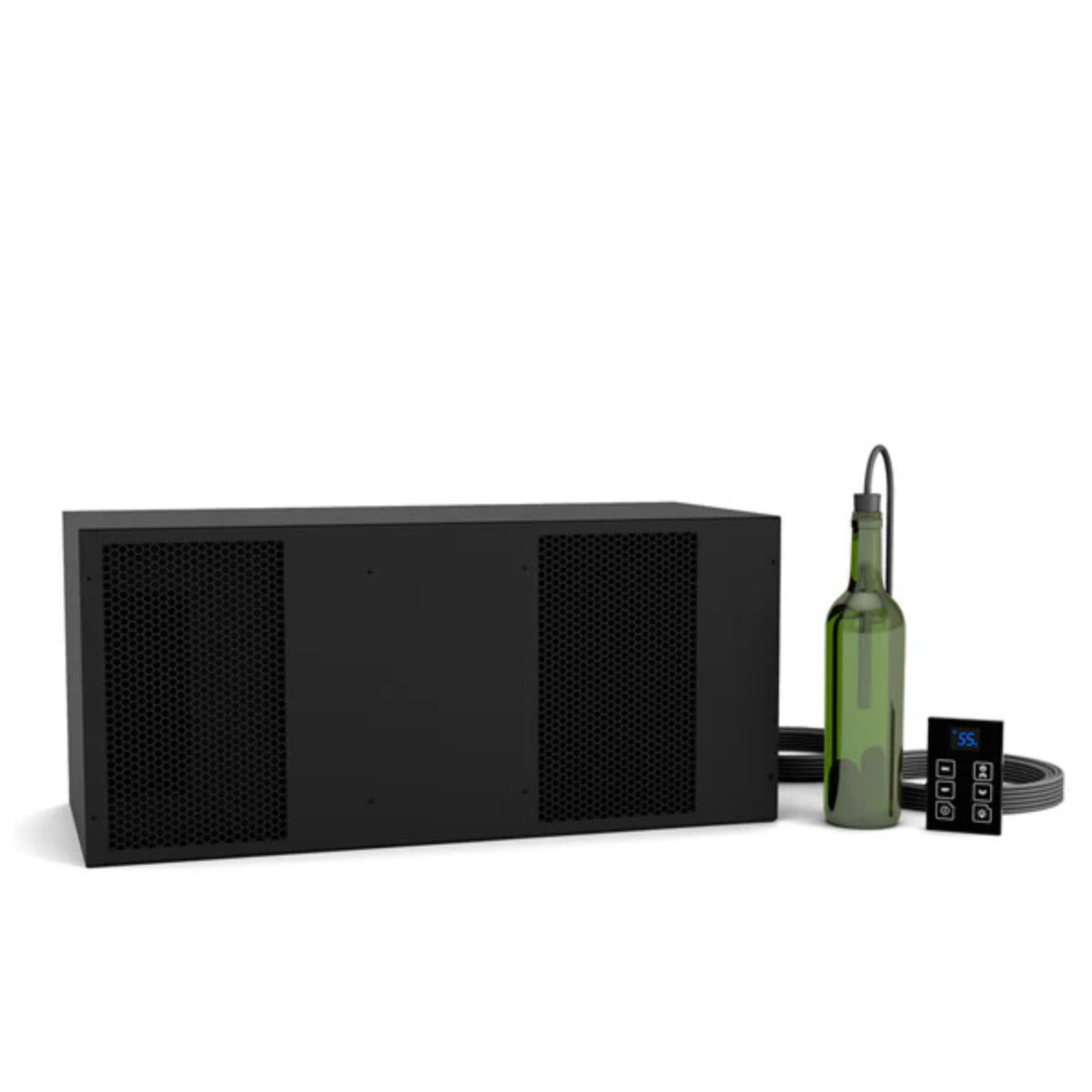

The WhisperKOOL Mini Ceiling Mount is a discreet split wine cellar cooling system designed to preserve valuable wall and racking space. Installed at ceiling level, the evaporator draws in naturally rising warm air before cooling and circulating it throughout the wine cellar. Its compact design provides consistent temperature and humidity management with minimal visual impact.

Built with professional grade components, accessible service connections, and corrosion resistant evaporator coils, the Mini Ceiling Mount provides dependable performance for residential and luxury wine cellars. Choose between the OMEGA 110 H.E. condenser and the new Advanced H.E. 220V condenser to match the electrical requirements, climate conditions, and performance needs of your installation.

A compact ceiling mounted evaporator paired with your choice of high efficiency condenser.

Specs - evaporator: 22.05 in L × 11.08 in D × 11.34 in H, condenser: 31.18 in L × 10.75 in W × 21.18 in H

Designed and assembled in California.

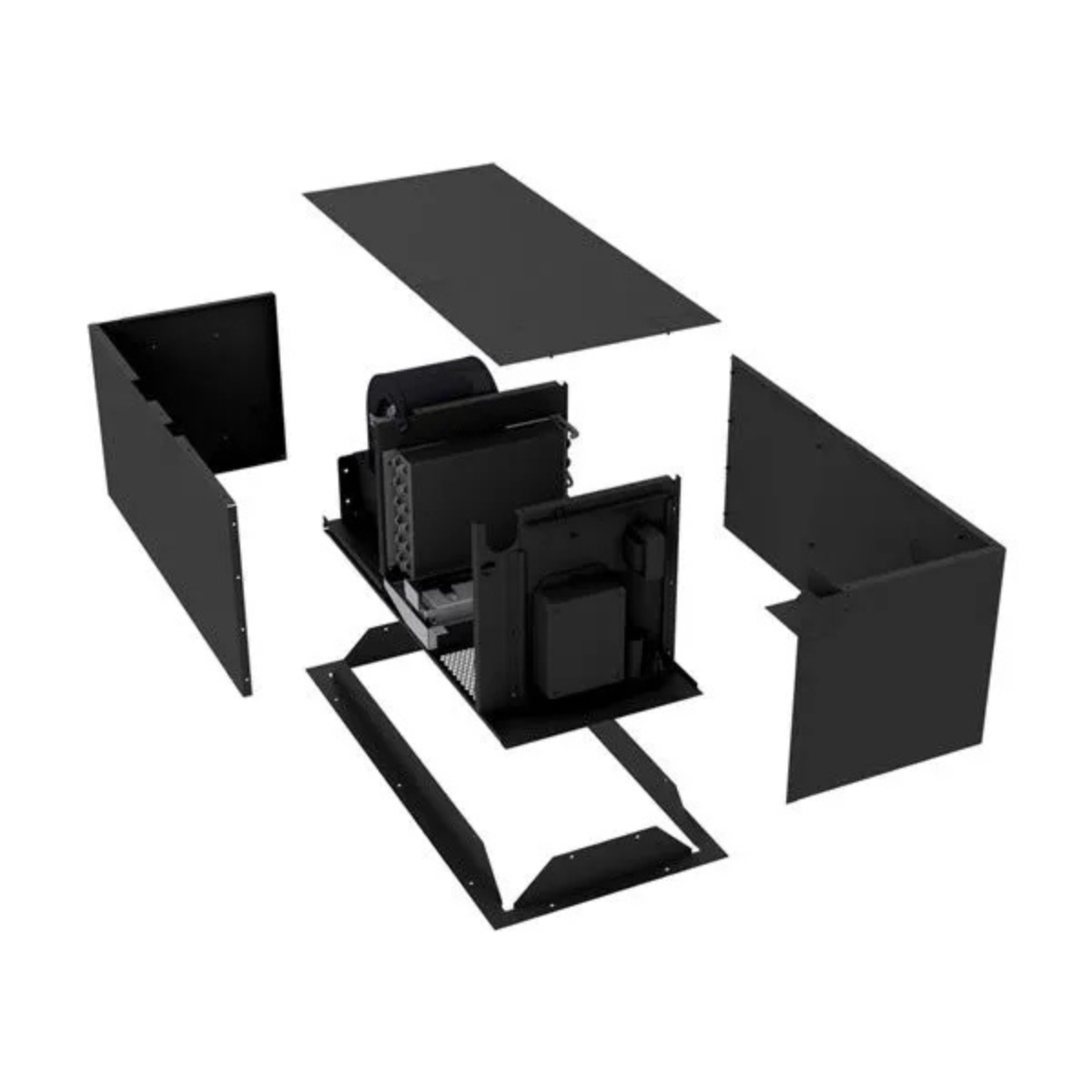

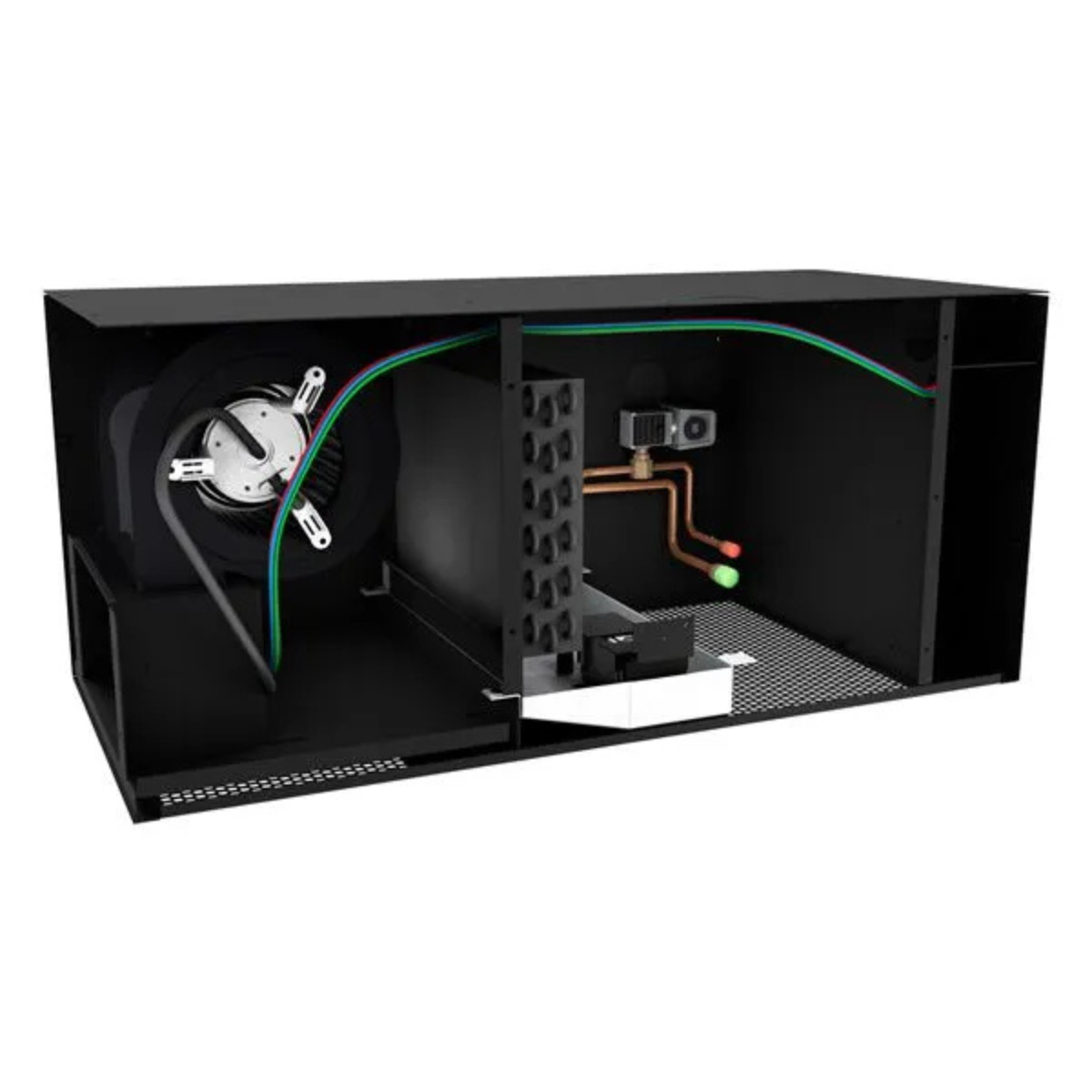

The Mini Ceiling Mount places the electrical wiring, bottle probe wiring, and refrigerant line connections along the bottom of the evaporator for easier access during installation and servicing. Flare fittings eliminate the need for field brazing at the evaporator, while the coated Duramax coil supports efficient performance and improved corrosion resistance.

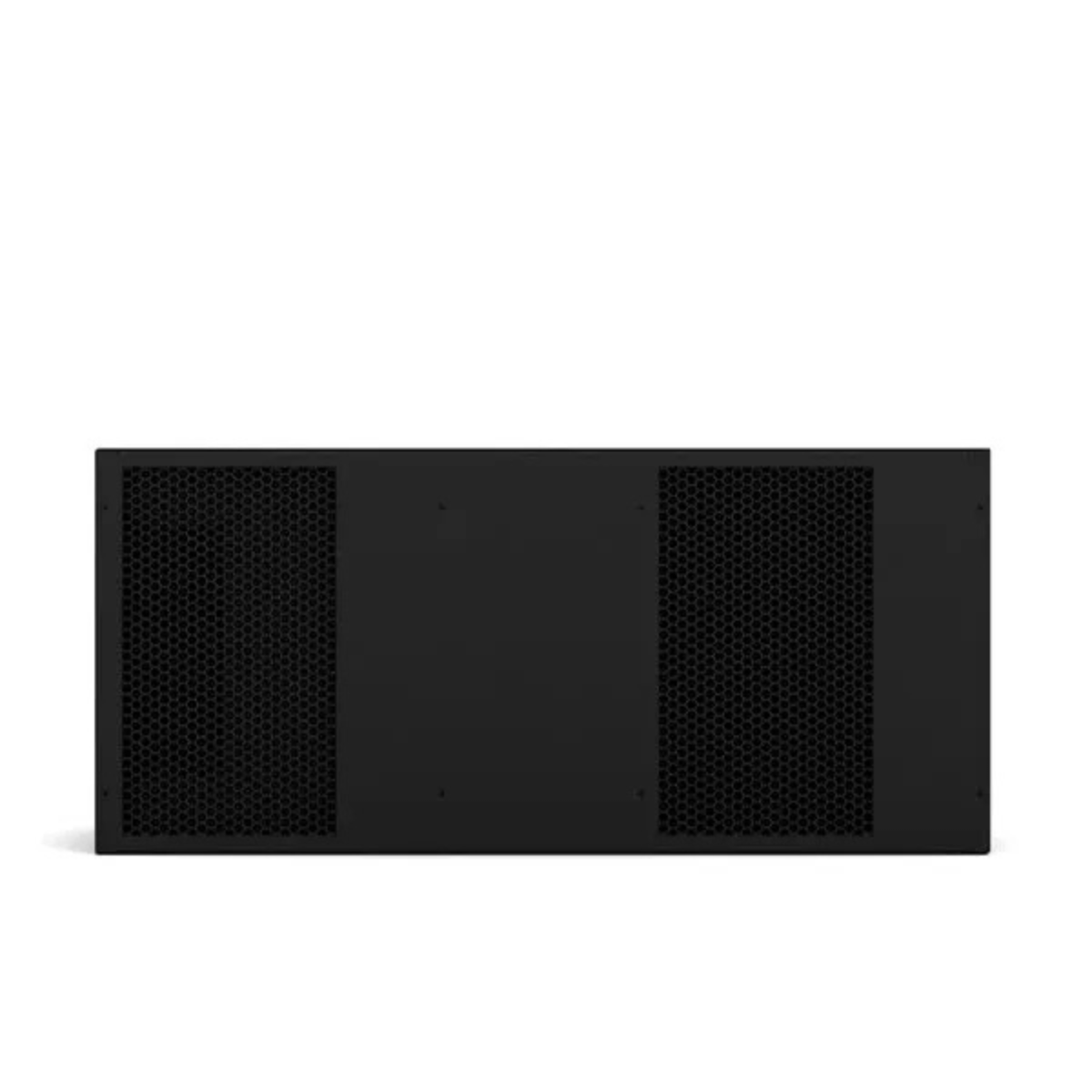

A hex mesh grille, integrated air filter, liquid bottle probe, humidity management, and system alarms help protect the equipment and maintain suitable wine storage conditions.

Condenser Options

OMEGA 110 H.E. Condenser

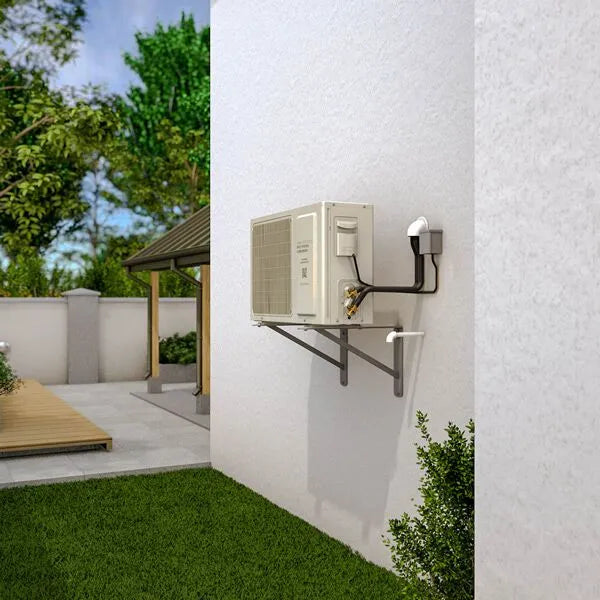

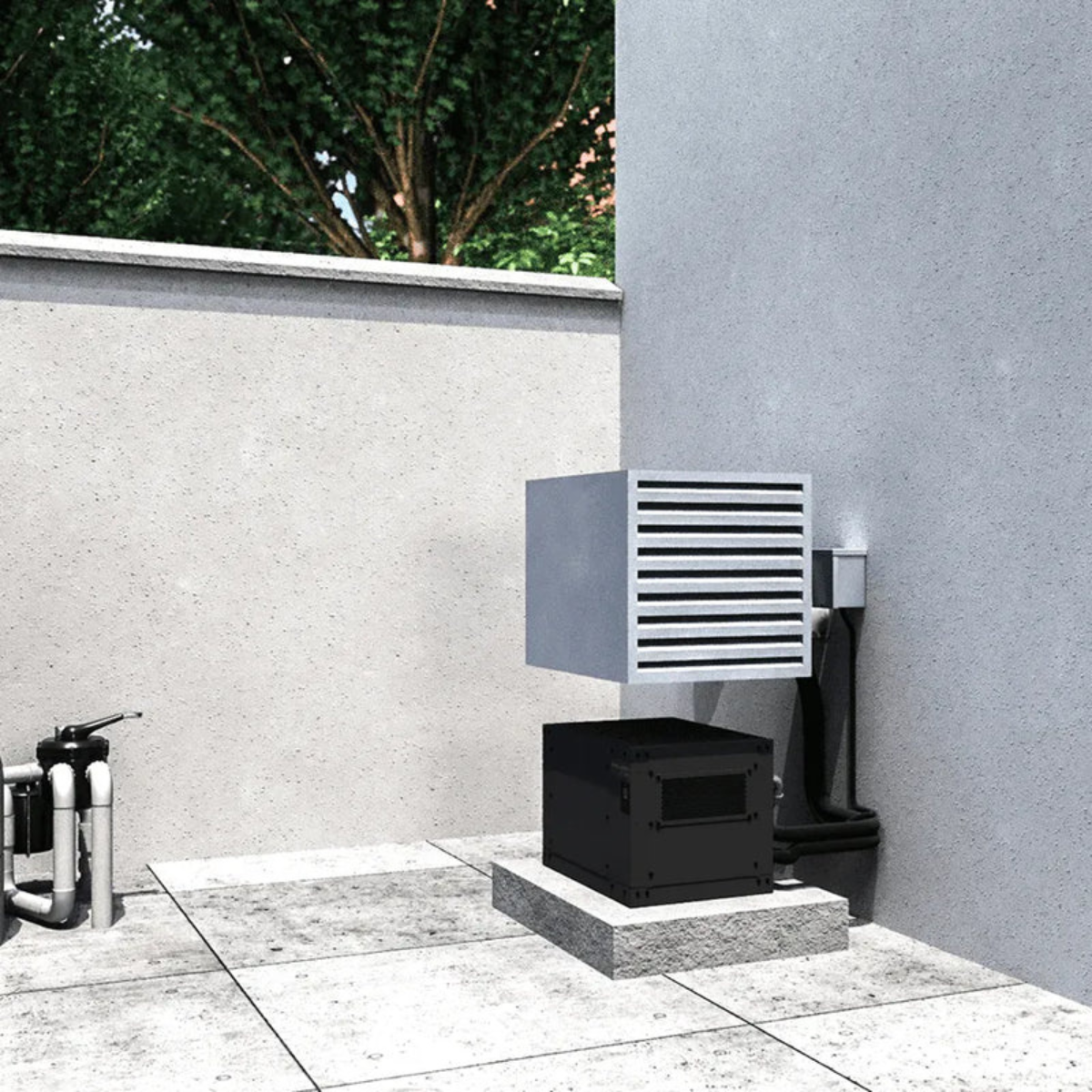

The OMEGA 110 H.E. is the standard high efficiency condenser option for installations requiring 110V power. Remote condenser placement helps keep compressor heat and operating noise outside the wine cellar while supporting dependable split system performance.

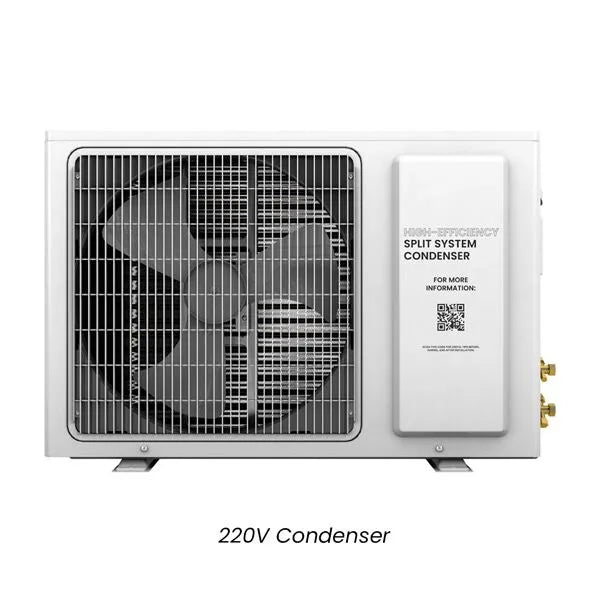

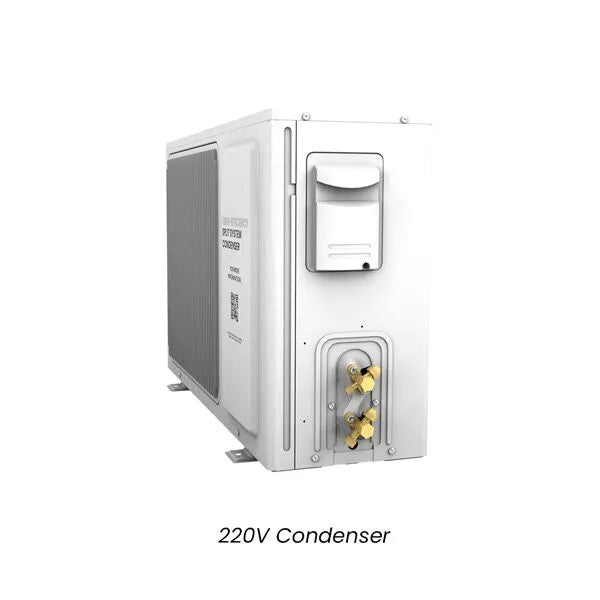

Advanced H.E. 220V Condenser

The new Advanced H.E. 220V condenser is engineered for demanding climates, greater operating efficiency, quieter performance, and easier servicing. Its wide ambient operating range supports operation in temperatures from minus 20°F to 120°F.

A high efficiency rotary compressor, liquid line injector, compressor heater strap, cycling switch, and suction line accumulator help protect the system during both extremely cold and high ambient conditions. The hydrophilic coated condenser coil provides additional corrosion resistance in humid or challenging environments.

Built in high side and low side pressure gauges include pressure to temperature conversion scales, giving technicians immediate refrigerant pressure and saturation temperature readings. Flare fittings, quick remove top access, and a dedicated electrical compartment simplify installation, charging, diagnostics, and routine servicing.

Advanced H.E. 220V Features

• High efficiency rotary compressor
• Ambient operating range from minus 20°F to 120°F
• Liquid line injector for high ambient protection
• Hydrophilic coil coating for corrosion resistance
• Automatic pressure regulation through a cycling switch
• Suction line accumulator for compressor protection
• Compressor heater strap for cold climate operation
• Compressor blanket and vibration isolation mounts
• Flare fittings for simplified installation and servicing
• Quick remove top access
• Dedicated electrical compartment
• High side and low side pressure gauges
• Integrated pressure to temperature conversion scales

Key System Features

• Ceiling mounted design preserves wall and racking space
• Virtually silent evaporator operation
• Liquid bottle probe for accurate temperature monitoring
• Humidity management
• Temperature and system alarm options
• Up to a 55°F temperature differential
• Remote condenser placement
• Optional 24V configuration for compatible thermostats and home automation systems

Evaporator Dimensions:
22.05 in L × 11.08 in D × 11.34 in H

Condenser Dimensions:
31.18 in L × 10.75 in W × 21.18 in H

Refrigerant Line Set:
Suction line: 3/8 in OD
Suction line over 50 ft: 1/2 in OD
Liquid line: 1/4 in OD

Drain Line:
1/4 in ID clear plastic tubing

Important Installation Information:
Installation must be completed by a qualified HVAC R technician. Installation by an unqualified person may void the manufacturer’s warranty.

Wine cellar capacity ratings are estimates. Glass exposure, insulation, cellar location, ambient temperatures, and other thermal load conditions may require a larger cooling system. Please contact a Rosehill Wine Cellars representative for assistance selecting the correct system and condenser configuration.
