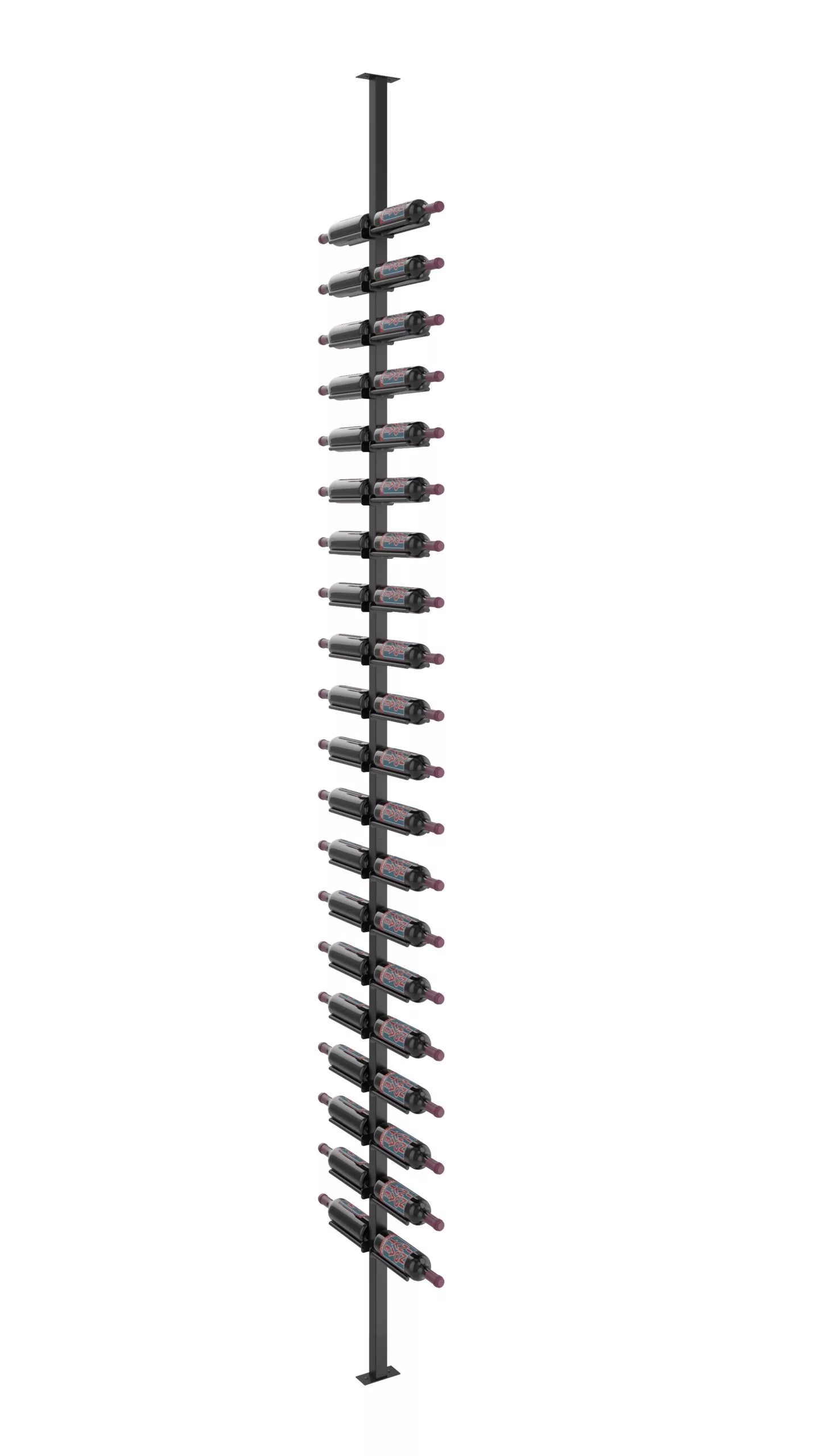

Vino Rails Double Sided Post Kit 10 (floor-to-ceiling wine rack system)
Description
Vino Rails Double-Sided Post Kit 10 makes it effortless to build a dramatic, 360-degree wine column that appears to float between floor and ceiling. By marrying VintageView’s minimalist Vino Rails pegs with a 10-foot Vino Series Post, this two-sided kit stores bottles on both faces of a slim, 28-inch-deep frame—an ideal centerpiece for rooms with glass walls, stone accents, or open floor plans where wall mounting is not an option.
Each kit arrives ready to trim on-site to exact ceiling height (up to 122 in / 310 cm) and includes all plates, rails, and fasteners needed to showcase from 40 to 120 bottles in clean, label-forward style. Finished in coordinating Gunmetal (with four other finish options available), the steel-and-aluminum column carries VintageView’s lifetime structural warranty for residential and commercial projects alike.
Additional Information
The Vino Rails plates attach to the post at any 5-inch (13 cm) vertical interval and on up to four sides, giving designers complete freedom over bottle spacing and orientation. While this kit is configured as a dual-face display, installers can easily expand capacity by adding more rails or plates in the future. Floor- and ceiling-specific anchors vary by surface and are supplied by the installer; interactive BILT 3-D instructions guide the process from cutting the post to final tightening of the last peg.
Key Features
- Two-sided, floor-to-ceiling column shows bottles front and back
- Three width options hold 40, 80, or 120 bottles without widening the frame
- Plates mount every 5 in / 13 cm for custom vertical spacing
- Post trims on-site to fit ceilings up to 122 in / 310 cm
- Commercial-grade steel & aluminum with five designer finishes and lifetime warranty
Specifications
- Frame Height (max): 122 in / 310 cm (field-cut to fit)
-
Widths / Capacities:
• 4½ in (12 cm) W — 40 bottles (single-wide)
• 8 in (20 cm) W — 80 bottles (double-wide)
• 13 in (33 cm) W — 120 bottles (triple-wide) - Depth: 28 in / 72 cm
- Vertical Adjustment: Plate positions every 5 in / 13 cm, up to four sides
- Materials: Powder-coated or plated steel & aluminum
- Finish Options: Matte Black, Gloss Black, Milled Aluminum, Golden Bronze, Gunmetal (shown)
- Kit Contents: 1 Post 10 (cut-to-fit), 40 plates, 40/80/120 Vino Rails, assembly hardware, BILT 3-D guide
- Warranty: Lifetime residential & commercial coverage
Shipping Information
Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to cancel your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further.
Get in touch with our design specialists to start building your custom wine cellar today.
