W Series Wine Rack Frame Elbow Standoff Bracket Kit (floor-to-ceiling wine rack component)
Description
W Series Wine Rack Frame Elbow Standoff Bracket Kit unlocks even more creativity with VintageView’s floating-frame system by letting you anchor a full-height 10 ft or 12 ft W Series Frame to the floor and a nearby wall (or ceiling) when direct top-or-bottom wall connections aren’t an option. The engineered “elbow” design bridges up to 12 in (30 cm) off the wall, preserving the dramatic, freestanding look while providing rock-solid stability for your label-forward wine display.
Compatible with any single- or double-sided Frame installation, the kit arrives in matching steel finishes—Matte Black, Brushed Nickel, Chrome Luxe, Golden Bronze Luxe, or Gunmetal Luxe—so the structural pieces virtually disappear into the architecture. Heavy-duty hidden plates and a pair of 12-inch bridge tubes blend seamlessly with the frame, and interactive BILT 3D instructions make the upgrade quick for contractors and DIYers alike.
Additional Information
This extension kit is ideal when you’re using the full vertical length of a 10- or 12-foot W Series Frame, leaving no extra frame segment (“drop”) to connect back to the wall. Each elbow bends the frame 90 degrees, then the included bridge tube attaches to a hidden mounting plate on the wall, maintaining a clean, floating aesthetic with up to a foot of clearance. Installations must tie into one solid wall and either the floor or ceiling. All components are fabricated from architectural-grade steel, share the same lifetime warranty as the core W Series collection, and arrive with every fastener required for wood-backed or drywall substrates.
Key Features
- Converts full-height 10 ft or 12 ft W Series Frames to floor-to-wall or ceiling-to
- Provides up to 12" (30 cm) standoff for optimum clearance over tile, glass
- Includes matching elbow brackets, bridge tubes, and hidden wall plates for a
- Works with single- or double-sided W Series Frames in residential or commercial
- Supplied with BILT 3D interactive instructions and all installation hardware
Specifications
- Bracket Dimensions: 2" W × 2 ½" H × 13" D (5 cm × 6 cm × 34 cm)
- Maximum Wall Offset: 12" (30 cm) using 1" × 1" bridge tube
- Materials & Finishes: Powder-coated or plated steel; Matte Black, Brushed Nickel
- Kit Contents: 2 Elbow brackets, 2 × 12" bridge tubes, 2 hidden wall plates,
- Compatibility: W Series Frame 10 and Frame 12 (single- or double-sided)
- Warranty: Lifetime residential and commercial coverage
In the box
Comes with two (2) Elbows, two (2) 12" Bridge Frames (1x1 Tube Steel that matches W Series Frame), two (2) Hidden Mounting Plates, BILT 3D installation instructions, and all hardware needed to assemble to Frame.
Floor to...
The innovative accessory opens up the possibilities for floor-to-wall, ceiling, and even wall-to-wall installations.

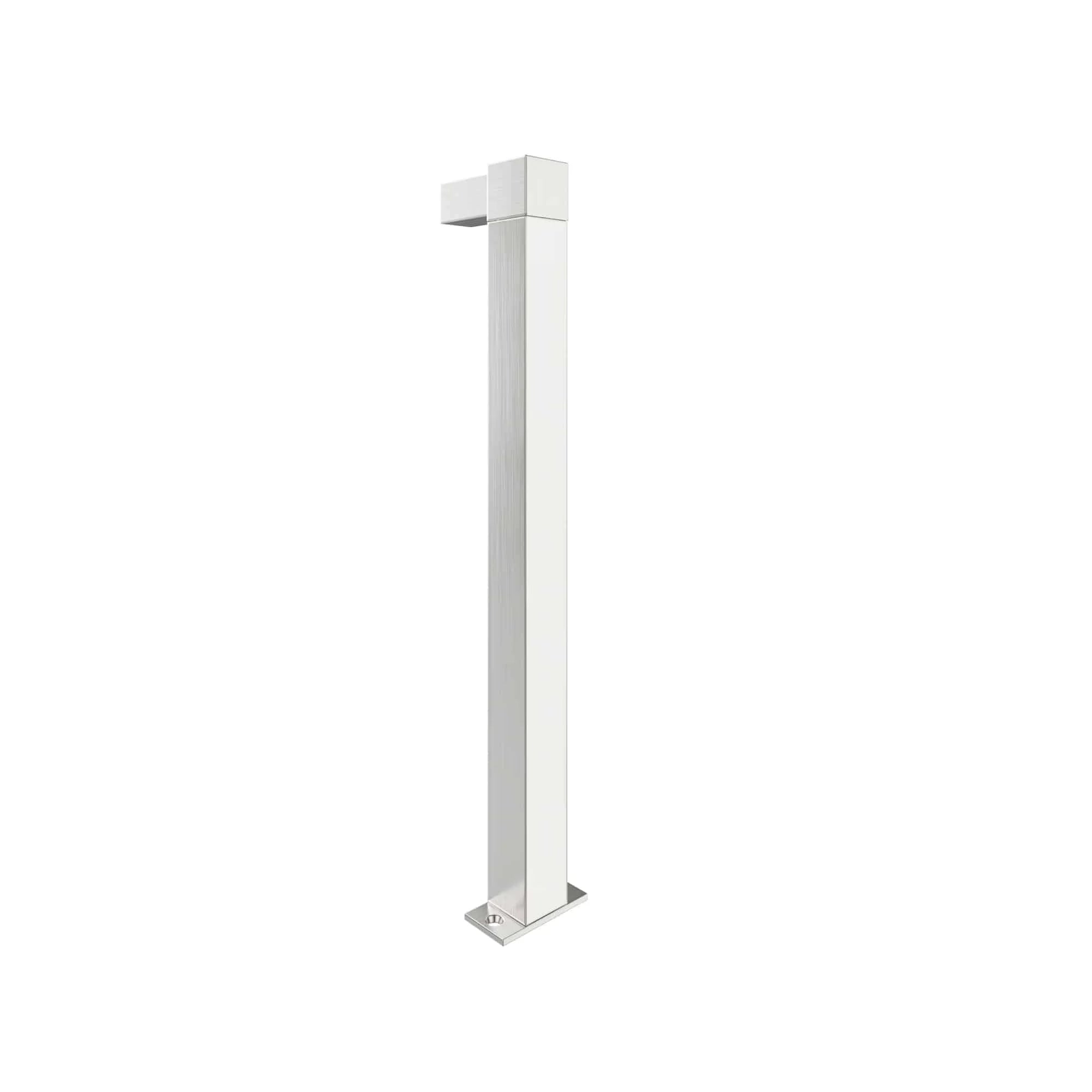

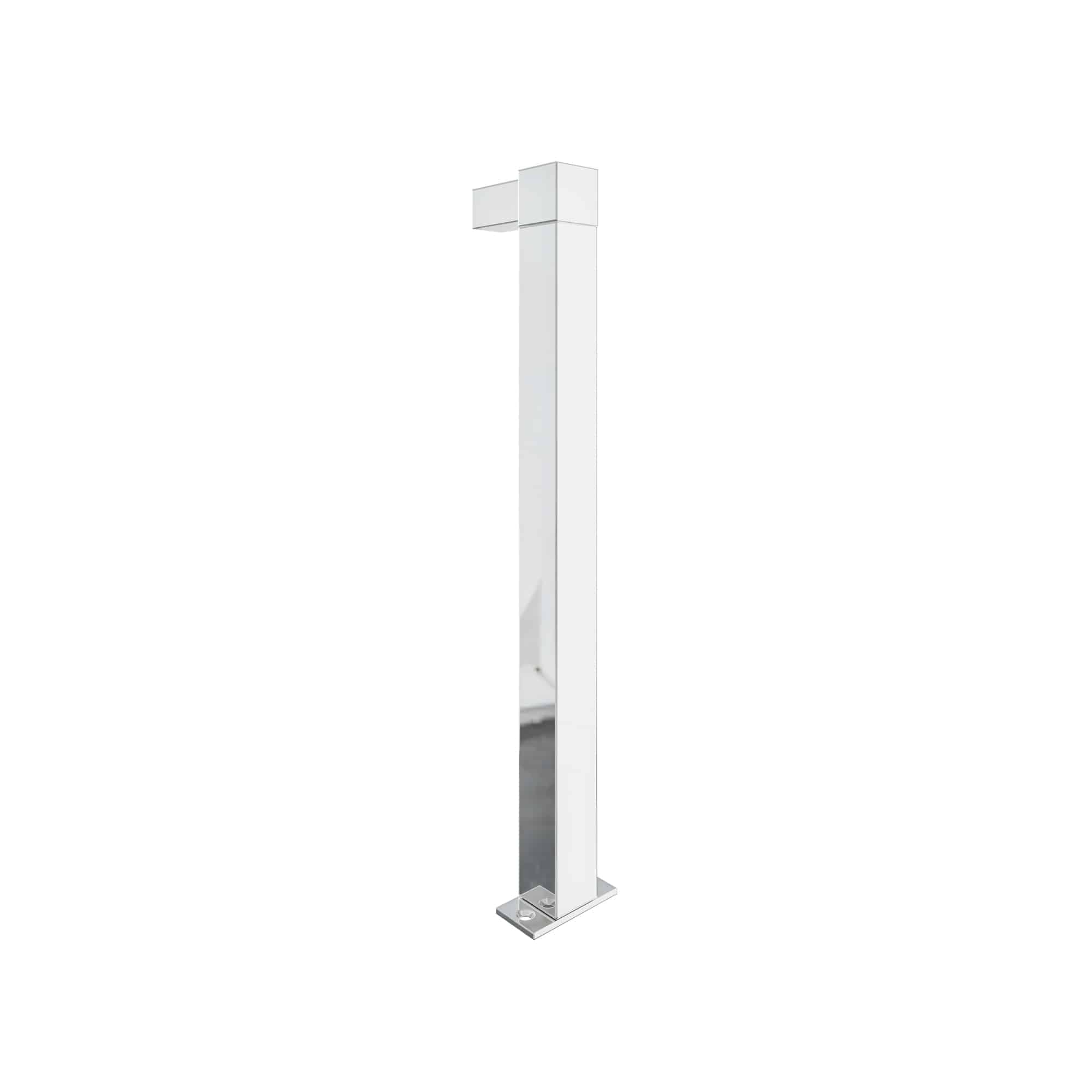

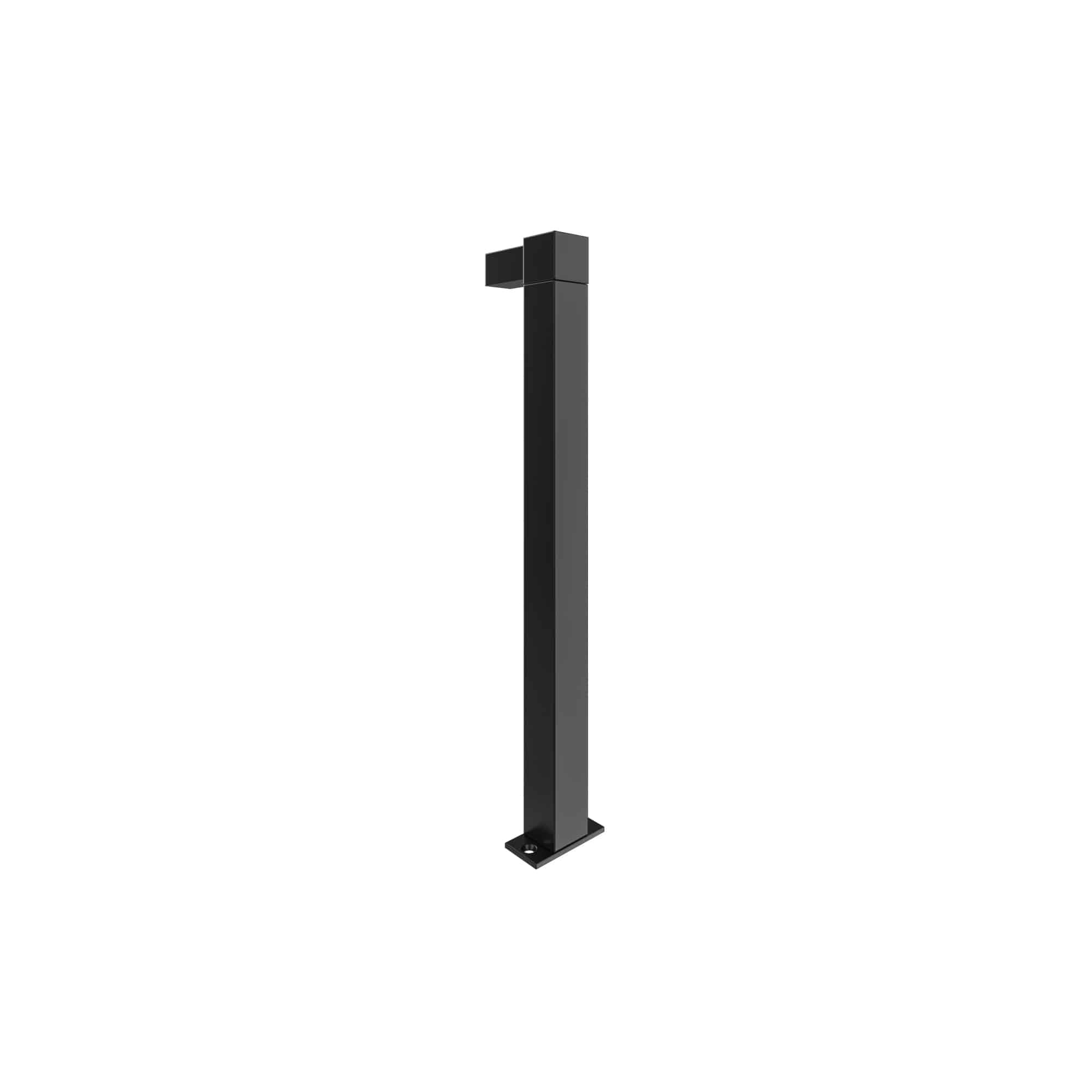

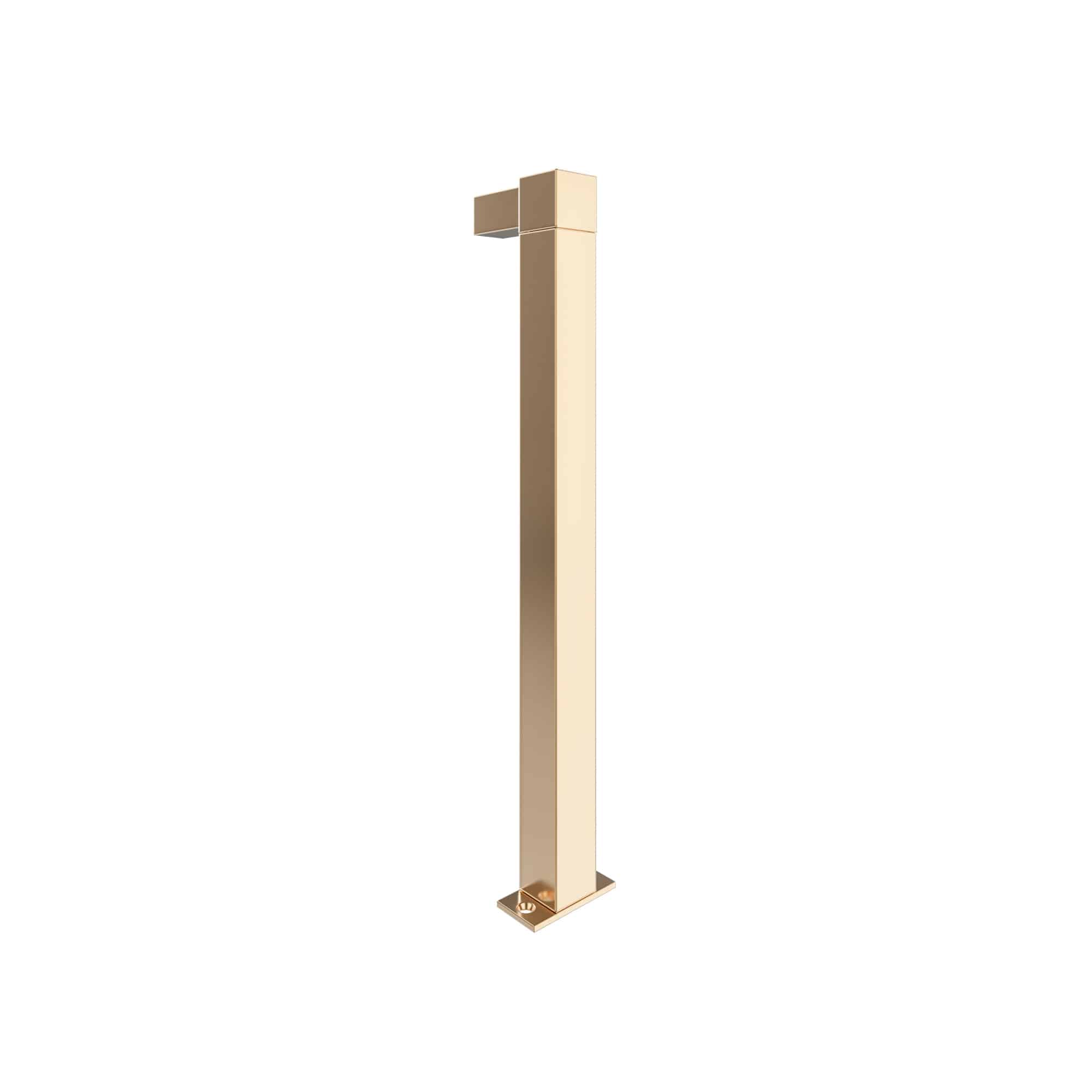

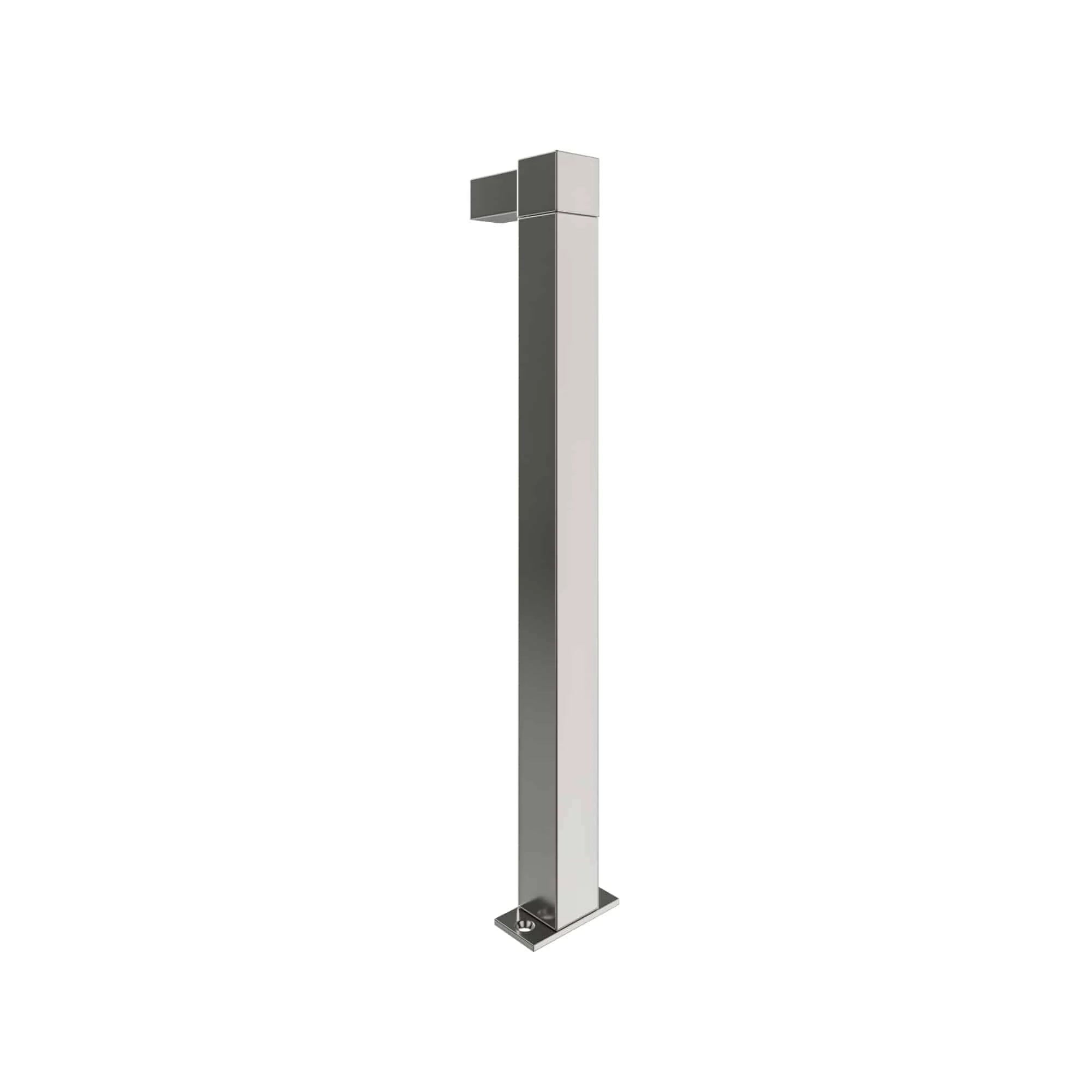

Sleek finish
Built with high-quality steel, backed by a lifetime warranty, and offered with choice of matte black, brushed nickel, chrome luxe, golden bronze luxe, or gunmetal luxe finishes.
