Wine Guardian WG SS018 Cooling System
Description
The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting in small cellars which have no room for mechanical equipment or are unable to accommodate ductwork.
Appropriate for cellars up to 1200 cubic Feet
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Additional Information
Evaporator: 25 lbs. 13 1/4" l x 14 1/4" w x 15 7/8"h - 115v / 1ph / 60Hz
Condensing Unit: 57 lbs. 34"l x 12" W x 26" H - 208 – 230V / 1ph / 60Hz
- Constructed for long-term durability with adjustable louvers
- Commercial-grade with efficient and quiet operation
- Fan-coil can be surface mounted or mounted through-the-wall - this is exclusive to this unit
- Fan-coil also fits well above a doorway or within wine racking - making this unit very compact
- Condensing unit operating capacities from 40°F/4°C to 115°F/46°C
- Condensing unit standard with outdoor enclosure

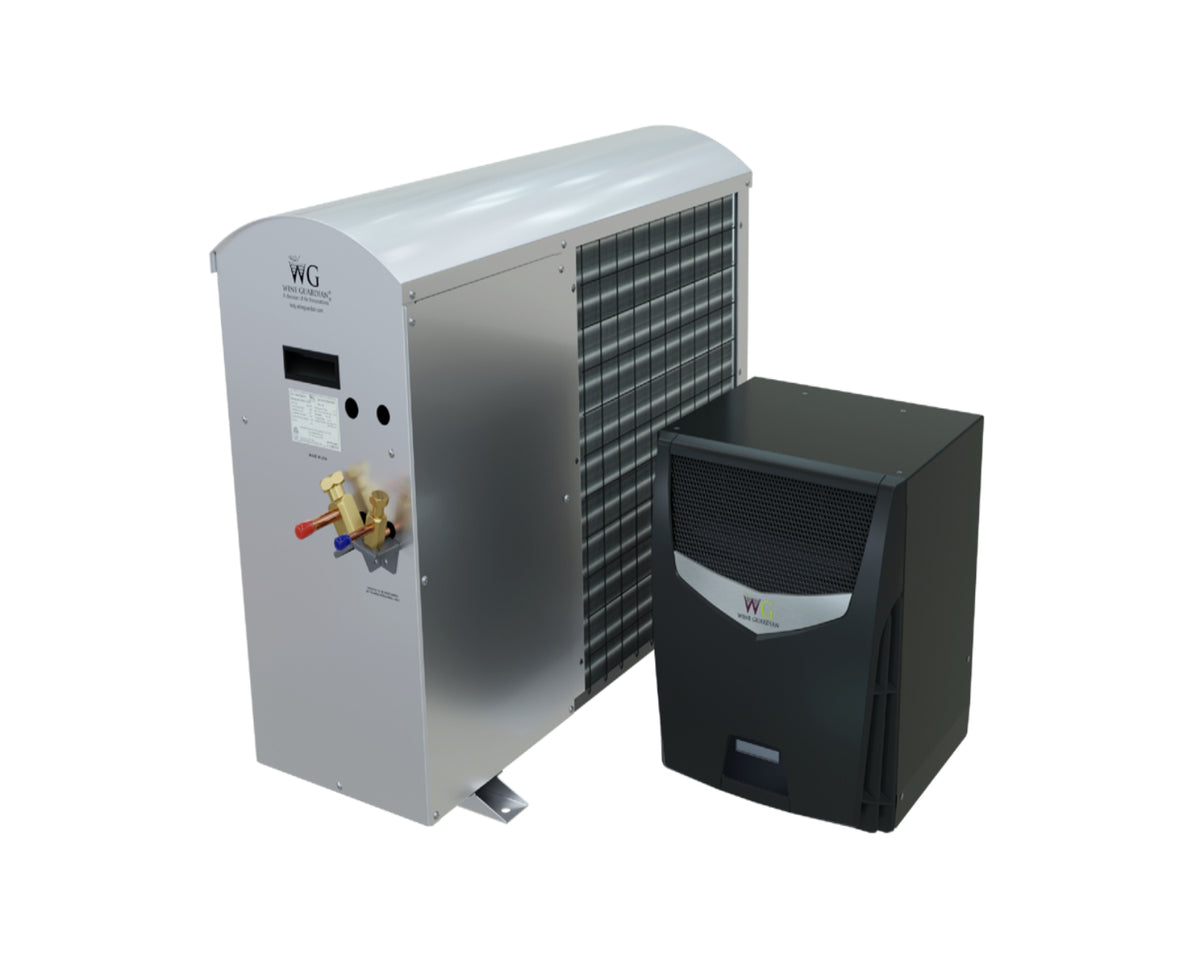

Wine Guardian Ductless Split system for wine cellars allows you to surface mount or position as a “through the wall” system within the wine cellar.
The separate evaporator and condensing system for the Wine Guardian Split system cellar cooler allows for very quiet operation and a wine cellar climatized environment that is virtually vibration free. Wine Guardian offers superior air distribution and climate control. Like all Wine Guardian systems, the Split is designed with easy access to all components for any servicing needs.
Operates in ambient environment of 0° to 122° F (-18°C to 50°C) (see Xtreme Low Ambient option to enhance performance to go down to extreme of -20°F (-29°C) )
TECHNICAL SPECS
|
Model |
SS018 (TTW) |
|
Line Frequency |
60 Hz |
|
Capacity |
400 – 2800 BTU |
|
Volume |
100 – 1200 ft³ |
|
Length |
13.31" |
|
Width |
14.25" |
|
Height |
15.87" |
|
Weight |
25 lbs |
|
Electrical |
115/1/60 |
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of original invoicing assuming NORMAL USE AND SERVICE.
