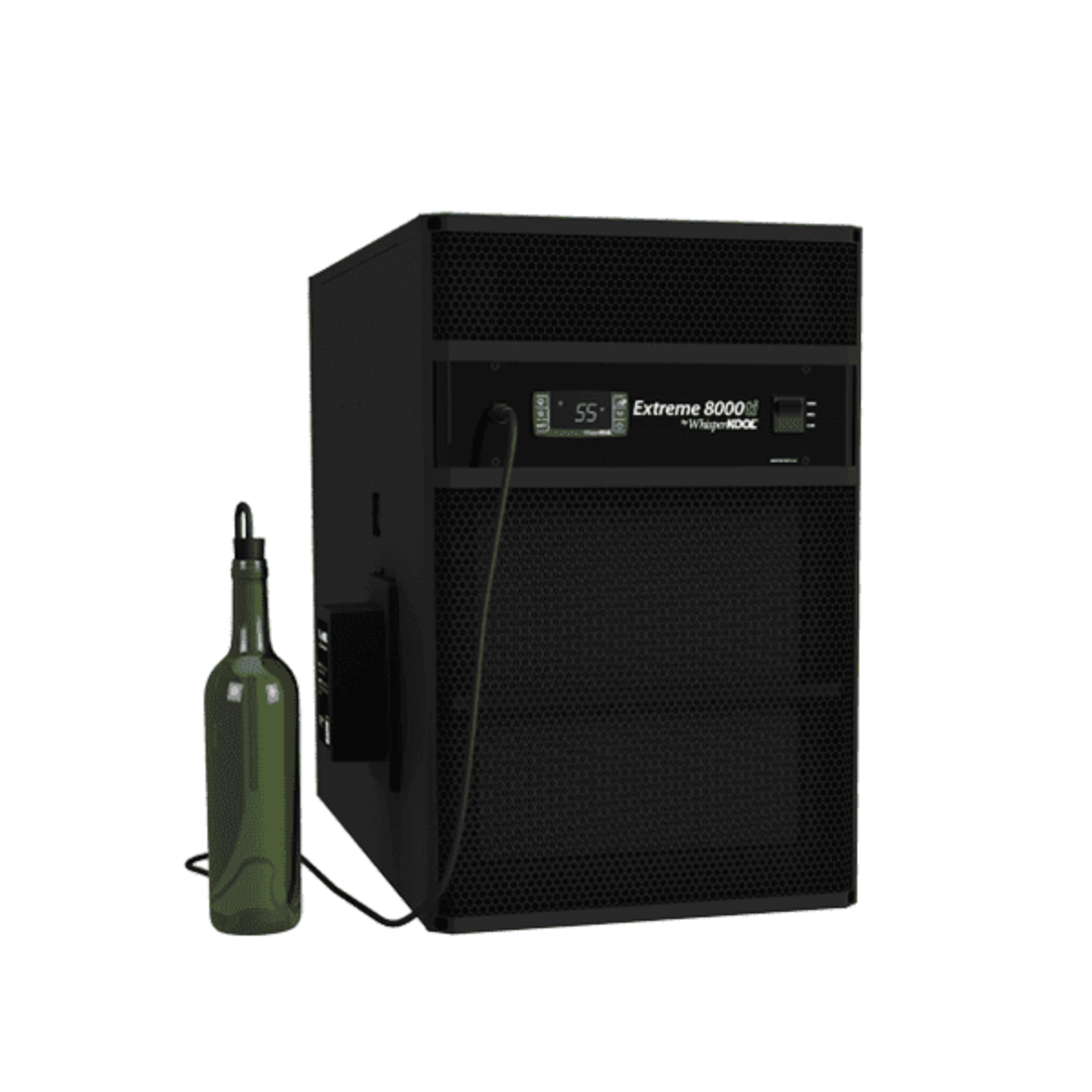

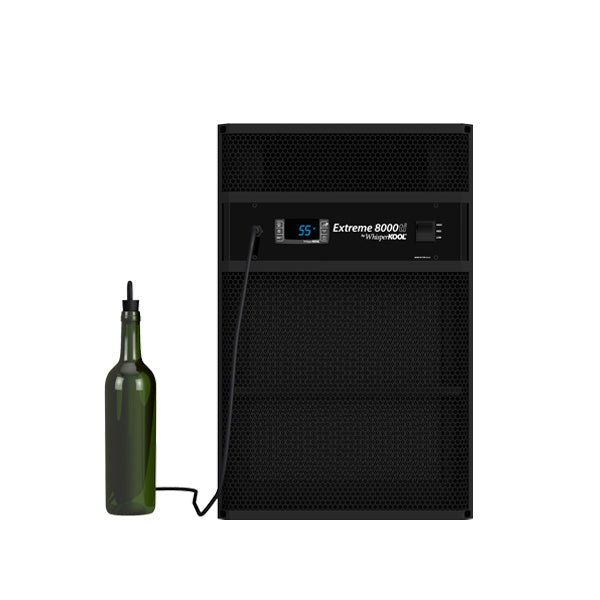

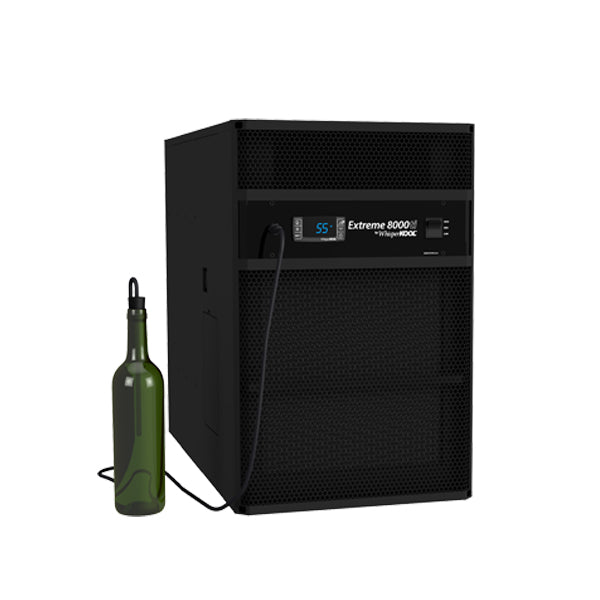

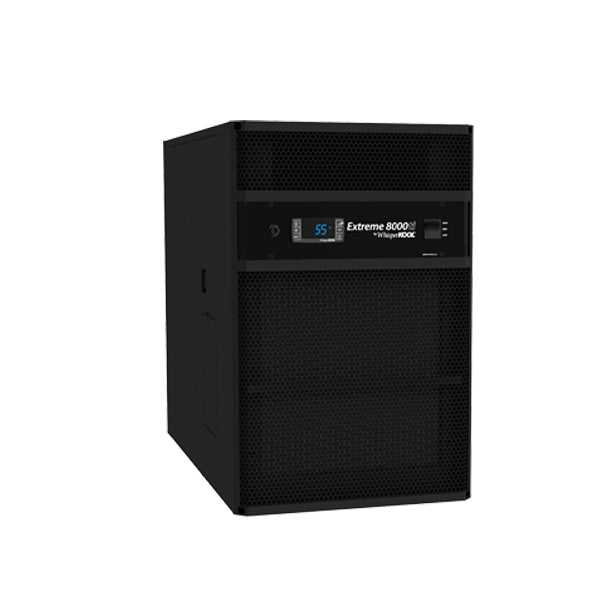

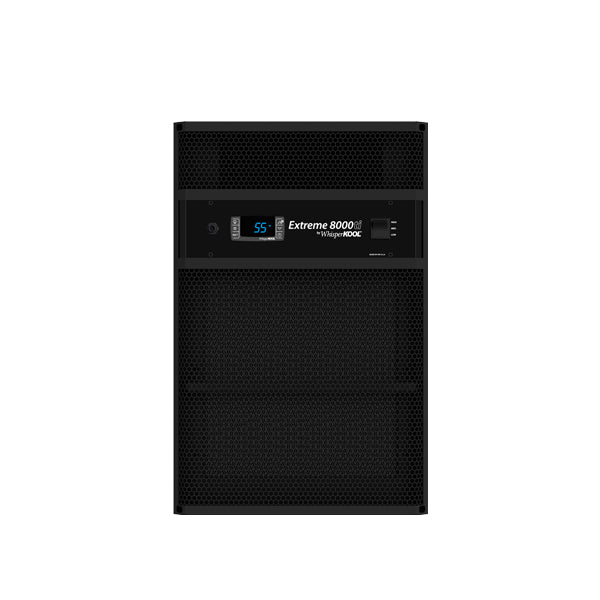

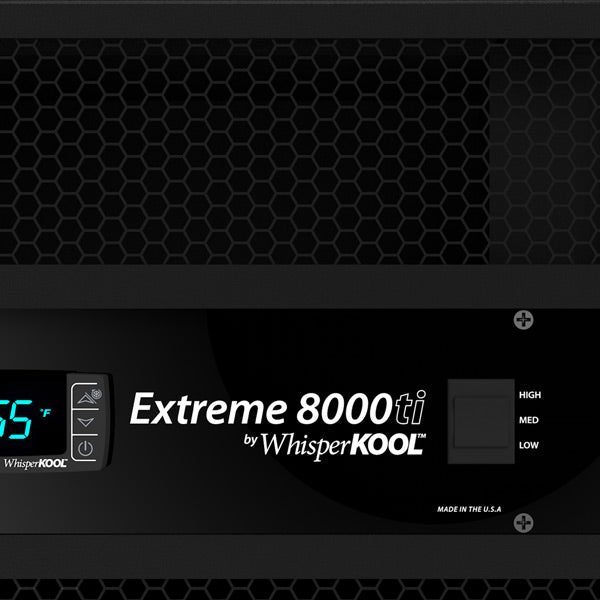

WhisperKOOL 8000ti Extreme Cooling System
Description
Whisperkool 8000ti Extreme cooling unit series is designed for wine cellar cooling of up to 2000 cubic feet. Through the wall cooling system.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Designed & Assembled in California
Additional Information
Dimensions: 14.25"W x 22"H x 27.5"D
Duct Size: 8" Supply, 10" Return
Extreme Series wine cellar cooling units from WhisperKOOL ™ are able to withstand temperatures from 32°F to 100°F.

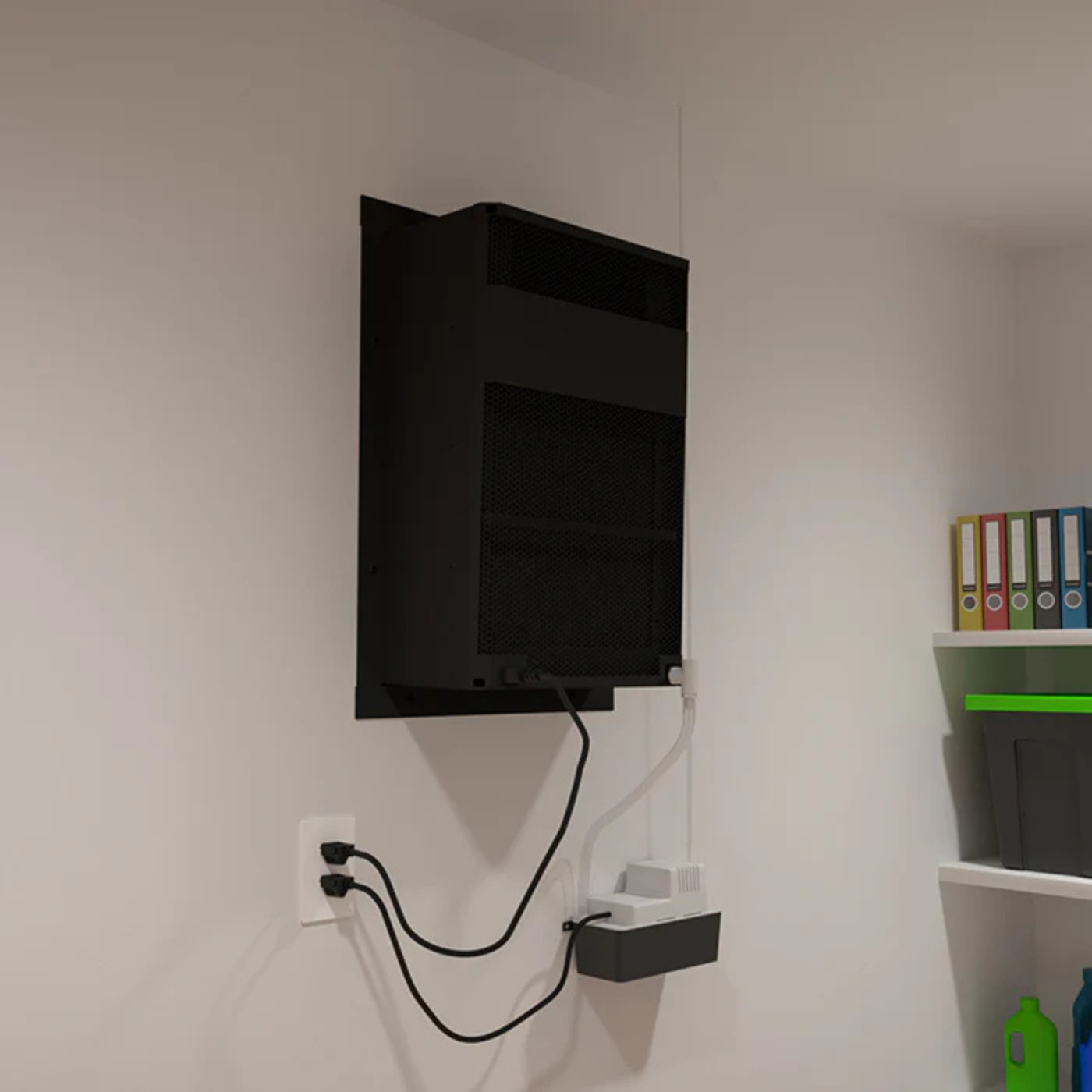

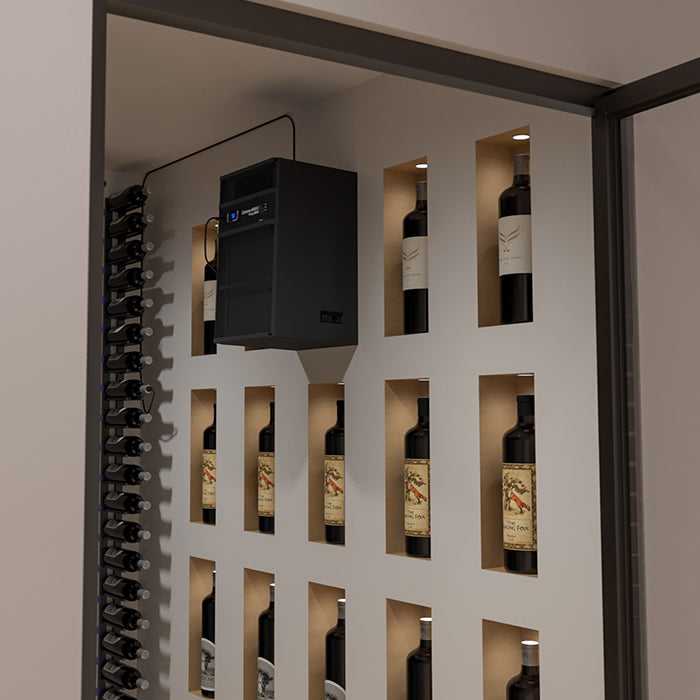

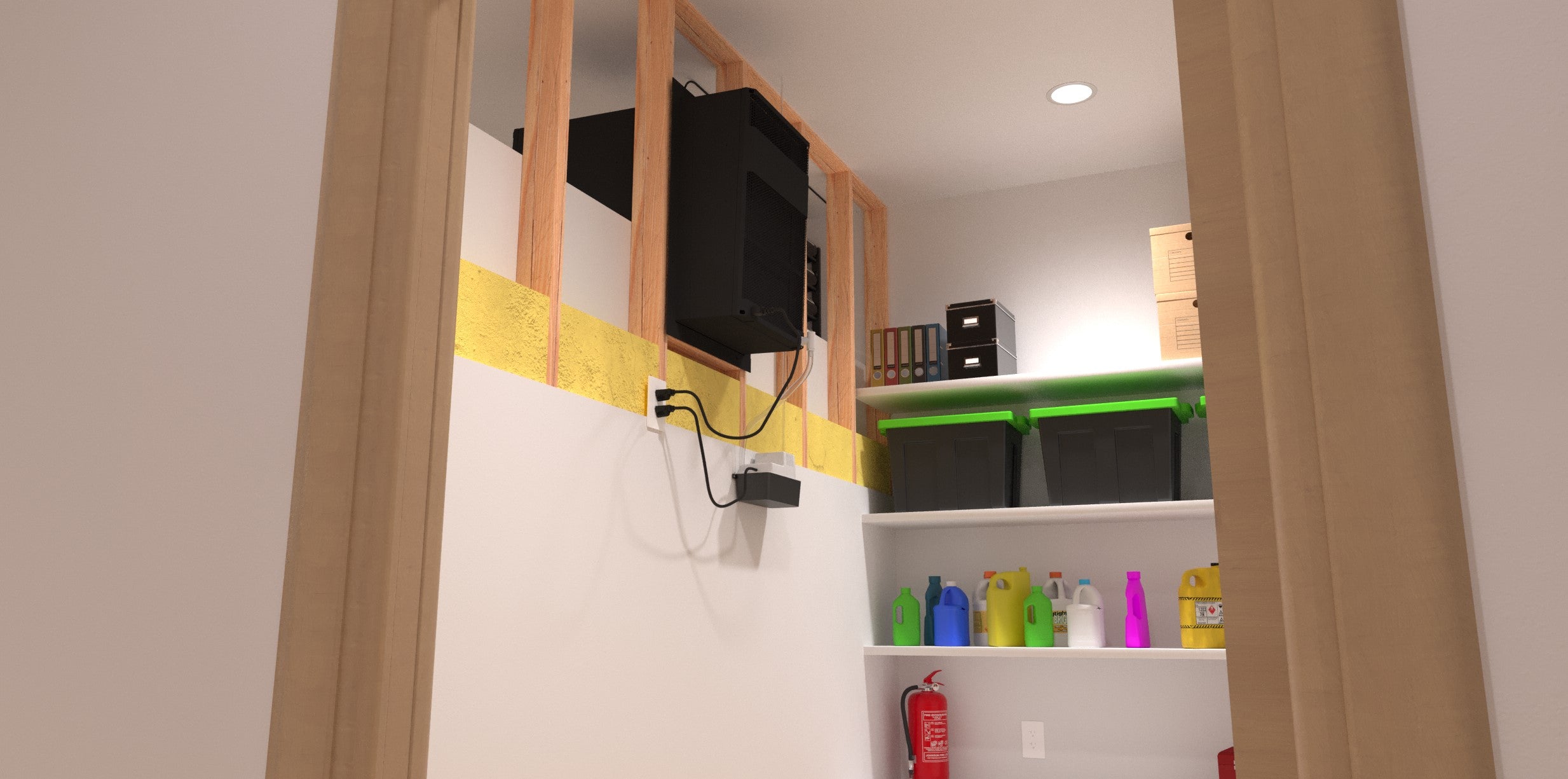

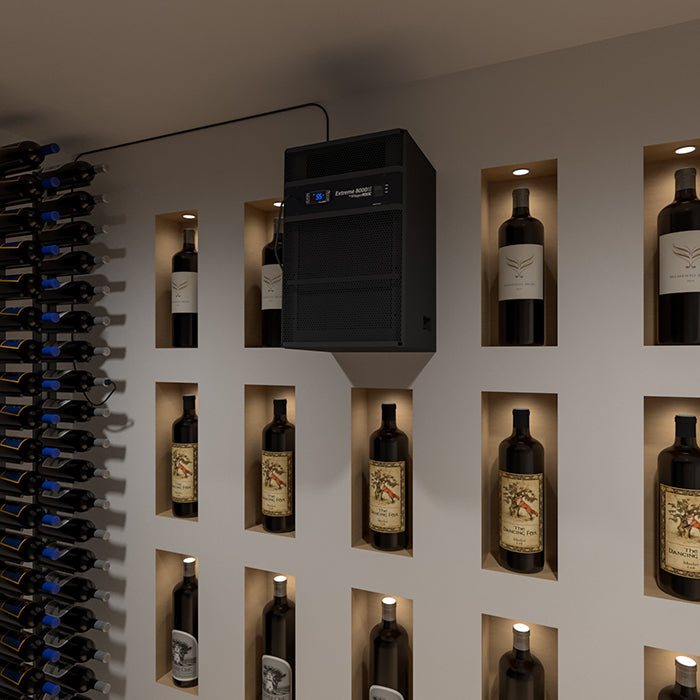

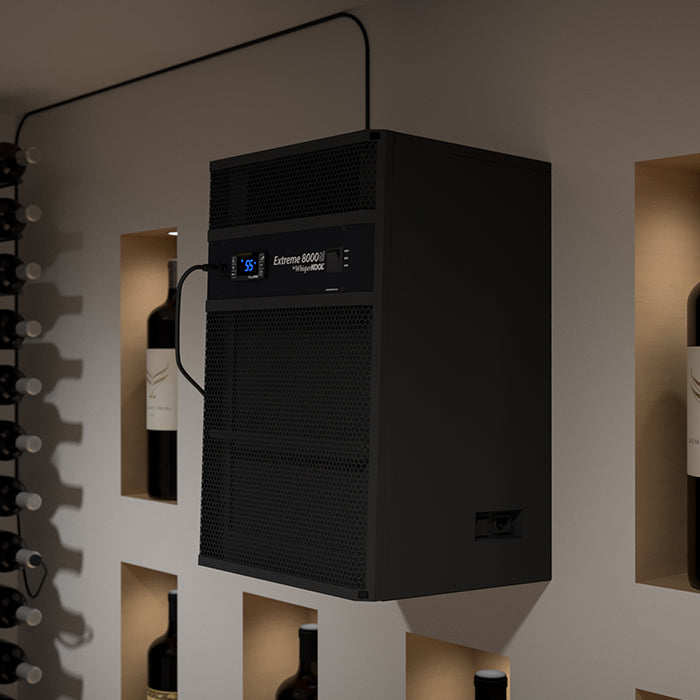

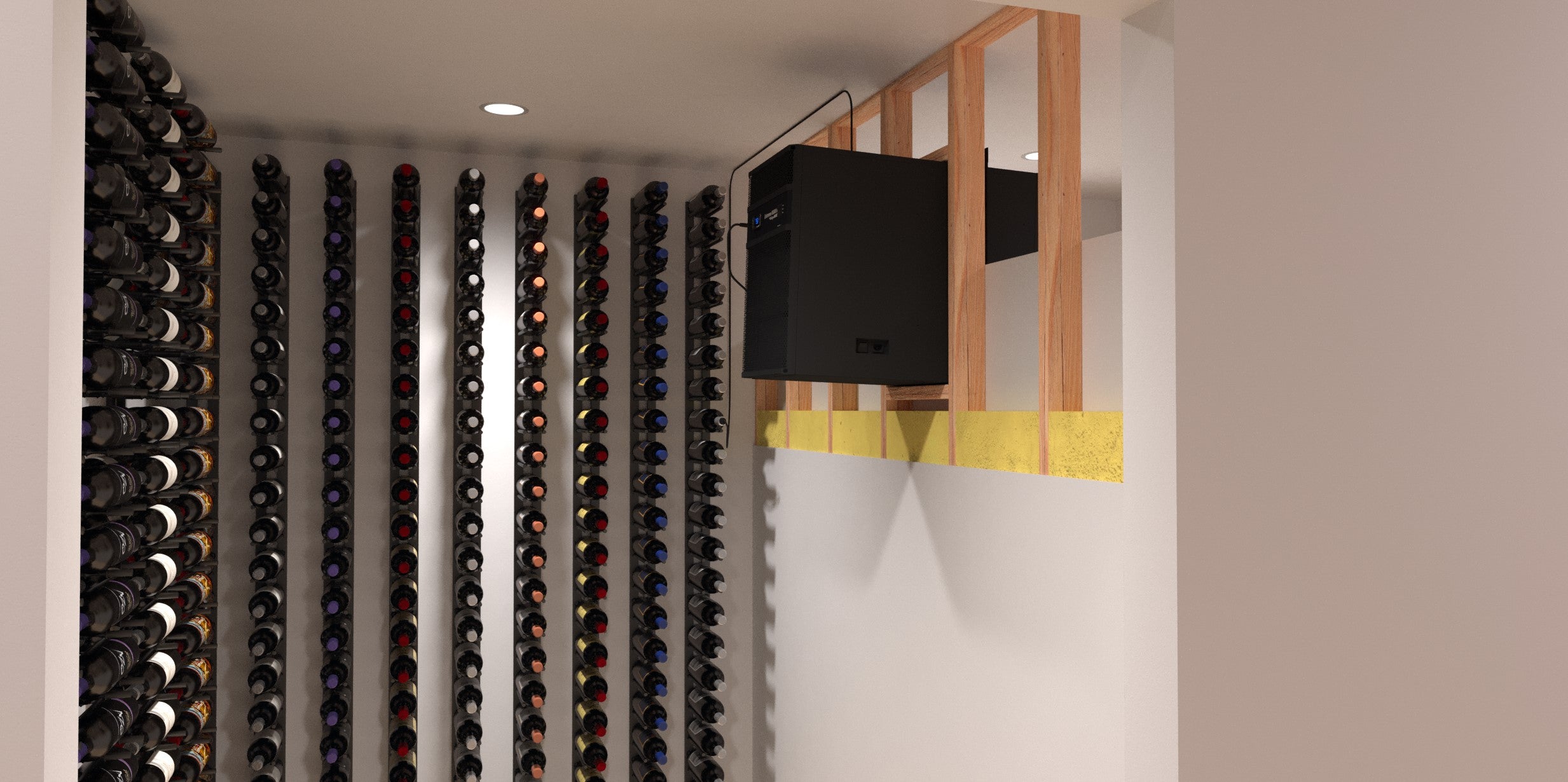

WhisperKOOL Extreme Series can either be wall mounted directly to the outside or can be installed as a ducted system.
If Ducting is chosen, a Remote Thermostat Panel is required and must be purchased at the same time as the cooling unit. Remote Thermostat Panels are not sold individually. Remote Thermostat Panel is required when the cooling side is being ducted.

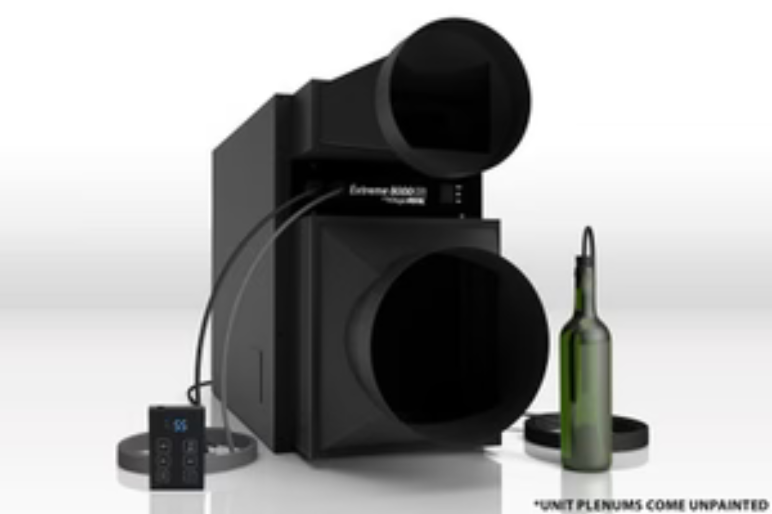

Ducting options
There are several ducting configurations that can be applied, however, you don't need to use ducting, you can mount unit directly in the wall without ducting. If ducting to the outside then please request the Exterior Grill option.
Note: Do not exceed a total of 25’ for each length of ductwork run and a total of 50’ combined for both the supply and return lengths.
TECHNICAL SPECS
| Model | 3500 tiR | 5000 tiR | 8000 tiR |
| Cellar Size | 800 cu. ft. | 1250 cu.ft. | 2000 cu.ft. |
| BTU/h (85°F condenser air intake temperature) |
2688 | 3794 | 5760 |
| CFM | 256 | 256 | 333 |
| Dimensions | 39.5”L x 22.5”H x 14.25”W (w/ duct plenums) |
39.5”L x 26”H x 14.25”W (w/ duct plenums) |
|
| Refrigerant | R-134a | ||
| HP | 1.05 | 1.5 | 2.23 |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) | ||
| Weght (LBS) | 115 | 150 | |
| Amps | 9 (running amps) | 10 (running amps) | |
| Duct Size | 8” Return • 8” Supply (evaporator and condenser) | 10” Return • 8” Supply (evaporator & condenser) | |
| Drain Line | 1/2” ID clear plastic tubing (not provided) | ||
| Installation | Can be installed up to 25 duct feet away from cellar. | ||

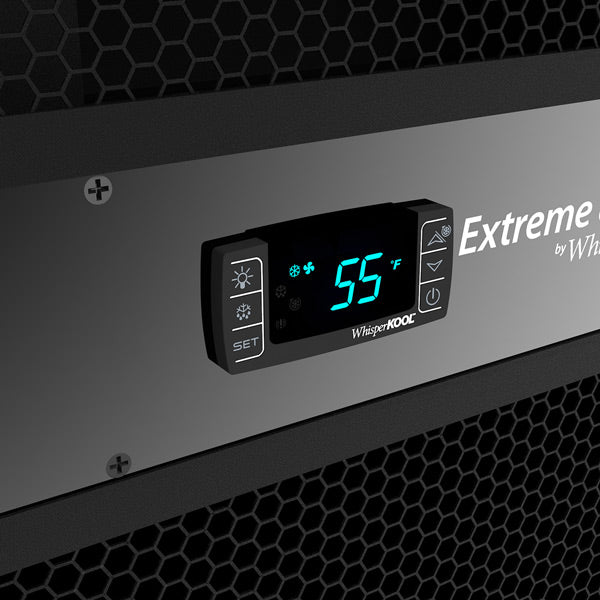

| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) | ||
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature | ||
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.
