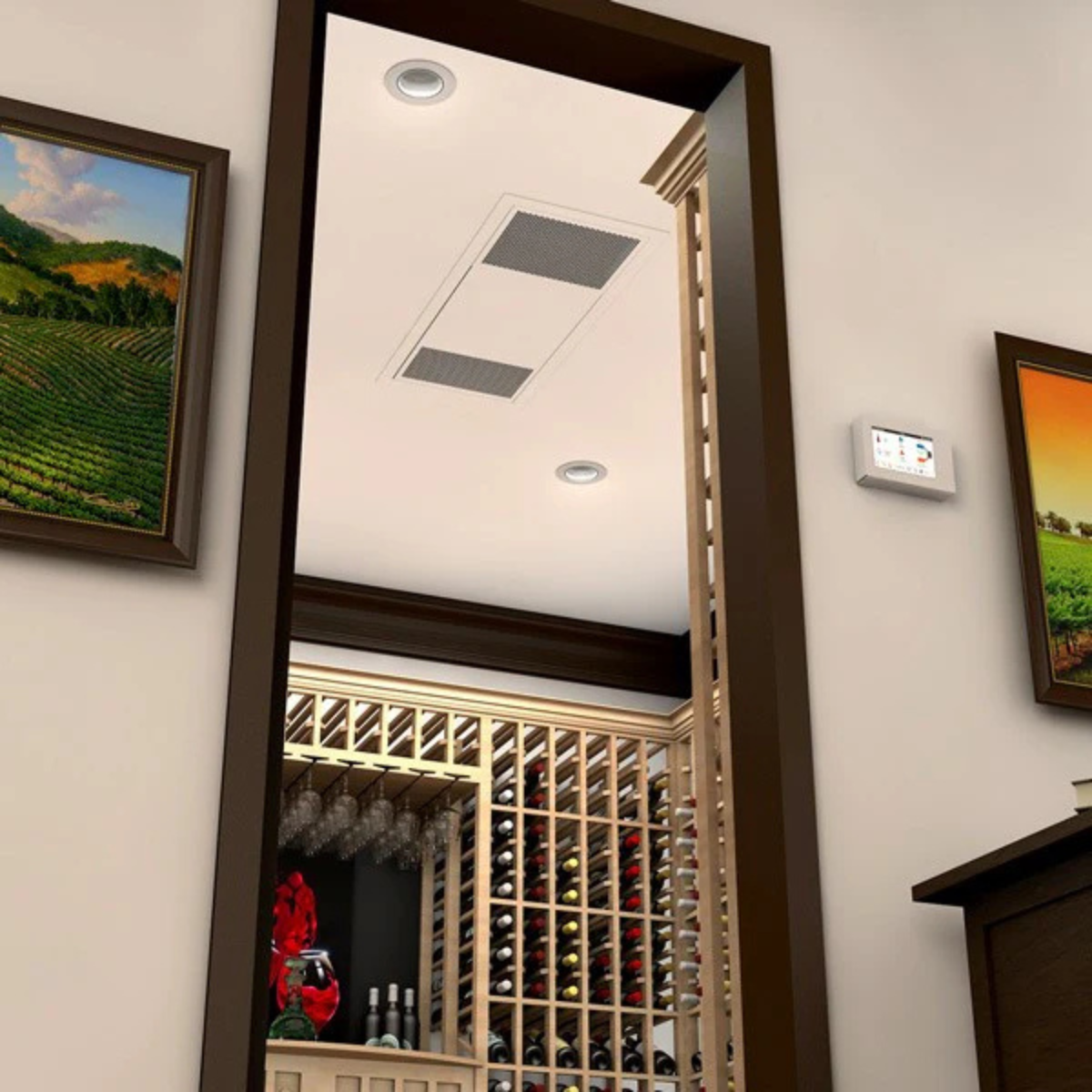

WhisperKOOL Ceiling Mount 4000 Wine Cellar Cooling System

The Ceiling Mount Split 4000 system can accommodate cellars approx. 1000 cubic feet.

• Virtually silent operation

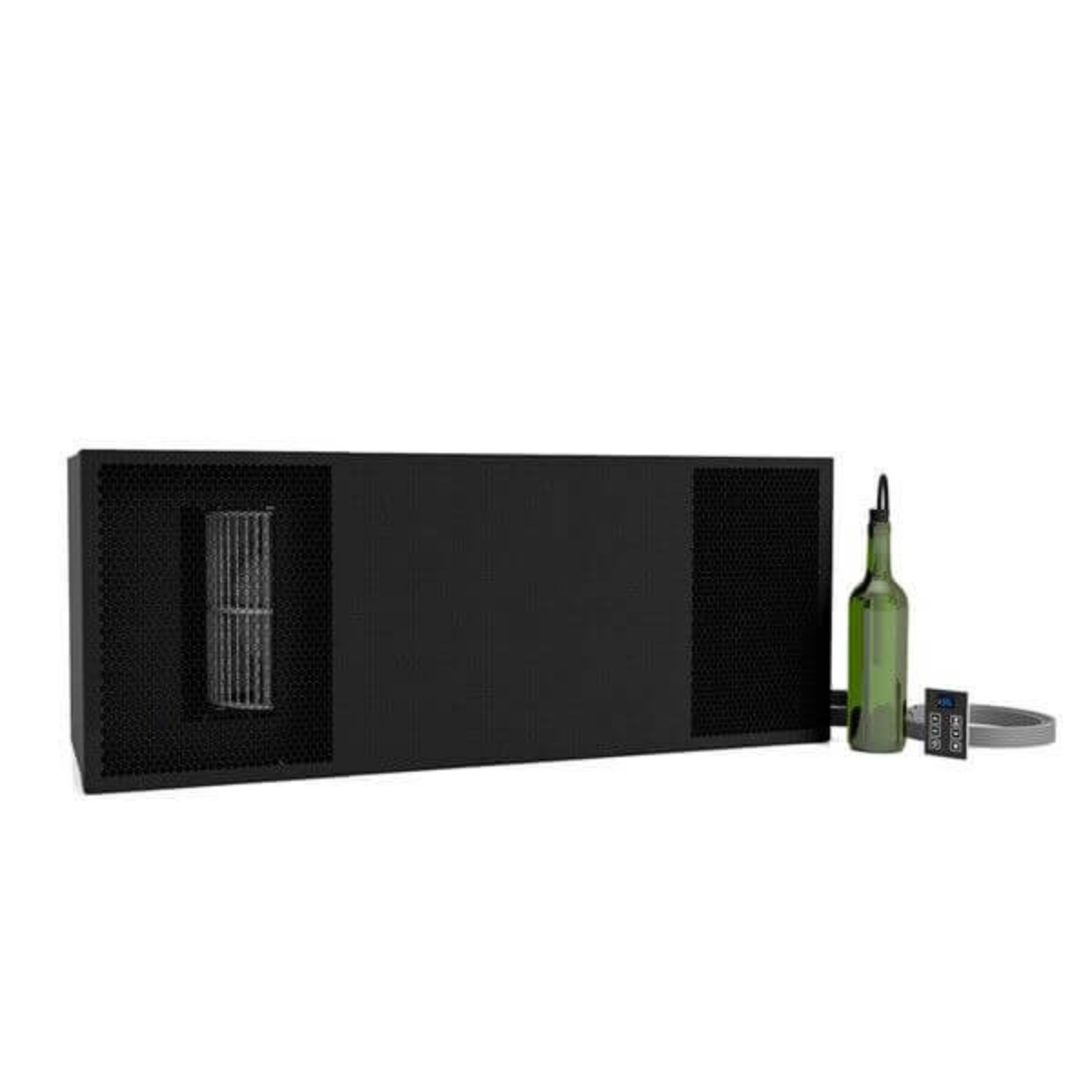

• Liquid bottle probe
• Humidity control
• Alarm options
• 55°F temperature delta
• 220V Condenser can be placed outdoors

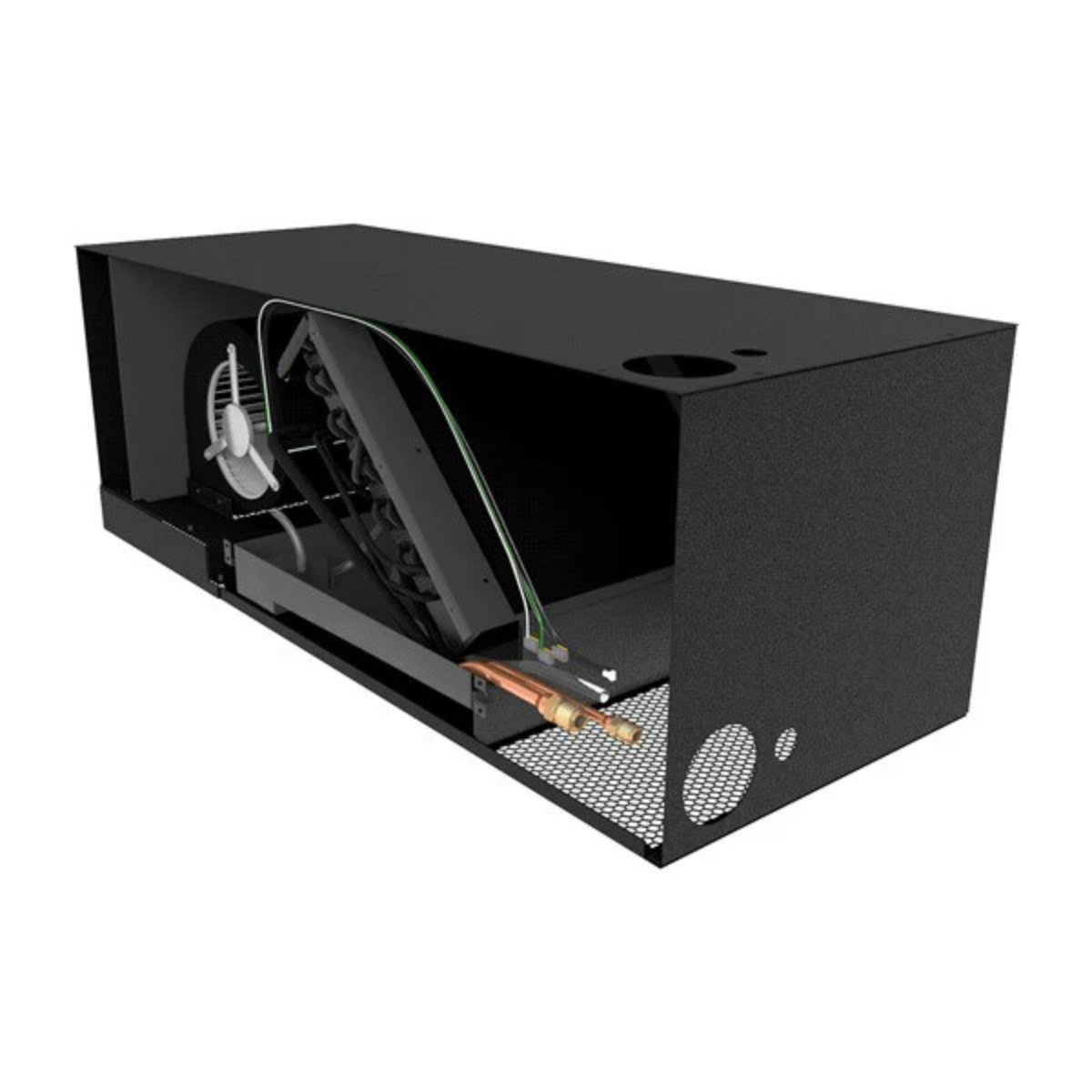

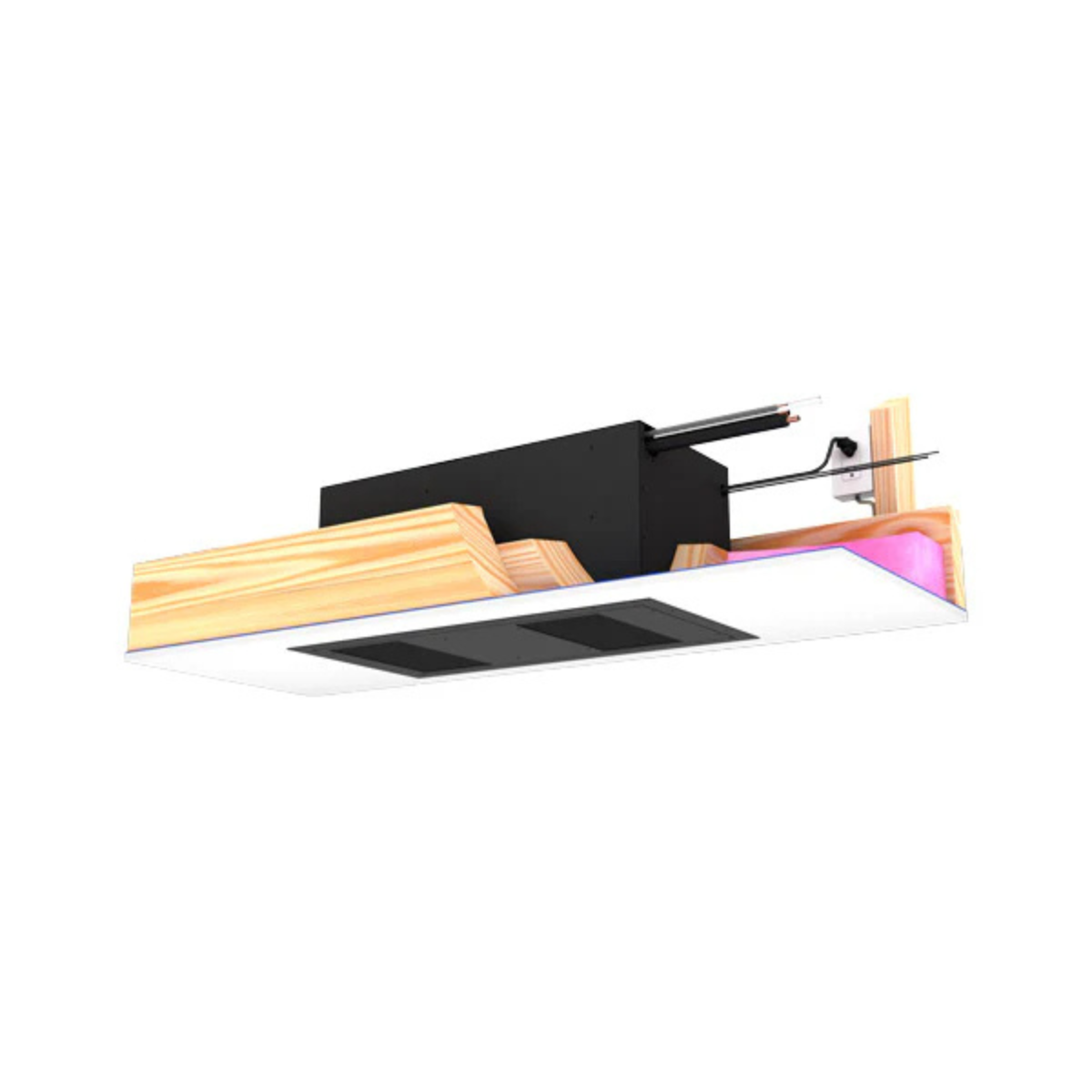

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field. The redesign includes e-coated duramax evaporator coils which will improve system performance, and a new looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

Designed & Assembled in California

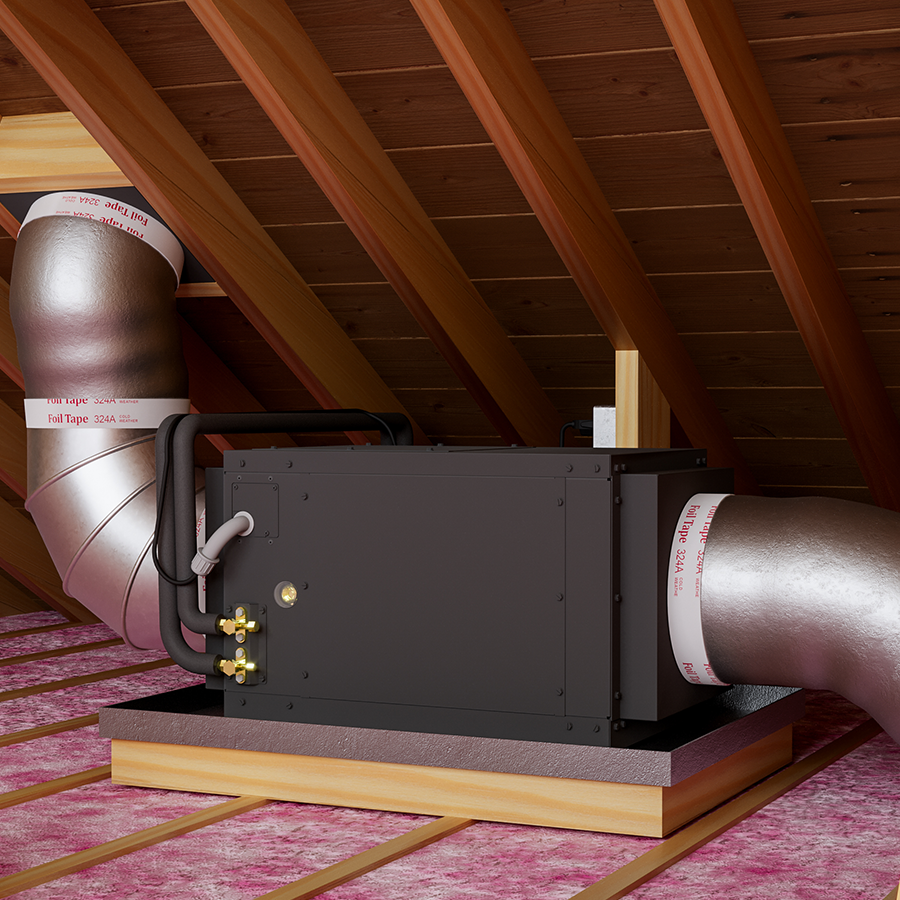

Split Systems “split” the cooling system in two, with the evaporator inside the cellar and the condenser being placed nearby.  Placing the condenser in a remote location keeps the wine cellar quiet and vibration-free.

Dimensions:

Evaporator: 35.75" L x 14.5 "D x 12.75" H

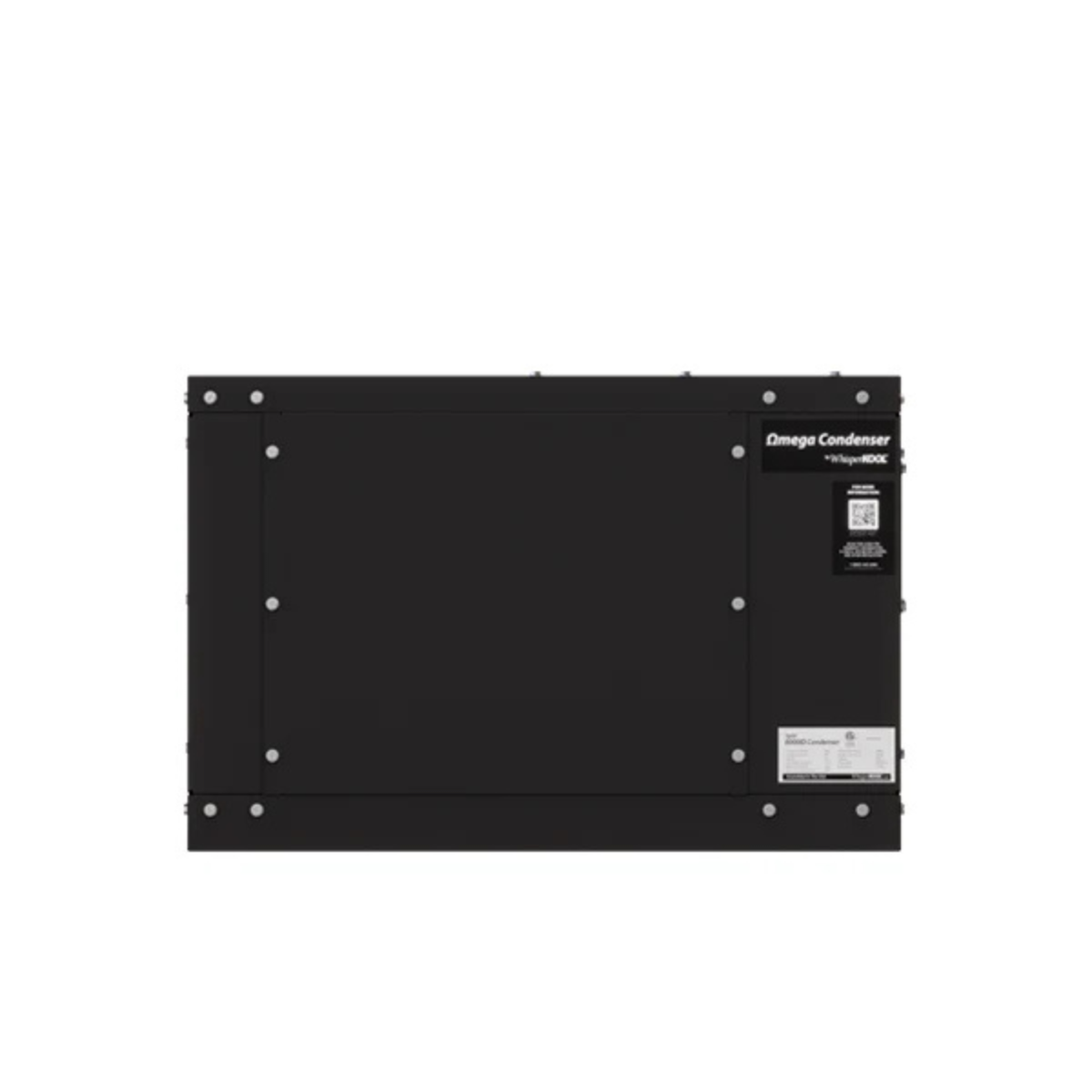

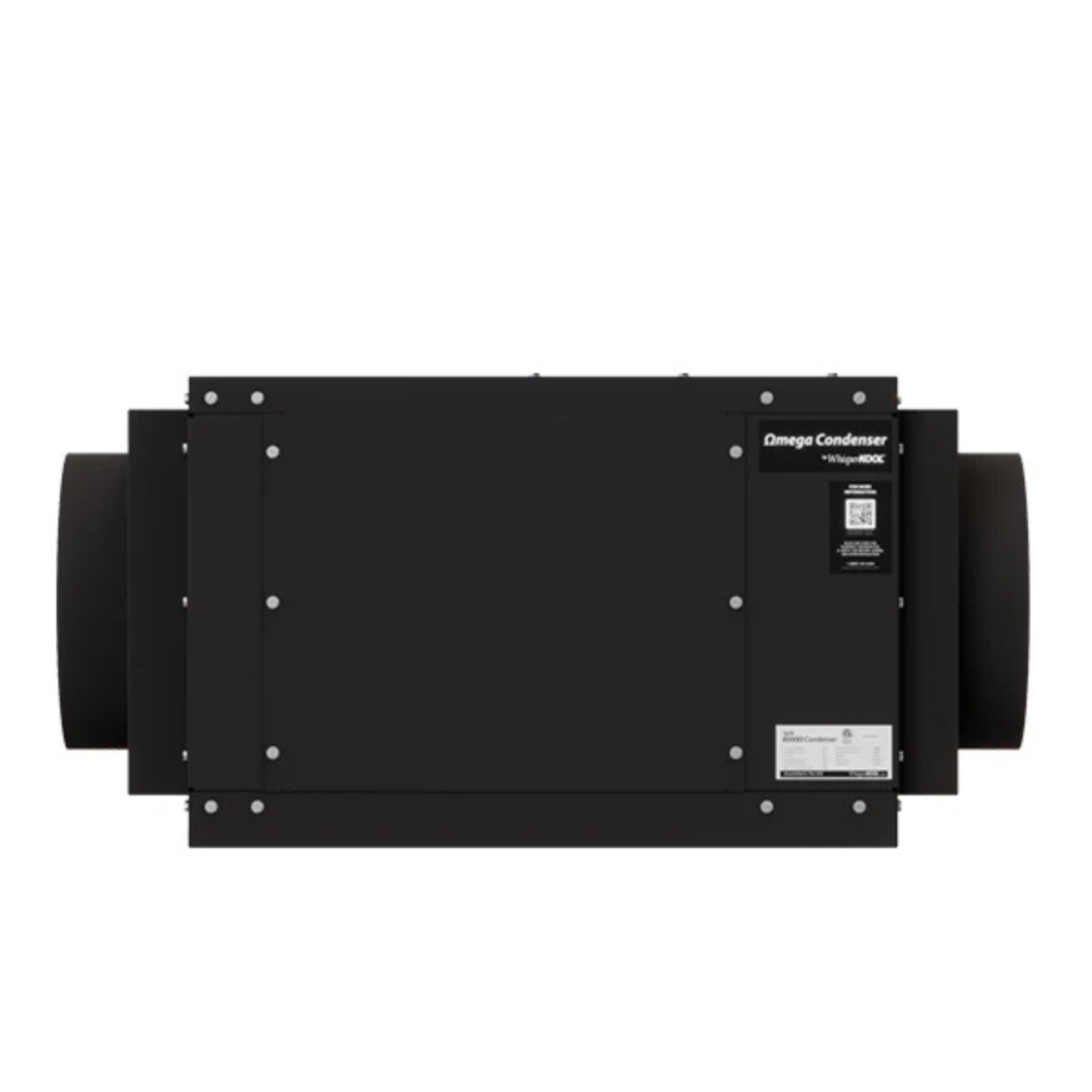

Condenser: 31.18"L x 10.75"W x 21.18" H

Lineset:

Suction: 1/2" OD (5/8" greater than 50ft)
Liquid: 1/4" OD

Drainline:

1/4” ID clear plastic tubing

24Volt

For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra and  might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.

Warranty Check List – R134a Products
Warranty Check List – R404a Products

Warranty Check List
Warranty

Please make sure you complete the warranty check list to ensure your warranty is active.

A limited 2-year product/5-year compressor warranty is offered with all split system cooling units at the date of purchase.
