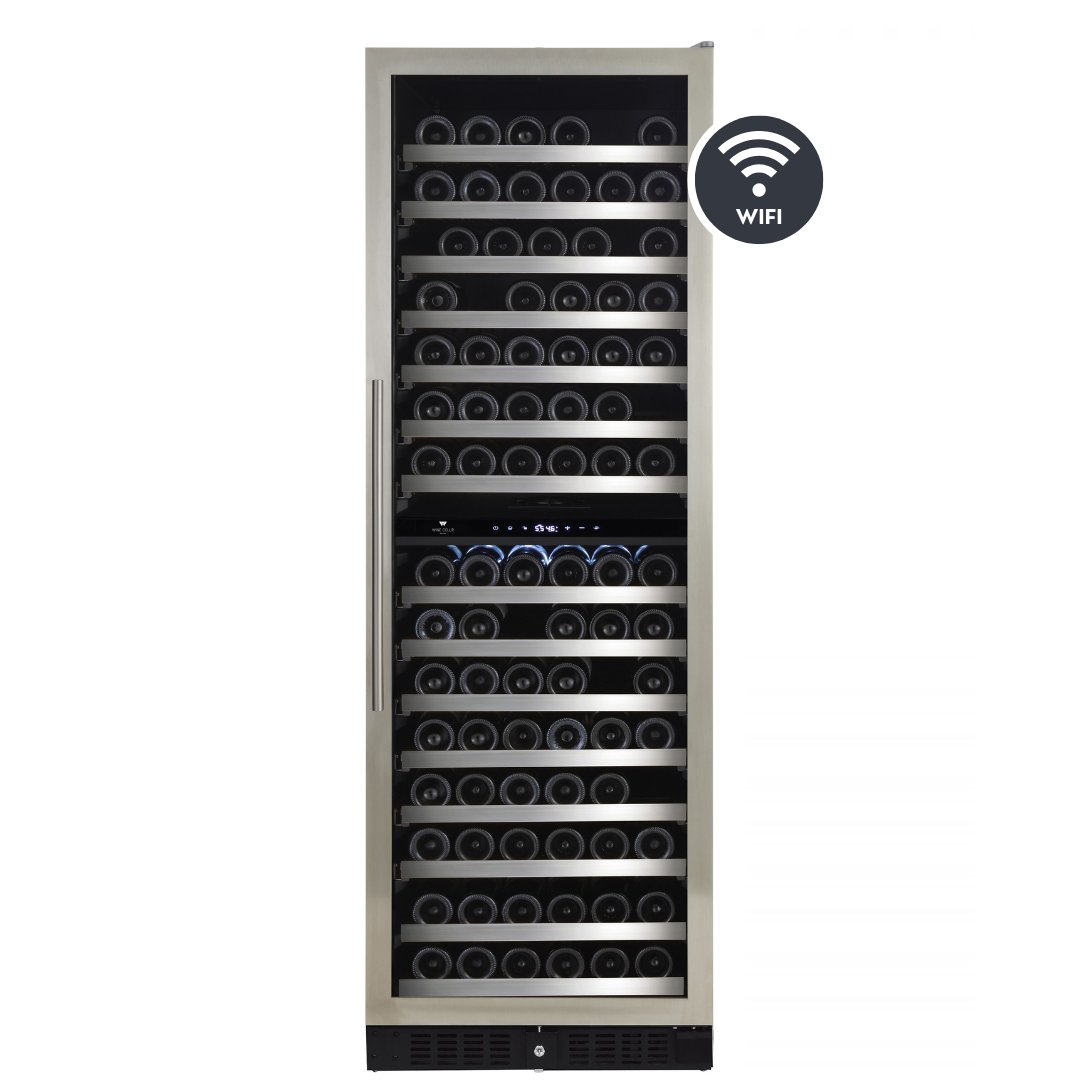

Wine Cell'R: 166 Bottles- Dual Zone - Reversible Door WC166SSDZ6
Description
COLLECTION DIAMOND
This 2 zones built-in cellar is equipped of an electronic control on the inside and one of the quietest compressors on the market. Sliding shelves mounted on ball-bearings enable you to see all the bottles. New features include door alarm and LED lighting.
Technical Sheet: WC166SSDZ6_EN
- Built-in Cellar
- 166 Bottles
- 13 sliding shelves plus 2 half shelves
- Inox door/Anti-UV glass
- EMBRACO Compressor
- Dual Zone
- Door Alarm
- LED lighting
- Display shelf included
- R600 technology means less noisy and more energy efficient
- 70"H x 23 1/2"W x 27 7/8"D
The cabinet comes standard as Right Hinge, but can be changed to Left Hinge on site.
There is a charge for us to make the change.
Additional Information
Wine CellR Cabinets
Great for catering professionals or the new wine connoisseur, Wine CellR built-in or free-standing wine cabinets are practical, cost effective cabinets.
Features on most cabinets unless indicated otherwise:
- Built in or Free standing climate controlled cooler.
- Digital Temperature Display C° / F°
- Black finish on sides of cabinet
- Interior LED light
- Tempered double pane glass door, stainless steel trim
- Most cabinets have reversible doors unless specifically indicated per cabinet.
- Min 5 ° C - max 22 ° C on most single zone cabinets with Dual Zone max of 19 °C

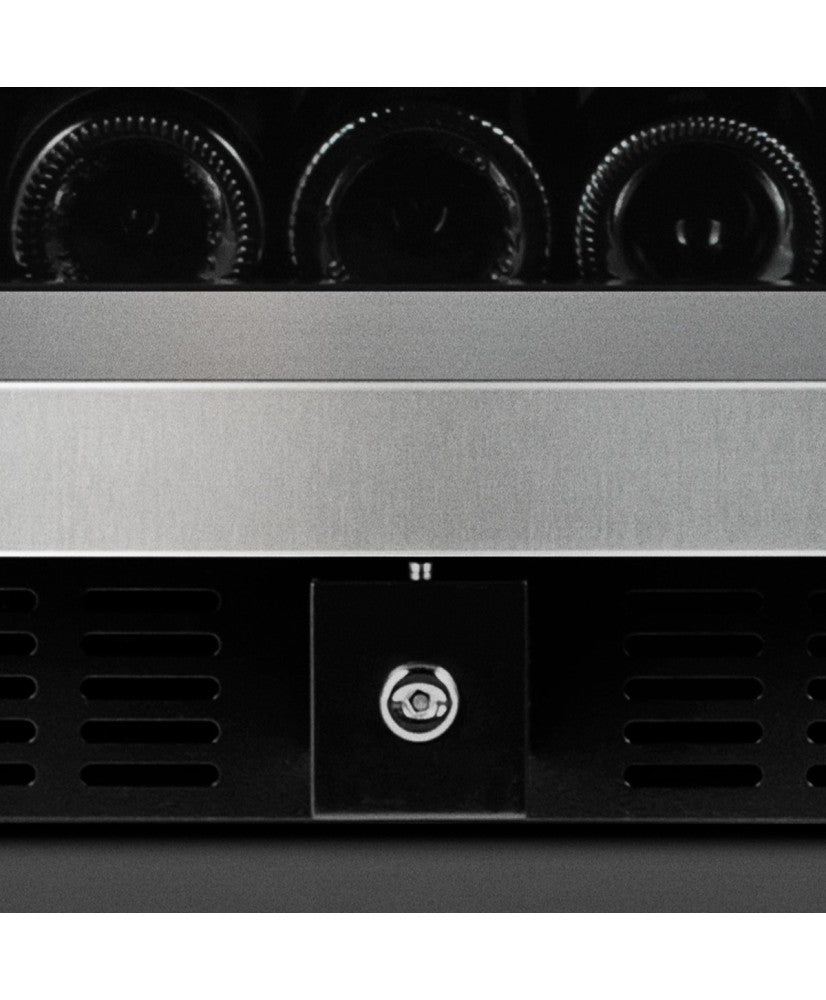

- Security Lock
- Charcoal Filter in most units (Eg. not in the 18 BK)
- 115V / 60HZ
- Cooler: R134a
- UL/CSA ETL Approved
HINGE ORIENTATION - Most models are being changed to a reversible door. Standard hinge will be on the right when looking at the front of the cabinet. The door swing can easily be changed on site to left hinge. Should you wish Rosehill to change the hinge orientation prior to delivery, there will be a $50 charge.
The enclosure cut out needs only to be slightly larger than the dimensions of the cabinet to slide into space if being built in. Please note, the Wine Cell"R wine cabinets are NOT designed to sit flush with surrounding cabinetry. The door has to remain outside the enclosure to allow opening. (It’s not a zero clearance hinge – you need about ½” or so to allow the door to open. )
If your cabinet is delivered with WHITE GLOVE SERVICE - please see below.
| Delivery indicated is for white glove main floor delivery unless otherwise specified. What may change your shipping cost?
Delivery appointments are scheduled within a 4-hour window between the hours of 8 a.m. to 5 p.m. Monday through Friday. If you require a more specific time delivery or Saturday delivery (not available everywhere), additional charges may apply. There are no deliveries on Sunday or holidays. Fuel surcharge will be included in rate quoted. Additional Charges If the cabinet is NOT being delivered to first floor then additional delivery charges will apply to the prices indicated online. Additional delivery fees may be assessed for stair carries. Long carries are defined as distances greater than 100' from where the truck parks to the front door of the delivery site. Any distance over 100' will be assessed an additional rate in increments of 50'. If local delivery or safety conditions considerations warrant the use of an additional person the additional charges will apply & will be considered at time of quote. Additional delivery fees may be required if you are located outside a regular delivery service area or major urban area. Receiving the cabinet The delivery man may need to remove the cabinet from its packaging prior to entry to your home. Please ensure you inspect the packaging as indicated below prior to uncrating. The cabinet is supposed to be leveled upon delivery, however, we find that this area is often overlooked by the delivery staff and often not needed. If this is important to you, then you will want to have a level on hand and guide the delivery people to ensure the cabinet is level. |
Warranty
- 2 year warranty parts & labor (on most models)
- 3 years on compressor
Wine CellR Cabinet Specification Sheets:
WC18 FGBK5
WC26 SBDZ5
WC26 SSTDZ5
WC32 FGB5
WC34 PLSZ5
WC34 PLSZ
WC38 SSTBC5
WC46 FGDZ5
WC46 SSTDZ5
WC46 SSTSZ5
WC46 SBDZ5
WC54 SSTBC5
WC94 FGB5
WC152PLBC
WC166 SSDZ5
WC181 SSSZ5
WC194 FGB5
If your Wine CellR is equipped with the Silent Mode – Please see instructions.
Wine CellR Instruction Manuals
Instruction manual for WC34PLSZ5, WC38SSTBC5, WC46PLSZ5 and WC46PLDZ5
Instruction manual for WC26SSTDZ5, WC46SSTSZ5, WC46SSTDZ5, WC54SSTBC5, WC166SSDZ5 and WC181SSSZ5
Instruction manual for WC18FGBK5, WC32FGDZ5, WC46FGDZ5, WC94FGB5 and WC194FGB5

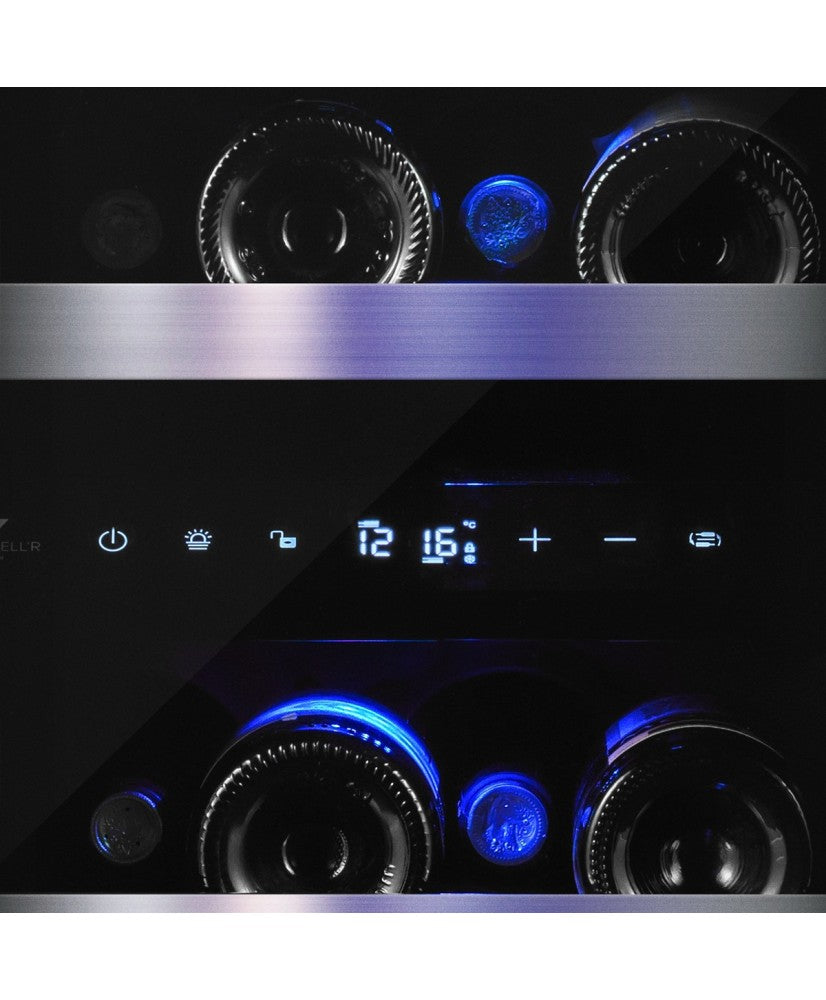

If you can’t change the temperature on your Wine CellR cabinet, you may have “locked” the cabinet by holding down on the temperature adjustment buttons for too long. To unlock the controls you need to hold and press the '' - '' minus button for 3-5 seconds until your temperature number changes to a letter. This letter has to be '' E ''. If not, change it to that letter by pressing either the plus or minus button until it shows E. Then wait until it goes back to the current temperature display. You can now unlock the panel by pressing the padlock button and then set it to your desired temperature. After a few minutes it will cool it down to what you set it to.
