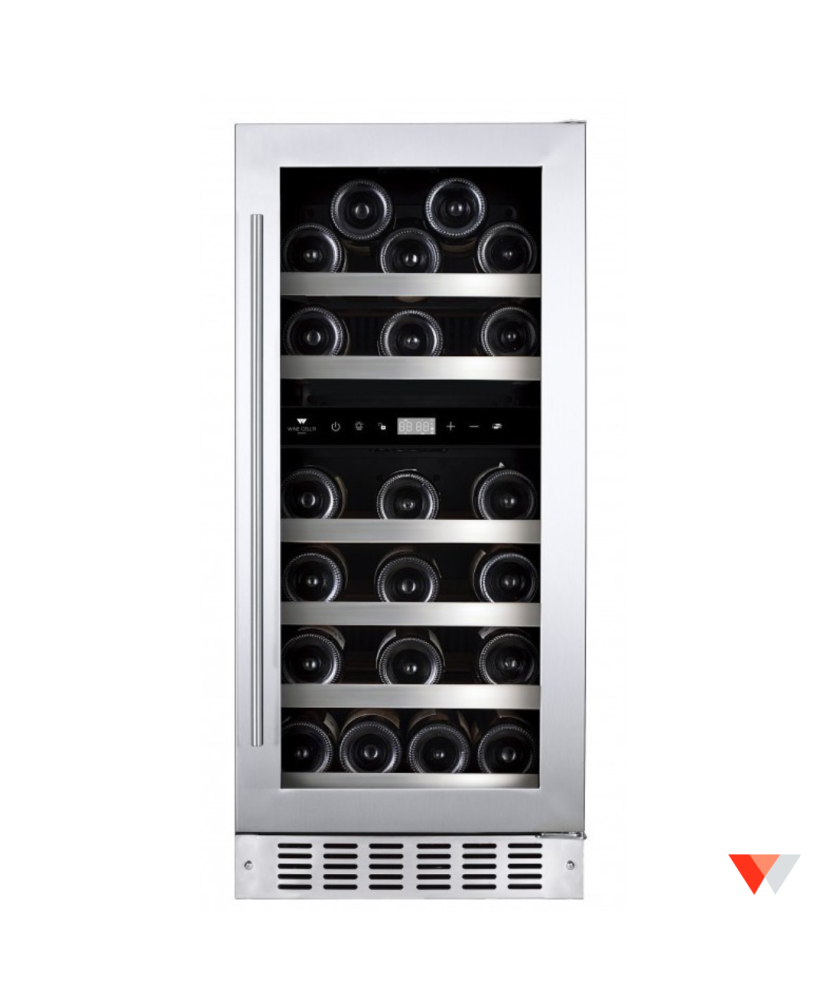

COLLECTION DIAMOND

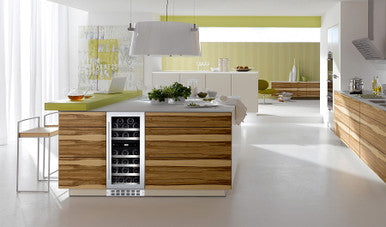

With its sober and elegant design, this 26 bottles* dual zones cellar is a very elegant addition to any interior. Built-in and freestanding with sliding shelves mounted on ball bearings. Its side LED strips will highlight your most beautiful bottles and make your wine cellar a key element in the design of any room.  Also equipped with a door alarm, it will notify you, by the emission of a ”beep” sound, if the door is not closed properly.

Technical Sheet: WC26SSTDZ5_EN

• 26 Bottle Capacity (750mL)
• Dual temperature zone
• 5 + 1 half shelves
• Glass door with Stainless Steel
• Reversible door
• W 15” X H 33 ¾” X D 22 ½”

Wine CellR Cabinets

Great for catering professionals or the new wine connoisseur, Wine CellR built-in or freestanding wine cabinets are practical, cost-effective cabinets.

Features on most cabinets unless indicated otherwise:

• Built in or Free standing climate controlled cooler.
• Digital Temperature Display C° / F°
• Black finish on sides of cabinet
• Interior LED light
• Tempered double pane glass door, stainless steel trim
• Most cabinets have reversible doors unless specifically indicated per cabinet.
• Min 5 ° C - max 22 ° C on most single zone cabinets with Dual Zone max of 19 °C
• Security Lock
• Charcoal Filter in most units (Eg. not in the 18 BK)
• 115V / 60HZ
• Cooler: R134a

• UL/CSA ETL Approved

HINGE ORIENTATION - Most models are being changed to a reversible door.  Standard hinge will be on the right when looking at the front of the cabinet.  The door swing can easily be changed on site to left hinge.  Should you wish Rosehill to change the hinge orientation prior to delivery, there will be a $50 charge.

The enclosure cut out needs only to be slightly larger than the dimensions of the cabinet to slide into space if being built in.  Please note, the Wine Cell"R wine cabinets are NOT designed to sit flush with surrounding cabinetry.  The door has to remain outside the enclosure to allow opening. (It’s not a zero clearance hinge – you require about ½” or so to allow the door to open. )

Warranty:

• 2 year warranty parts & labor (on most models)
• 3 years on compressor

Wine CellR Cabinet Specification Sheets:

WC18 FGBK5
WC26 SBDZ5
WC26 SSTDZ6
WC32 FGB5
WC34 PLSZ5
WC34 PLSZ
WC38 SSTBC5
WC46 FGDZ5
WC46 SSTDZ5
WC46 SSTSZ5
WC46 SBDZ5
WC54 SSTBC5
WC94 FGB5
WC152PLBC
WC166 SSDZ5
WC181 SSSZ5
WC194 FGB5

If your Wine CellR is equipped with the Silent Mode – Please see instructions.

Wine CellR Instruction Manuals

Instruction manual for WC34PLSZ5, WC38SSTBC5, WC46PLSZ5 and WC46PLDZ5

Instruction manual for WC26SSTDZ5, WC46SSTSZ5, WC46SSTDZ5, WC54SSTBC5, WC166SSDZ5 and WC181SSSZ5

Instruction manual for WC18FGBK5, WC32FGDZ5, WC46FGDZ5, WC94FGB5 and WC194FGB5

If you can’t change the temperature on your Wine CellR cabinet, you may have “locked” the cabinet by holding down on the temperature adjustment buttons for too long.  To unlock the controls you need to hold and press the '' - '' minus button for 3-5 seconds until your temperature number changes to a letter. This letter has to be '' E ''. If not, change it to that letter by pressing either the plus or minus button until it shows E. Then wait until it goes back to the current temperature display. You can now unlock the panel by pressing the padlock button and then set it to your desired temperature. After a few minutes it will cool it down to what you set it to.
