Wine Guardian CS050 Cooling System
Description

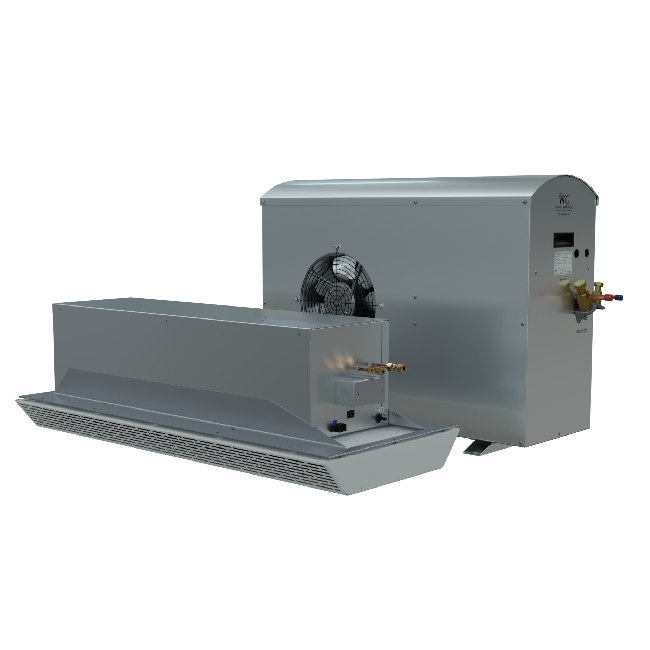

The CS050 Ceiling Mounted Wine Cooling System is a ductless split wine temperature control unit designed specifically for wine wall projects complete with outdoor condensing unit, low ambient protection and controls. Its grille is designed to integrate completely flush with the ceiling, ensuring no bulky equipment is visible in the wine wall. This system can cool wine walls down to both long-term storage temperatures and serving temperatures. The maximum capacity for this system is 4,300 BTU/H.
Wine Guardian CS050 - ceiling mount split system for cellars up to roughly 1,500 cubic feet.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Additional Information
Wine Guardian ceiling mount split cooling system offers a low profile solution for ceiling mount applications. Installed in 12” or 16” joist spacing, with as low as 10” joist height. Heavily insulated units are both quiet and energy efficient. Operating as low as 53 DBA.
The ceiling mount cooling units are an ideal option when traditional wall mount is not an option or not desired.
Electric heater option if the ceiling above wine cellar is a colder space.
Aluminum construction to be lightweight and corrosion resistant.
Easy to remove and clean condensate pan.
Low profile Diffuser (grill) can be painted to match ceiling - diffuser, roughly 3" exposed in cellar.
Quality Wine Guardian parts and controller.
Ease of installation with mounting hooks for one person installation.
TECHNICAL SPECS
|
Model |
CS050 (Wine Wall) |
|
Capacity |
1000- 4050 BTU |
|
BTU Max |
3645 |
|
BTU min |
1000 |
|
Volume |
250 – 2200 ft³ |
|
Volume max |
2200 |
|
Volume min |
250 |
|
Length |
44.19" (evaporator) |
|
Width |
12.44" (evaporator) |
|
Electrical |
115/1/60 |
|
Line Frequency |
60 Hz |
|
Height |
11.43" (evaporator) |
|
Weight |
43 lbs |
|
Ductless/Ducted |
Ductless |
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of original invoicing assuming NORMAL USE AND SERVICE.
Wine Guardian Warranty Information
Standard Wine Guardian Warranty Information
Wine Guardian Extended Warranty Information
