Wine Guardian DS050 1/2 Ton Ducted Split Wine Cellar Cooling System
Description
The DS050 1/2 Ton split wine cellar cooling system with ductable fan-coil is ideal for medium to large residential and commercial wine rooms and wine cellars.
The DS050 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 5,812 BTU/H (1.70 Kilowatts).
Designed for Wine Cellars from: 800 - 2000 cu.ft.
Please contact us for assistance in calculating your ductwork requirements.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
Additional Information
The separate evaporator and condensing system for the Wine Guardian Split system cellar cooler allows for very quiet operation and a wine cellar climatized environment that is virtually vibration free. Wine Guardian offers superior air distribution and climate control. Like all Wine Guardian systems, the Split is designed with easy access to all components for any servicing needs.

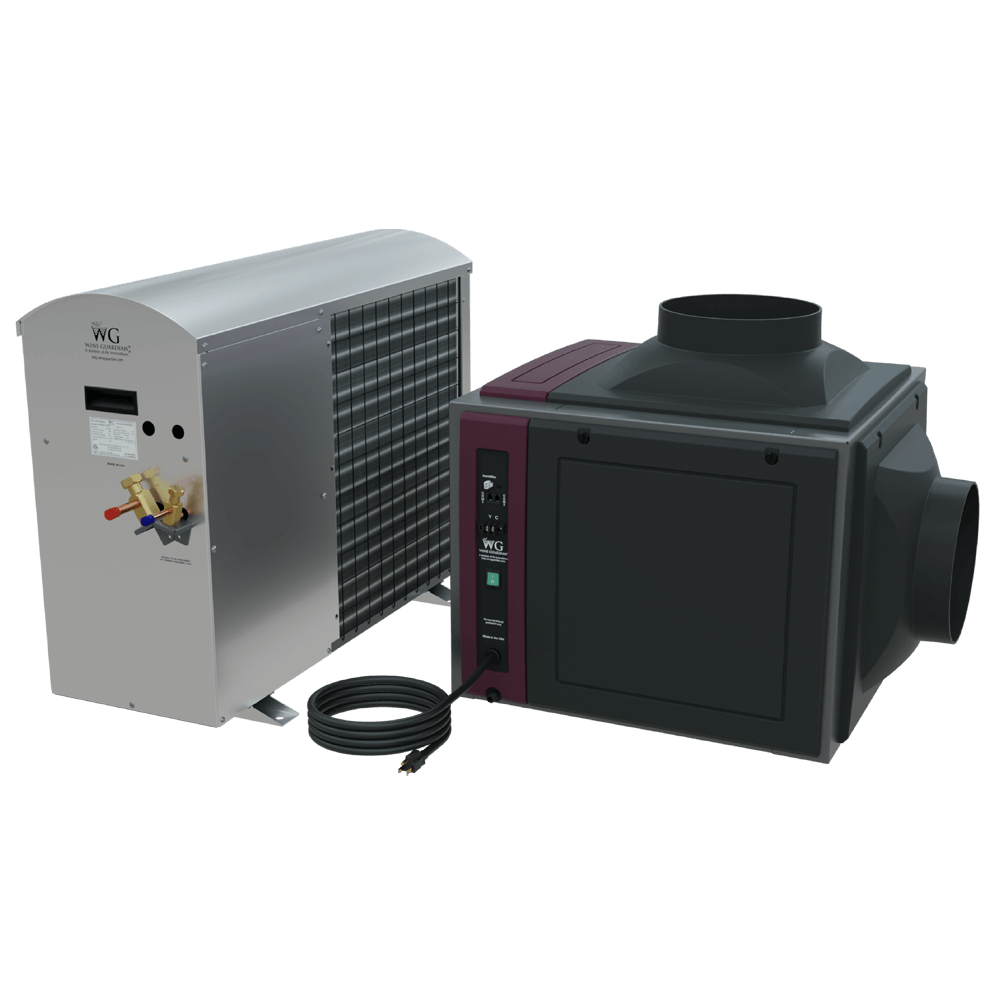

Wine Guardian Split System Wine Cellar Cooling Unit Includes:
- Condensing Unit & Evaporator (fan coil)
- Removable multi-panel design - provides easy service access
- (5) supply air openings - for installation flexibility
- One Return and One Supply Duct Collar are included for the evaporator side.
- High Static Fans for ductwork (of extended lengths - 25' to 50' depending on system)
- Humidity & temperature control in one device with alarm system
- ETL certified for UL and CSA standards
- Suitable for outdoor applications
- Made in the USA
TECHNICAL SPECS
|
Model |
DS050 |
|
Line Frequency |
60 Hz |
|
Capacity |
2700 – 6458 BTU |
|
Volume |
650 – 3000 ft³ |
|
Length |
23.8" |
|
Width |
25" |
|
Height |
19.7" |
|
Weight |
54 lbs |
|
Electrical |
115/1/60 |
Shipping Information
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra might be extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of original invoicing assuming NORMAL USE AND SERVICE.
PRODUCT MANUALS
Wine Guardian Split System Owner's Manual (OLD MODEL #'s listed)
Wine Guardian Split System DS025 and WGS40 Guide
Wine Guardian Split System Quick Start Guide
Wine Guardian Split System Data Sheet
Wine Guardian Split System Specifications
Wine Guardian Split System Installation, Operation and Maintenance Guide
Use our Wine Guardian cooling unit calculator to determine the right Wine Guardian for your application.
Get in touch with our design specialists to start building your custom wine cellar today.
